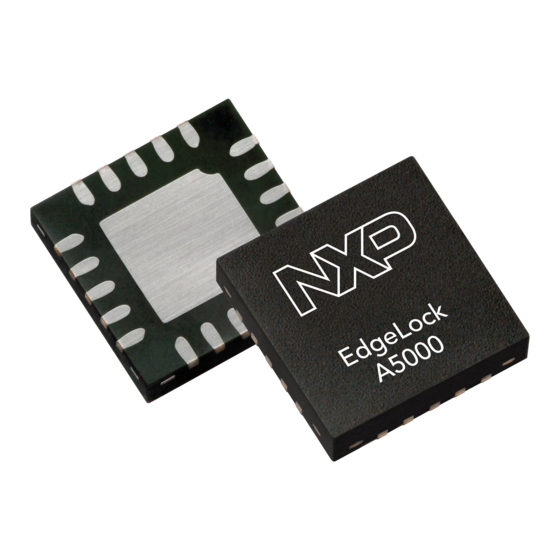

NXP Semiconductors EdgeLock A5000 Application Note

Secure authenticator for electronic anticounterfeit protection using device-to-device authentication
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AN13500
EdgeLock A5000 Secure Authenticator for electronic anti-
counterfeit protection using device-to-device authentication
Rev. 1.0 — 28 March 2022
Document information
Information
Content
Keywords
A5000, mutual authentication, proof of possession
Abstract
This document describes how to leverage A5000 for device-to-device
authentication
Application note
