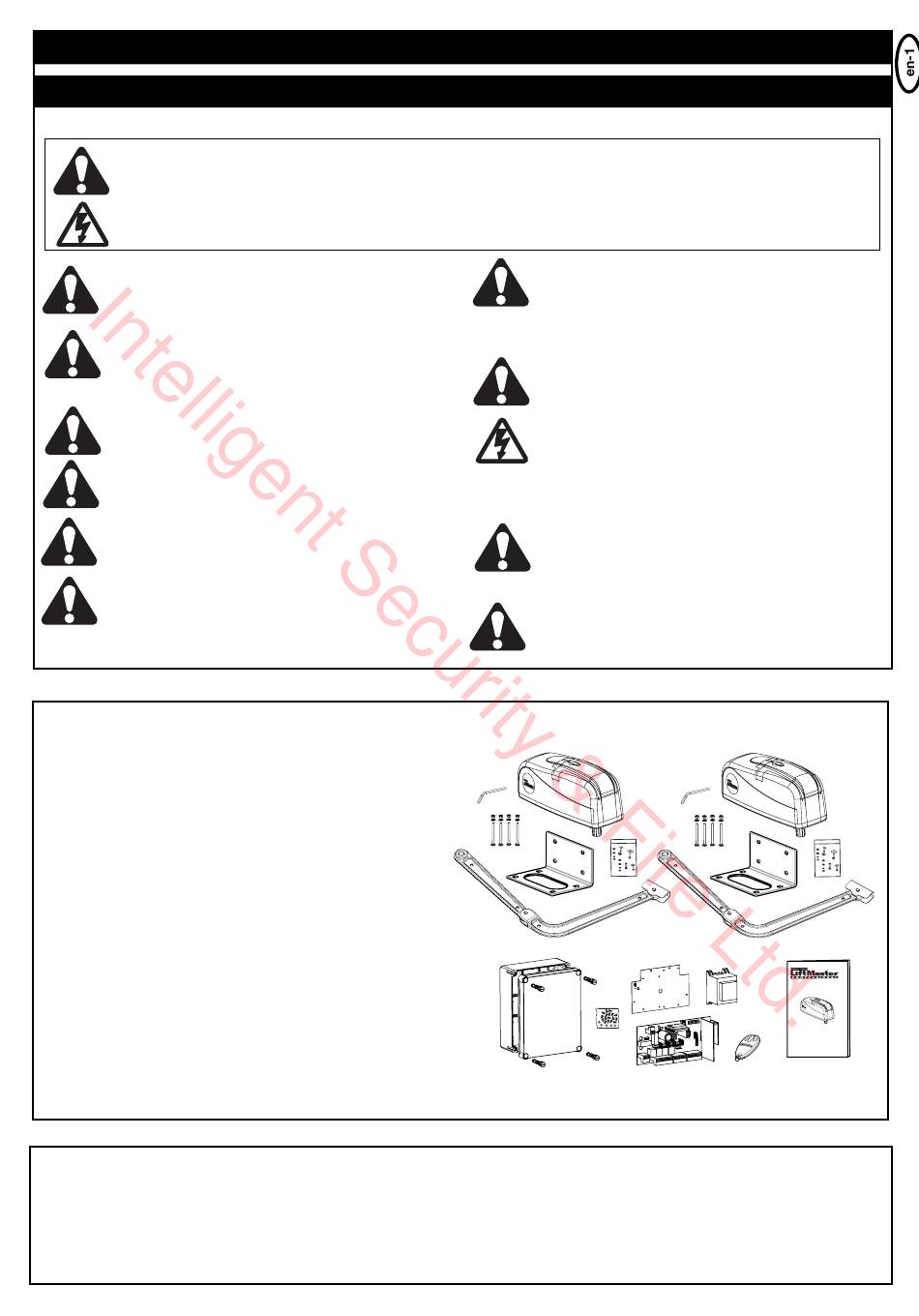

PLEASE START BY READING THESE IMPORTANT SAFETY RULES • SAVE THESE INSTRUCTIONS
This safety alert symbol means "Caution" - failure to comply with such an instruction involves risk of personal injury or
damage to property. Please read these warnings carefully.
This gate drive mechanism is designed and tested to offer appropriately safe service provided it is installed and operated in
strict accordance with the following safety rules.
Incorrect installation and/or failure to comply with the following instructions may result in serious personal injury or property
damage.
When using tools and small parts to install or carry
out repair work on a gate exercise caution and do not
wear rings, watches or loose clothing.
Installation and wiring must be in compliance with
your local building and electrical installation codes.
Power cables must only be connected to a properly
earthed supply.
Any entrapment possibility by the moving wing
between wing & walls must be secured with safety
edges or IR-sensors.
Please remove any locks fitted to the gate in order to
prevent damage to the gate.
After the installation a final test of the full function of
the system and the full function of the safety devices
must be done.
This drive cannot be used with a gate incorporating a
wicket door unless the drive cannot be operated with
the wicket door open.
CARTON CONTENTS ART200K
Drive motors
Release key
Box for control
Cover for box
Hinges for box
Control
Transformer
Baseplate For Transformer
Remote control
Radio receiver
Radio module
Hardwarebag For Box
Pillar fittings
Gate fittings
Door arm
Hardwarebag
Instructions
Flashing light
Key switch
Photocells
* depending on model resp. available as optional accessory
INSTALLATION CHECKLIST - PREPARATIONS
Check the carton contents and read the instructions carefully. Make sure your gate equipment operates perfectly. The gate must run evenly and
smoothly and must not stick at any point. Remember that the ground level may be several centimeters higher in winter. The gate must be stable
and as free of backlash in order to prevent any unwanted movement. The easier the gate movement the less power is needed by the motor.
Write down any materials you still need and obtain them before starting to install. Heavy-duty plugs, bolts, gate stops, cables, distribution boxes,
tools, etc.
WARNING / ATTENTION
IMPORTANT FITTING AND OPERATING INSTRUCTIONS
2x
2x
1x
1x
4x
1x
1x
1x
1-2x*
1
1x
1x
2x
2x
2x
1x
1x
1x
1x
1x
Frequently examine the installation for imbalance and
signs of wear or damage to cables, hardware and
mountings. Do not use if repair or adjustment is
necessary. Gates which stick or jam must be repaired
immediately. Employ a qualified technician to repair the
gate, never attempt to repair it yourself.
Keep additional accessories away from children. Do not
allow children to play with pushbuttons or remote controls.
A gate can cause serious injuries as it closes.
Disconnect electric power to the system before making
repairs or removing covers.
A disconnecting device must be provided in the
permanently-wired installation to guarantee all-pole
disconnection by means of a switch (at least 3mm
contact gap) or by a separate fuse.
Make sure that people who install, maintain or operate
the gate drive and/or the control board are qualified and
follow these instructions.
Keep these instructions in a safe place so that you can
refer to them quickly when you need to.
The full protection against potential squeeze or
entrapment must work direct when the drive arms are
installed.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ART200K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Chamberlain ART200K

  • Page 1 The full protection against potential squeeze or the wicket door open. entrapment must work direct when the drive arms are installed. CARTON CONTENTS ART200K Drive motors Release key Box for control Cover for box...
  • Page 2: Before You Begin

    AVAILABLE INSTALLATION ACCESSORIES 1. 041ASWG-0482-50 50m roll of installation cable, 6-pole for outdoor use, Laying possible without cable duct with the identical wire colours as motor 2. LA400-JB40E Kit for cable extension of one installation unit. Consists of 12m of cable 6-pole with identical colours, distribution box IP65, cable screw joints and fastening material 3.
  • Page 3: Gate Types

    GATE TYPES The location of the motor installation depends on the type of gate. If the gate stop is on the floor the motor should also be installed as low as possible in order for the gate not to be distorted. Only use frame elements for fastening.With steel gates the fittings should be fastened to the main frame.
  • Page 4: Base Plate

    GATE FITTING With steel gate the fastenings should either be welded on or drilled through completely. If drilling then attach large washers or a plate to the back of the frame.With wooden gates the gate frame has to be drilled through completely where the fittings are to be fastened. Attach reinforcement plate on the outside and inside of the gate in order to prevent wood from giving and the connection to become loose.
  • Page 5 SWITCHES, CAMS AND RIGHT ADJUSTMENT RIGHT ADJUSTMENT There is a small switch operated by a cam under the operator’s Gate closed: switch free cover. The cam rotates simultaneously to the operator and pushes Gate at approx. 45°: switch fully pushed (cam operates the switch temporarily.
  • Page 6: Recommended Procedure

    INSTALLATION OF CONTROL BOX The control consists of several components which are fitted together and are screwed into the box. Precision is important. Complete the electrical installation (wiring, supply etc.) before turning your attention to this point. Find the following parts in the control box: - Remote control 1-2x* - Exterior installation box...
  • Page 7 TECHNICAL DATA OF MOTOR CONTROL: WIRING OF CONTROL / SUMMARY Voltage 230VAC a) start with still dead 230Volts supply cable on the left side of the box. Transformer 230/24VAC minimum60VA b) Attach cable eye to ground wire. Then connect ground wire to base Output motor 24VDC max.
  • Page 8: Description Of Push Buttons

    DESCRIPTION FUNCTION DESCRIPTION OF PUSH BUTTONS Connector L 230V supply Connector N 230V supply P1 button to program “simple” mode P2 button to program “individual” mode Battery Connector for a battery kit +/- P3 button to program “Timer to close” 475E + 041ADBL-0115 Description of LED’s (light-emitting diode) Motor MASTER...
  • Page 9: Photocells (Optional)

    To enable the “Automatic Closing” Ω function, the Chamberlain failsafe photocell must be installed. The Chamberlain failsafe system (2-cable system) has small LEDs (light) that can be seen from the outside on both sides to indicate the status of the photocell.
  • Page 10 FLASHING LAMP (OPTIONAL) A flashing lamp can be connected to the control board. It warns MOTOR MOTOR 24V/150mA when the gate is being moved. The flashing light should be fitted as 30VDC MASTER SECOND / LAMP high as possible and in good clear view. The control board emits a constant signal that the lamp converts to a flashing signal.
  • Page 11: Initial Operation Basic Setting

    INITIAL OPERATION BASIC SETTING Proceed step by step. If you are not sure, start again at the beginning. Take sufficient time to make these settings. 1. Are all components required for operation connected? Motors, photocells, safety contact strip, stop switch. 2.
  • Page 12: Completion Of Installation / Programming

    NOTE: If one wing reaches a stop and button P1 is not pressed, then the motor moves towards the stop and stores this position automatically. COMPLETION OF INSTALLATION / PROGRAMMING Once the travel distances are programmed, the remote controls can be programmed as well. (Refer to PROGRAMM / DELETE REMOTE CONTROLS).
  • Page 13: Indication Of The Diagnosis Led

    INDICATION OF THE DIAGNOSIS LED Indication Description Remedy 1x blinking Motor 1 has insufficient connection to control board Green or white cable not wired or badly connected Check terminals precisely. Consider wire lengths 2x blinking Motor 2 has insufficient connection to control board Refer to 1x blinking 3x blinking Limits for motor 2 have not been accepted...
  • Page 14 The optimum location of the aerial is as high as possible in all cases. An appropriate aerial with installation kit can be obtained from Chamberlain as an accessory with the product ref. no. ANT4X-1LM. The gate must follow a slope.
