INSTALLATION

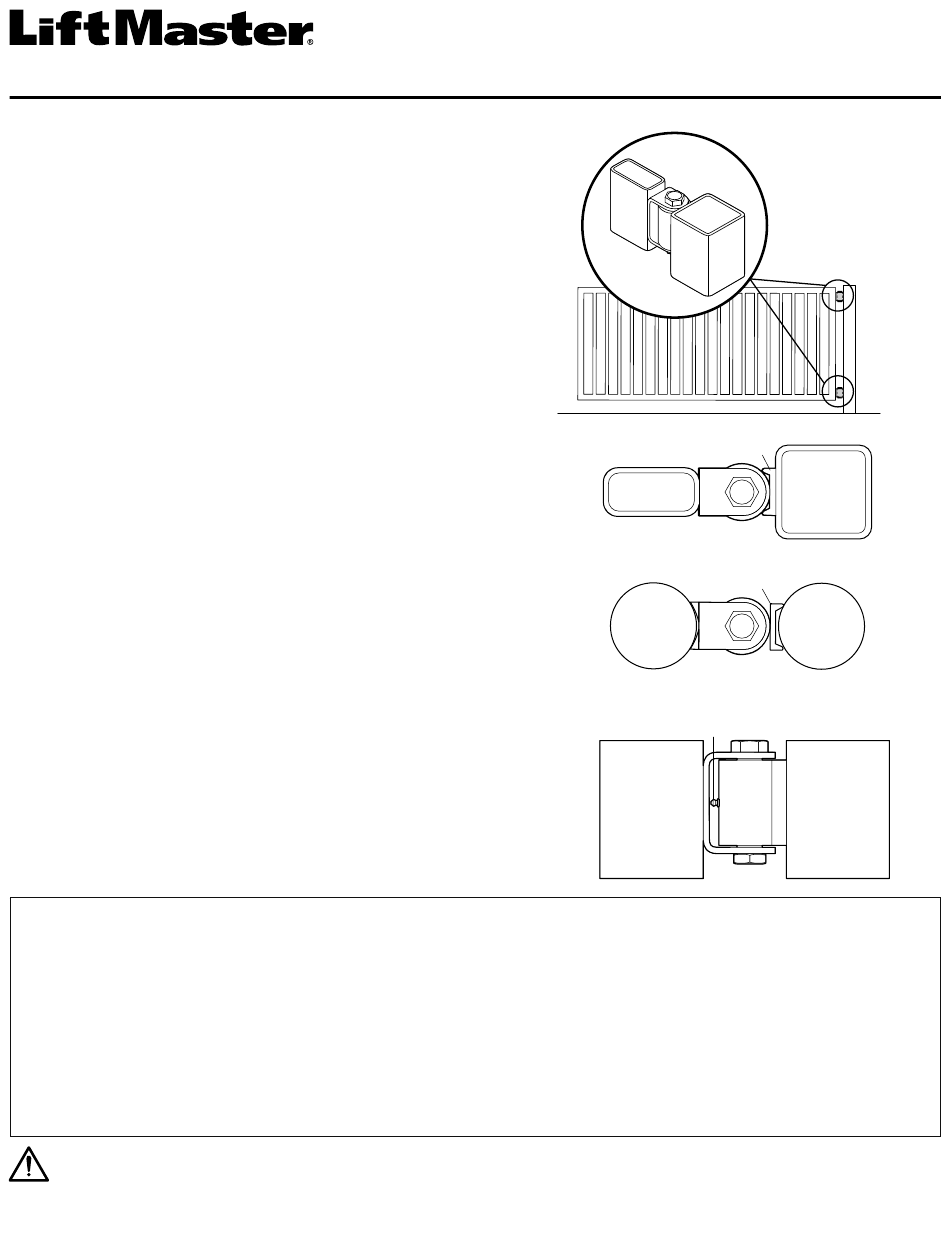

LiftMaster Gate Hinges are to be mounted with the yoke welded to the
gate and the body welded to post (Figure 1). The hinges must be installed
with the hinge pins in a straight line. Weld only on the vertical portions of
the yoke and plate. DO NOT weld the top and bottom of the hinges. Bolt
on versions are also available.

SHOP FABRICATION

Locate hinges on gate frame in shop.
Weld hinges to gate.
INSTALL – OPTION 1:
1. Place gate in desired position.
2. Tack weld in place.
3. Check gate movement, height, alignment, level and plumb.
4. Relieve weight of gate on post (block up gate).
5. Fully weld yoke to gate, then body to post.
6. Allow to cool – remove block.
7. Adjustable Hinge ONLY: Adjust yoke to desired position. Tighten bolt.
8. Lubricate hinge (do not over lubricate).
INSTALL – OPTION 2:
1. Remove yoke from hinges.
2. Place barrel on post/jamb in desired position.
3. Tack or weld in place.
4. Install gate.
5. Check gate movement, height, alignment, level and plumb.
6. Lubricate hinge (do not over lubricate).

MAINTENANCE

This gate hinge is equipped with a grease zerk for easy lubrication
(Figure 2). One pump of a high quality, multi-purpose grease every 3
months should be suffi cient under normal operating conditions. More
frequent maintenance is necessary under severe operating conditions. Do
not over lubricate.

LIMITED LIFETIME WARRANTY

LiftMaster
®
warrants that the LiftMaster Gate Hinges shall be free from all defects in materials and workmanship for the lifetime of the original gate it is installed on, by
the original end user, under normal use and service, and when installed and maintained according to manufacturer specifi cations and instructions. LiftMaster's obligation
under this warranty is specifi cally limited to repairing or replacing, at its option, any defective part during the warranty period. This warranty shall not apply to any part
which has been altered, damaged, improperly installed or maintained, or repaired by any person not expressly authorized by LiftMaster in writing to perform the repair.
The warranty will not apply to parts which have been damaged by accident or improper use, nor to non-defect damage. All other warranties, including but not limited
to any warranty of merchantability or fi tness for any particular purpose, or otherwise expressed or implied, are hereby disclaimed, except as specifi cally stated above.
LiftMaster shall in no event be liable either for incidental or consequential damages or for any special damages of further loss, which may arise in connection with any
claim. However, if LiftMaster is held liable, whether directly or indirectly, for any loss or damage arising under this limited warranty or otherwise, regardless of the cause
or origin, LiftMaster's maximum liability shall not in any case exceed the purchase price of the individual product or products, refund of which shall be the complete and
exclusive remedy against LiftMaster. This warranty gives the owner specifi c legal rights, and owner may have other rights, which vary from state to state. Some states do
not allow limitations or exclusions or implied warranties for incidental or consequential damages so the foregoing limitations or exclusions may not apply.
WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth defects or
other reproductive harm. For more information go to www.P65Warnings.ca.gov
Overview
Figure 1
Figure 2
LiftMaster.com
GATE HINGES
MODELS 2000 AND 2100
MODEL 3100 (ADJUSTABLE)
Gate
Post
Body
SQUARE
Yoke
Gate
ROUND
Body
Yoke
Gate
Grease Zerk
Gate
Post
Post
Post
