KitchenAid KGCU462VSS Product Dimensions

Commercial style gas cooktop
Hide thumbs


Advertisement

PRODUCT MODEL NUMBERS
KGCU407V
KGCU482V
KGCU462V
KGCU483V
KGCU463V
KGCU484V
KGCU467V
Type of Gas
Natural Gas:
This cooktop is design-certified by CSA International for
use with Natural gas or, after proper conversion, for use
with LP gas.
This cooktop is factory-set for use with Natural gas. To
convert to LP gas, see the Gas Conversion instructions
provided in the package containing literature. The model/
serial rating plate located on the left underside of the
cooktop burner base has information on the types of gas
that can be used. If the types of gas listed do not include
the type of gas available, check with the local gas supplier.
LP Gas conversion:
Conversion must be done by a qualified service technician.
No attempt shall be made to convert the cooktop from the
gas specified on the model/serial rating plate for use with a
different gas without consulting the serving gas supplier. To
convert to LP gas, use the LP gas conversion kit provided
with the cooktop and see the "Gas Conversions" section.
Electrical:
A 120-volt, 60-Hz, AC-only, 15-amp, fused electrical circuit
is required. A time-delay fuse or circuit breaker is also
recommended. It is recommended that a separate circuit
serving only this cooktop be provided.
LOCATION REQUIREMENTS
IMPORTANT: Observe all governing codes and ordinances.
Do not obstruct flow of combustion and ventilation air.
It is the installer's responsibility to comply with installation
clearances specified on the model/serial rating plate. The
model/serial rating plate is located on the underside of the
cooktop burner base.
It is recommended that a 600 CFM or larger vent hood be
installed above the cooktop.
It is not recommended that a microwave hood combination
be mounted above the cooktop.
The cooktop should be installed in a location away from
strong draft areas, such as windows, doors and strong
heating vents or fans.
All openings in the wall or floor where cooktop is to be
installed must be sealed.
Cabinet opening dimensions that are shown must be used.
Given dimensions are minimum clearances.
IMPORTANT: To avoid damage to your cabinets, check with
your builder or cabinet supplier to make sure that the
materials used will not discolor, delaminate or sustain other
damage.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
®
Commercial Style Gas Cooktop

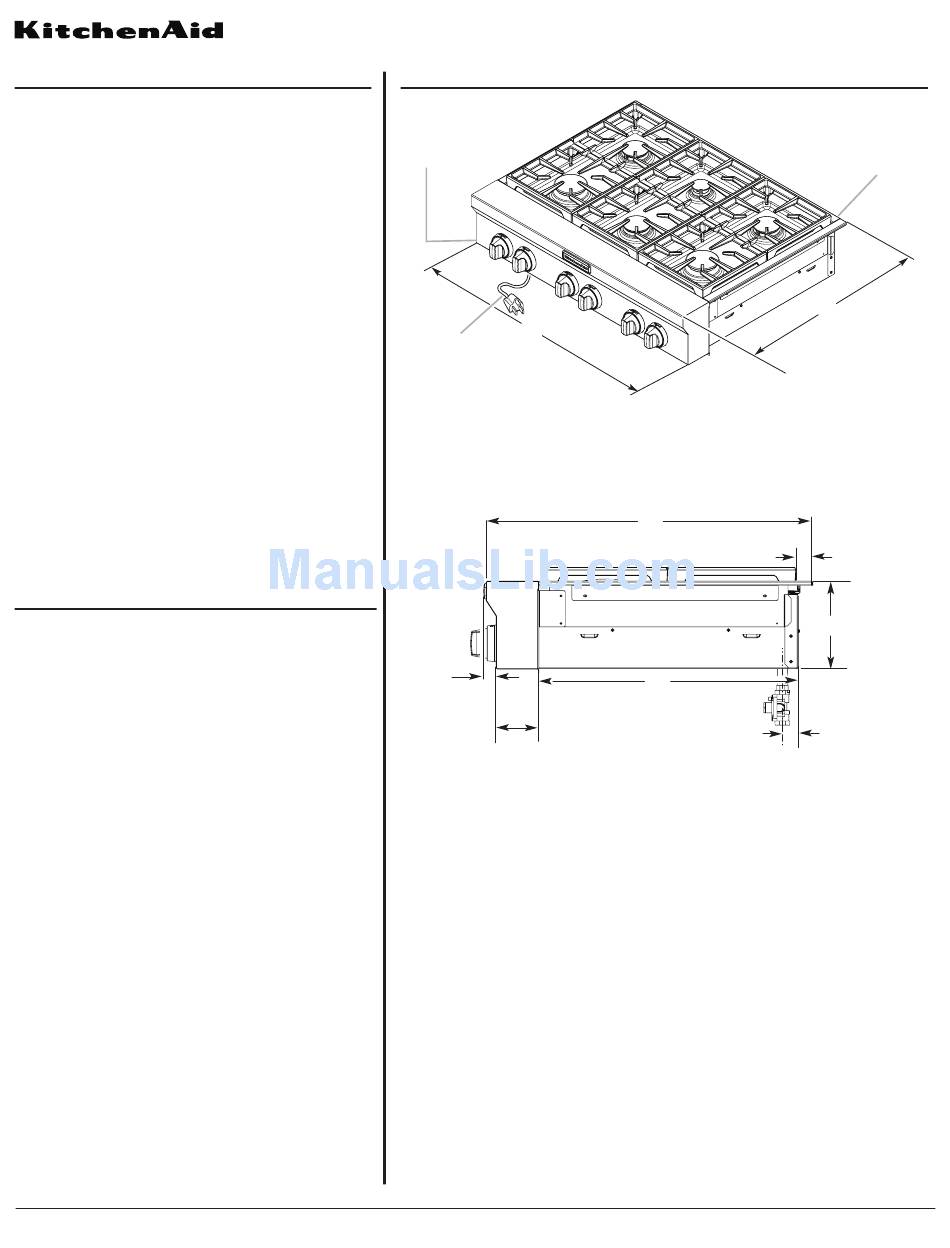

PRODUCT DIMENSIONS
A. 30" (76.2 cm) cooktop: 29
B. 36" (91.4 cm) long 3 prong grounding-type
C
A
B
⁵⁄₈
" (75.1 cm)
⁵⁄₈
36" (90.4 cm) cooktop: 35
" (90.4 cm)
⁵⁄₈
48" (121.9 cm) cooktop: 47
" (120.8 cm)
power supply cord
G
Side View of Cooktop
F
A. 27¾" (70.5 cm)
B. 1¼" (3.2 cm)
⁷⁄₁₆
C. 7
" (18.8 cm)
⁷⁄₈
D. Gas inlet is located 1
" (4.8 cm) from the back of
the cooktop burner base and 4
from left-hand side of the cooktop burner base.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
C. Model/serial rating plate (located on the
underside of the cooktop burner base)
D. Island trim or optional backguard
E. 27¾" (70.5 cm)
A
B
E
D
E. 22" (55.9 cm)
⁵⁄₈
F. 3
" (9.2 cm)
G. 1" (2.6 cm)
⁷⁄₈
" (12.4 cm) in
D
E
C
Page 1 of 2
Ref. W10271686D
08/26/09
