JWA FROST 73667 Assembly Instruction Manual

Buffet
Hide thumbs

Advertisement

Quick Links

Download this manual

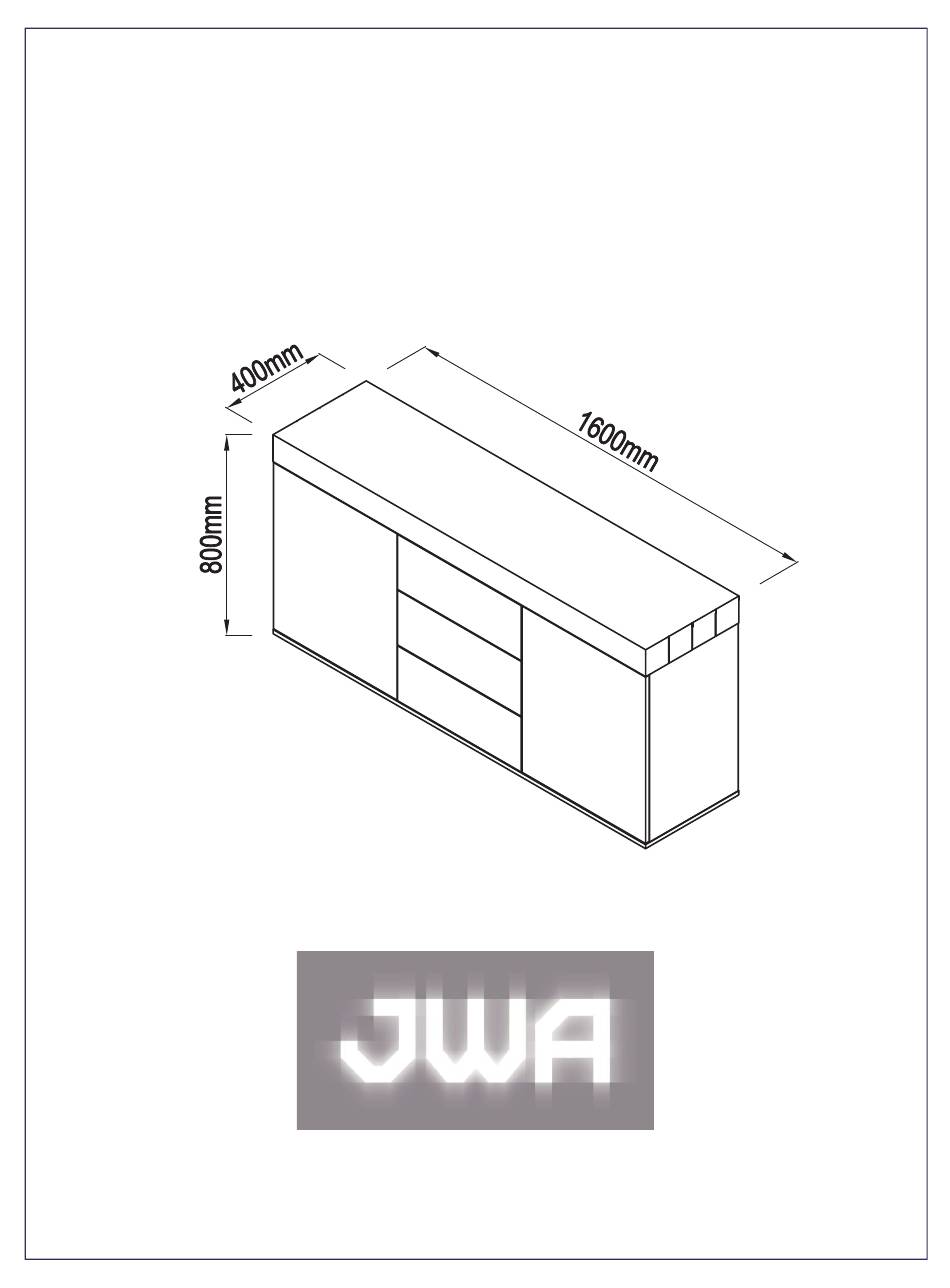

ASSEMBLY INSTRUCTION
FROST BUFFET
ITEM CODE 73667
Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please refer to your receipt
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the FROST 73667 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JWA FROST 73667

Summary of Contents for JWA FROST 73667

  • Page 1 ASSEMBLY INSTRUCTION FROST BUFFET ITEM CODE 73667 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...

  • Page 2: Pre-Assembly Preparation

    PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4.

  • Page 3: Parts List

    PARTS LIST Φ6X44mm Φ15X12mm Φ20X0.5mm Φ8X30mm x 24 x 24 x 20 x 20 Φ3.5X14mm Φ55X18mm 14X14X9mm x 12 x 107 7X50mm 340mm Φ35mm Φ4X35mm x 12 Φ5X18mm Φ29X12mm Φ4X60mm 83X14X19mm Φ16X2/3X12mm Φ8X38mm TOP PANEL SHELF BOTTOM PANEL DOOR SIDE PANEL DOOR SIDE PANEL DRAWER FRONT...
  • Page 4 STEP 1: • Prepare a floor or benchtop with a protective blanket or carboard. • Fix runners (J1)to panels (5)(6) with screws (F). • Fix cam pin (A) to panels (5)(6). STEP 2: • Fix pusher base (P2)to panels (5)(6)(7) with screws (F). •...
  • Page 5 STEP 3: • Attach panel (5)(6) to panel(7) with dowel(D) and cam lock (B) 100% STEP 4: • Fix cam pin (A) and dowel(D) to panel (1).
  • Page 6 STEP 5: • Attach panel (3)(4)(5)(6) to panel (1) with cam lock (B) and Hole cover (C) 100% STEP 6: • Push the back panels (8)(9) in the body.
  • Page 7 STEP 7: • Fix pusher base (P2)to panel (2) with screws (F). • Fix the pusher (P1) to pusher base (P2). STEP 8: • Attach panel (2) to the body with dowel(D)and screws (I). • Fasten with Allen Key(H)
  • Page 8 STEP 9: • Fix adjusting foot (G-1) to panel(2) with screws (F). • Fix adjusting foot (G-2) to adjusting foot (G-1). STEP 10: • Fix movable nail (M) to the body . • Put panels (10) on the pin (M).
  • Page 9 STEP 11: • Attach back panel to the body with screws (F) and plastic buckle (E) . • SAFETY BRACKETS INSTRUCTIONS See page 13 STEP 12: • Fix runners (J2) to drawer side panels (14)(15) with screws (F). • Fix metal plate (Q1) to panels (13) with screws (Q2). •...
  • Page 10 STEP 13: • Attach panels (14)(15) to panel (16) with screw(L). • Insert drawer base (17) as shown. • Attach drawer front to the body with cam lock parts. 100% STEP 14: • Assemble drawers to the body.
  • Page 11 STEP 15: • Fix hinges (K) to panels (11)(12) with screws (F). • Fix metal plate (Q1) to panels (11)(12) with screws (Q2). STEP 16: • Fix door to the body with screws (F).
  • Page 12 ASSEMBLY COMPLETE...
  • Page 13 SAFETY BRACKETS INSTRUCTIONS HARDWARE (R) 1. Fix to the wall. If mounting into brick or masonry you will need to acquire wall anchors. Fixing (N) 2. Stick the to the back panel and align the holes. Screw (O) 3. Move the furniture to its final position. Thread a through the Fixing (N) Screw (O)

  • Page 14: Product Care

    PRODUCT CARE: To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
