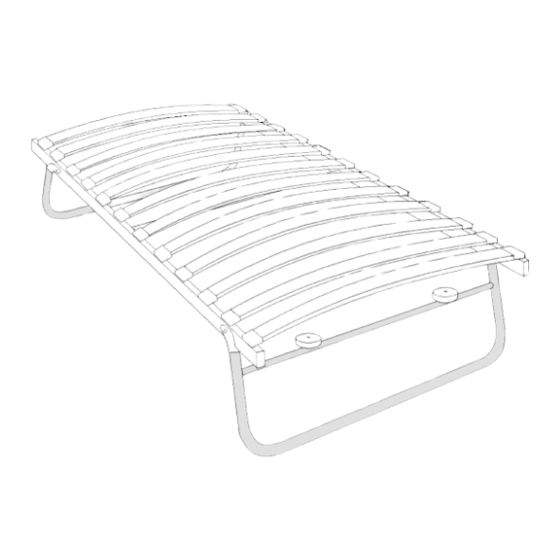

- Page 1 ASSEMBLY INSTRUCTION Funes TRUNDLE BED 70409/70406 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 2 PRE-ASSEMBLY PREPARATION Before you start: 1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2.Take care when lifting. Product should be assembled as near as possible to the point of 3.Ensure that you have all required contents for complete assembly 4.Always read the assembly instructions carefully before beginning assembly.
- Page 3 PARTS LIST 1 Siderail x 2pcs 4 Slat (905mm) x 12pcs 2 Cross Bar x 1pc 5 End Cap x 24pcs 3 Trundle Leg x 2pcs 6 Secure Pin x 2pcs...
- Page 4 STEP 1: • Prepare a protected surface with a blanket or cardboard. • Connect a side rail(1) to the trundle leg(3). Use bolt(A) per side, and lock with nut(C). Fasten with allen key(D). • Connect the other side rail(1) to the trundle leg(3). Use bolt(B) and secure pin(6) per side, and lock with nut(C).
- Page 5 STEP 2: • Attach an end cap(5) onto every slat, 2 per slat(4). • Attach the slat to the bed as shown below. Push the caps into the holes.
- Page 6 STEP 3: (Optional Step)
- Page 7 Assembly Is Complete...
- Page 8 PRODUCT CARE: FURNITURE / BED 1. When assembling your furniture / bed please ensure that you have checked the contents for all relevant parts. 2. When tightening bolts make sure that they are fully tightened but not forced. 3. When moving your fully assembled bed you must first remove the mattress and lift the frame into position, take care when lifting and always have two people handling the bed.
