Summary of Contents for JWA FRY 75231

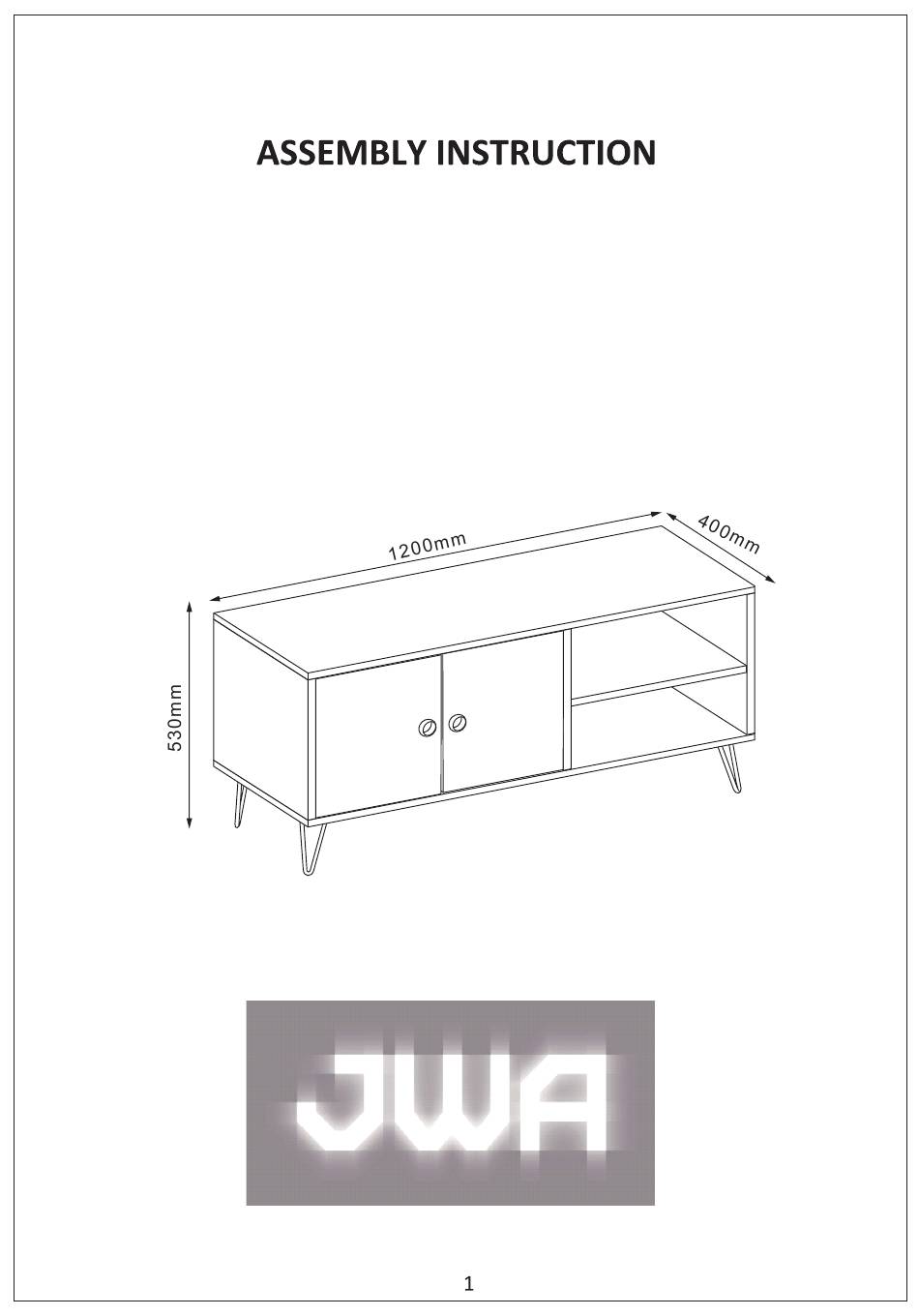

- Page 1 Entertainment Unit ITEM CODE 75231 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 3 M6X25mm M6X12mm ST3.5X18mm ST3.5X14mm 20pcs 6pcs 12pcs 6pcs 26pcs 8X30mm ST4X25mm 6pcs 4pcs 2pcs 20pcs 2pcs Main frame Top panel Right middle panel Connection frame Bottom panel Layer panel Door panel Left panel Right panel Back panel Left middle panel...
- Page 4 1. Attach connection frame P2 to panel 2 with part B1. 1. Attach frame P1 to panel 2 with part B2.
- Page 5 1. Insert parts A and D into panel 2. STEP 4: 1. Insert parts A and D into panels 4 and 6.
- Page 6 STEP 5: 1. Attach panels 4 and 6 to panel 7 with parts A and D. STEP 6: 1. Attach panels 3, 4, 5 and 6 to panel 2 with parts A and D.
- Page 7 STEP 7: 1. Slide panel 9 along slots of panels 3 and 4. STEP 8: 1. Insert parts A and D into panel 1. 2. Attach panel 1 to panels 3, 4, 5 and 6 with parts A and D.
- Page 8 STEP 9: 1. Insert part E into panel 9 with part C2. STEP 10: 1. Attach the right side of part F to panel 8 with part C1. 2. Attach the left side of part F to panel 6 with part C1.
- Page 9 STEP 11: Install Tip Kit 1. Attach part H to panel 1 with part C1. 2. Attach part H to the wall with part G. ① STEP 12: Assembly complete!
