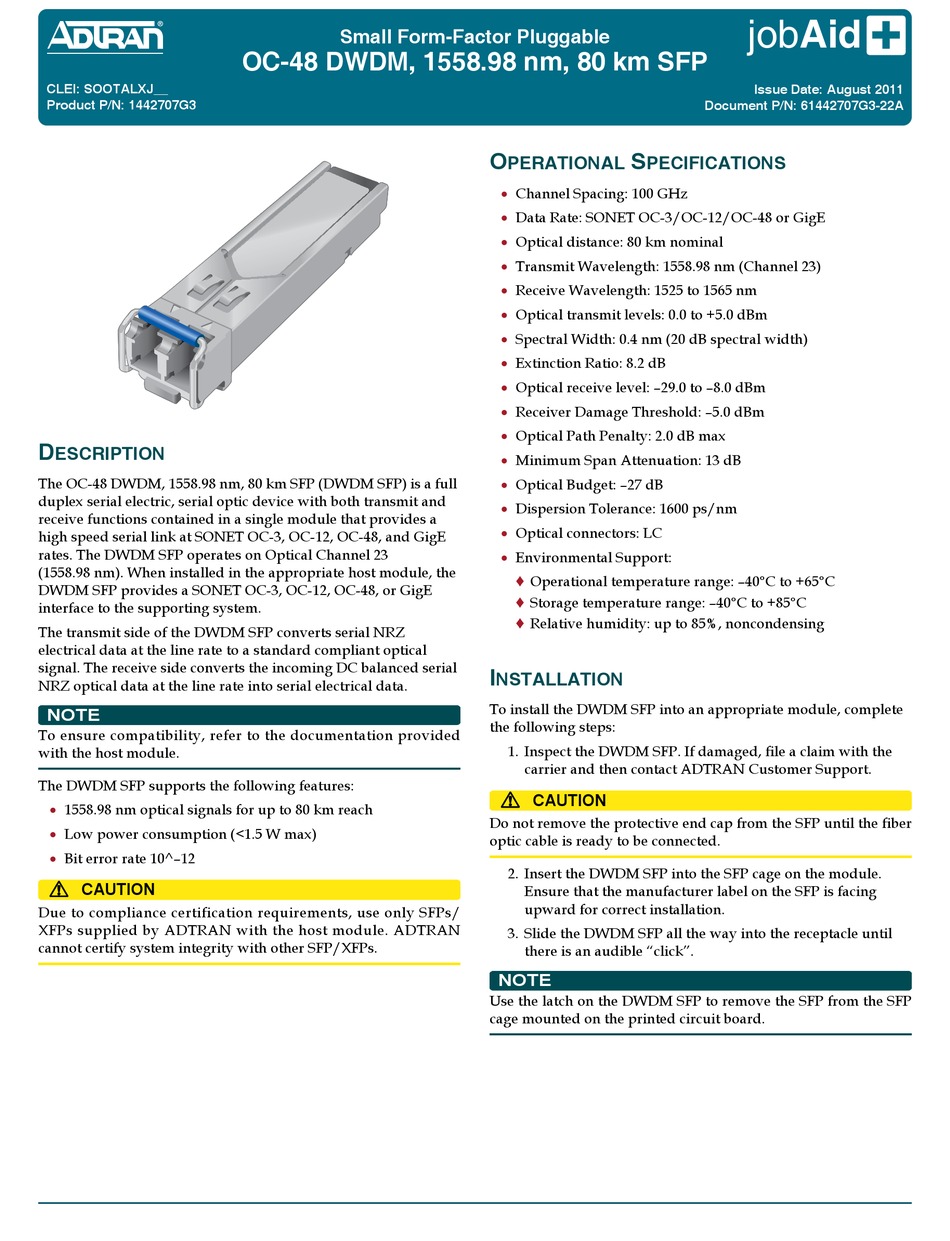

ADTRAN Job Aid+ 1442707G3 Manual

CLEI: SOOTALXJ__
Product P/N: 1442707G3
D
ESCRIPTION

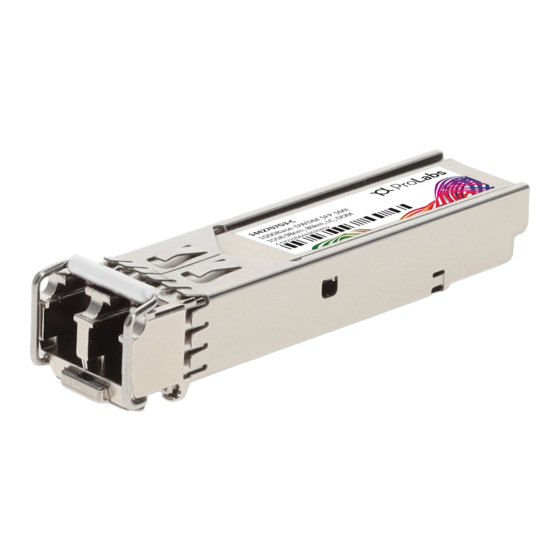

The OC-48 DWDM, 1558.98 nm, 80 km SFP (DWDM SFP) is a full
duplex serial electric, serial optic device with both transmit and
receive functions contained in a single module that provides a
high speed serial link at SONET OC-3, OC-12, OC-48, and GigE
rates. The DWDM SFP operates on Optical Channel 23
(1558.98 nm). When installed in the appropriate host module, the
DWDM SFP provides a SONET OC-3, OC-12, OC-48, or GigE
interface to the supporting system.
The transmit side of the DWDM SFP converts serial NRZ
electrical data at the line rate to a standard compliant optical
signal. The receive side converts the incoming DC balanced serial
NRZ optical data at the line rate into serial electrical data.
NOTE
To ensure compatibility, refer to the documentation provided
with the host module.
The DWDM SFP supports the following features:
•
1558.98 nm optical signals for up to 80 km reach
•
Low power consumption (<1.5 W max)
•
Bit error rate 10^–12
!
CAUTION
Due to compliance certification requirements, use only SFPs/
XFPs supplied by ADTRAN with the host module. ADTRAN
cannot certify system integrity with other SFP/XFPs.
Small Form-Factor Pluggable
OC-48 DWDM, 1558.98 nm, 80 km SFP
O S
PERATIONAL PECIFICATIONS
•
Channel Spacing: 100 GHz
•
Data Rate: SONET OC-3/OC-12/OC-48 or GigE
•
Optical distance: 80 km nominal
•
Transmit Wavelength: 1558.98 nm (Channel 23)
•
Receive Wavelength: 1525 to 1565 nm
•
Optical transmit levels: 0.0 to +5.0 dBm
•
Spectral Width: 0.4 nm (20 dB spectral width)
•
Extinction Ratio: 8.2 dB
•
Optical receive level: –29.0 to –8.0 dBm
•
Receiver Damage Threshold: –5.0 dBm
•
Optical Path Penalty: 2.0 dB max
•
Minimum Span Attenuation: 13 dB
•
Optical Budget: –27 dB
•
Dispersion Tolerance: 1600 ps/nm
•
Optical connectors: LC
•
Environmental Support:
o Operational temperature range: –40°C to +65°C
o Storage temperature range: –40°C to +85°C
o Relative humidity: up to 85%, noncondensing
I
NSTALLATION
To install the DWDM SFP into an appropriate module, complete
the following steps:
1. Inspect the DWDM SFP. If damaged, file a claim with the
carrier and then contact ADTRAN Customer Support.
!
CAUTION
Do not remove the protective end cap from the SFP until the fiber
optic cable is ready to be connected.
2. Insert the DWDM SFP into the SFP cage on the module.
Ensure that the manufacturer label on the SFP is facing
upward for correct installation.
3. Slide the DWDM SFP all the way into the receptacle until
there is an audible "click".
NOTE
Use the latch on the DWDM SFP to remove the SFP from the SFP
cage mounted on the printed circuit board.
jobAid
Issue Date: August 2011
Document P/N: 61442707G3-22A
