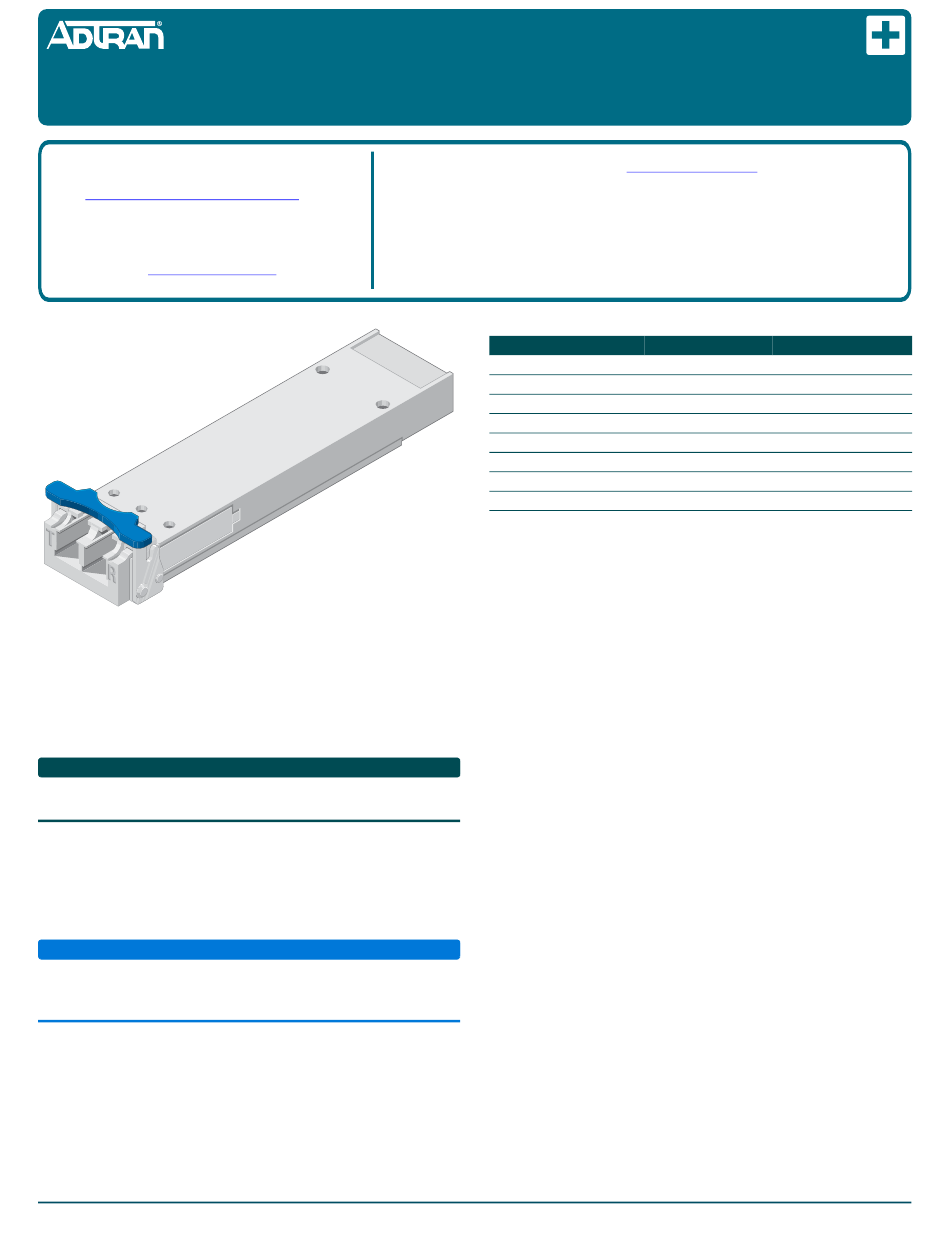

ADTRAN Job Aid+ 1442971GX Manual

Product P/N: 1442971GX
Documentation for ADTRAN Carrier Networks products is
available for viewing and download directly from the ADTRAN
Support Community website.
Go to: https://supportforums.adtran.com/welcome
Registration is required.
ADTRAN offers training courses on our products, including
customized training and courses taught at our facilities or at
customer sites.
For inquiries, go to: http://adtran.com/training
D
ESCRIPTION
The 11.3G XFP CWDM, 70 km plugs into ADTRAN equipment
designed to accept pluggable optical modules with the XFP form-
factor. Installed into an appropriate host unit, the 11.3G XFP
CWDM, 70 km provides a Coarse Wavelength Division Multi-
plexing (CWDM) interface to the supporting system.
NOTE
To ensure compatibility, refer to the documentation provided
with the host module or splitter/combiner unit.
The following features are supported on the 11.3G XFP CWDM,
70 km:
¨
9.95 ‐ 11.3Gbps, CWDM, long reach, single‐mode, 2‐fiber
operation
¨
70 km maximum optical span
NOTICE
Due to compliance certification requirements, only XFPs supplied
by ADTRAN are to be used with the host module. ADTRAN
cannot certify system integrity with other XFPs.

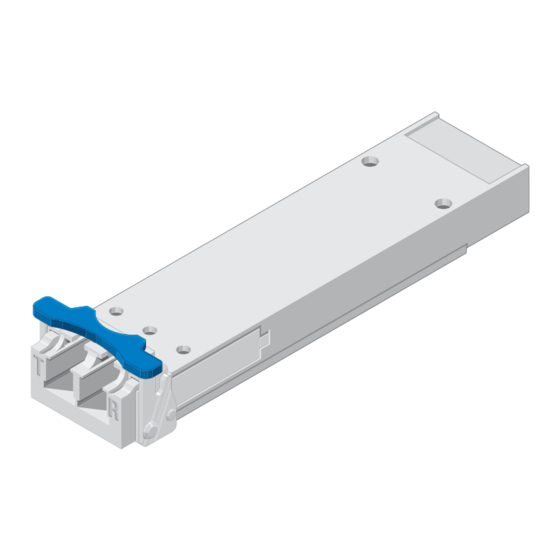

Small Form-factor Pluggable
11.3G XFP CWDM, 70 km
The following related online documents and resources provide additional information for this product:
SFP/XFP/SFP+ Compatibility Matrix (online tool: http://www.adtran.com/sfp)
This Job Aid supports the following XFP Modules:
Operational Specifications
■
■
Part Number Wavelength (nm)
1442971G1
1442971G2
1442971G3
1442971G4
1442971G5
1442971G6
1442971G7
1442971G8
Optical Specifications:
♦ Optical transmit level: 0.0 dBm to +4.0 dBm
♦ Optical receive level:–24.0 dBm to –7.0 dBm (9.95Gbps)
♦ Power penalty: 3.0 dB
♦ Optical budget: 21.0 (±1) dB
♦ Minimum span attenuation: 11.0 dB
♦ Optical connectors: LC
Extended Environmental Support:
♦ Operational case temperature range: –40°C to +65°C
♦ Storage temperature range: –40°C to +85°C
♦ Relative humidity to 95%, noncondensing
jobAid
Issue Date: January 2015
Document P/N: 61442971GX-22B
CLEI
1471 BVL3A1JDAA
1491 BVL3A1KDAA
1511 BVL3A1LDAA
1531 BVL3A1MDAA
1551 BVL3A1NDAA
1571 BVL3A1PDAA
1591 BVL3A1RDAA
1611 BVL3A1SDAA
1
