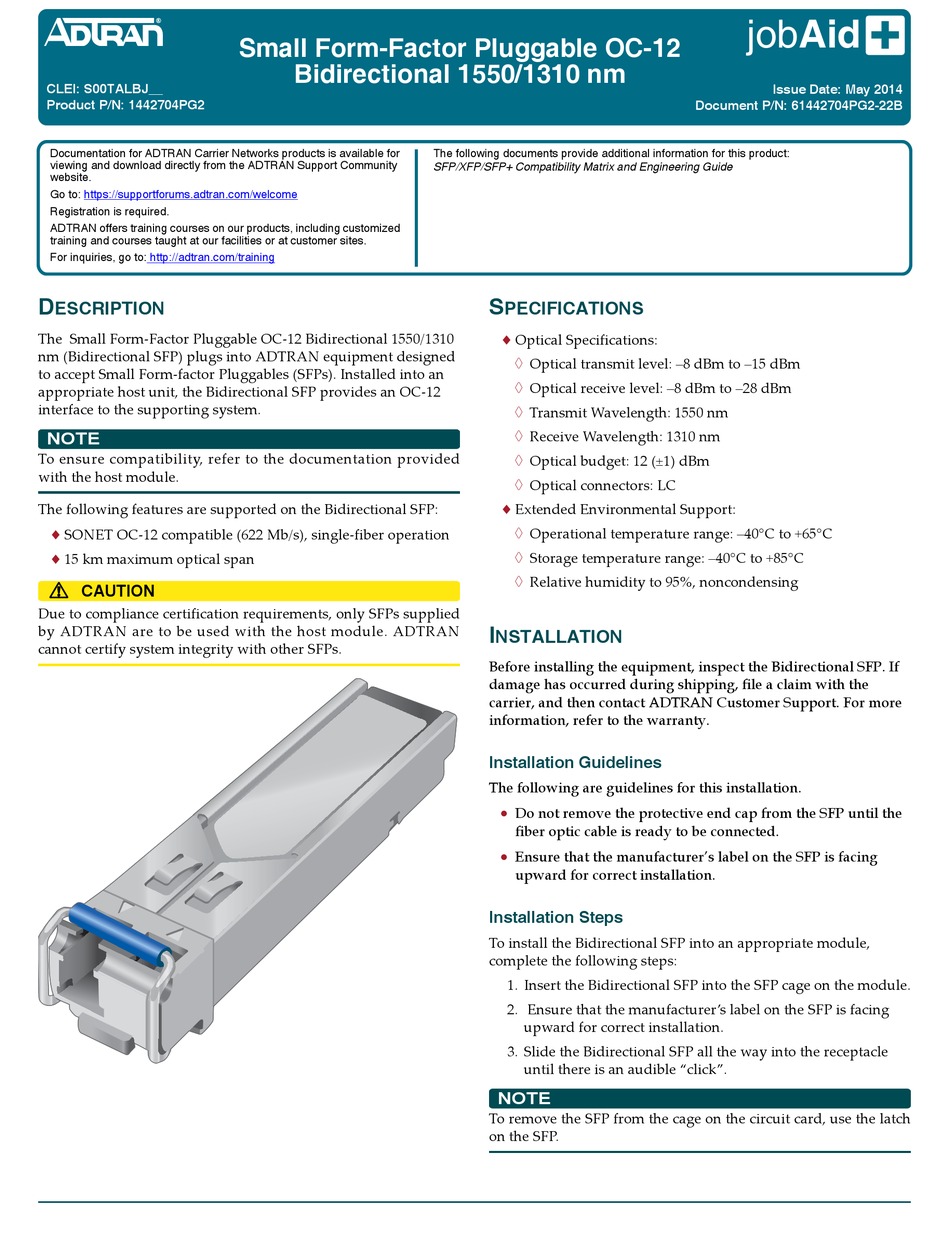

ADTRAN Job Aid+ 1442704PG2 Manual

CLEI: S00TALBJ__
Product P/N: 1442704PG2
Documentation for ADTRAN Carrier Networks products is available for
viewing and download directly from the ADTRAN Support Community
website.
Go to: https://supportforums.adtran.com/welcome
Registration is required.
ADTRAN offers training courses on our products, including customized
training and courses taught at our facilities or at customer sites.
For inquiries, go to: http://adtran.com/training
D
ESCRIPTION
The Small Form‐Factor Pluggable OC‐12 Bidirectional 1550/1310
nm (Bidirectional SFP) plugs into ADTRAN equipment designed
to accept Small Form‐factor Pluggables (SFPs). Installed into an
appropriate host unit, the Bidirectional SFP provides an OC‐12
interface to the supporting system.
NOTE
To ensure compatibility, refer to the documentation provided
with the host module.
The following features are supported on the Bidirectional SFP:

SONET OC‐12 compatible (622 Mb/s), single‐fiber operation

15 km maximum optical span
!
CAUTION
Due to compliance certification requirements, only SFPs supplied
by ADTRAN are to be used with the host module. ADTRAN
cannot certify system integrity with other SFPs.

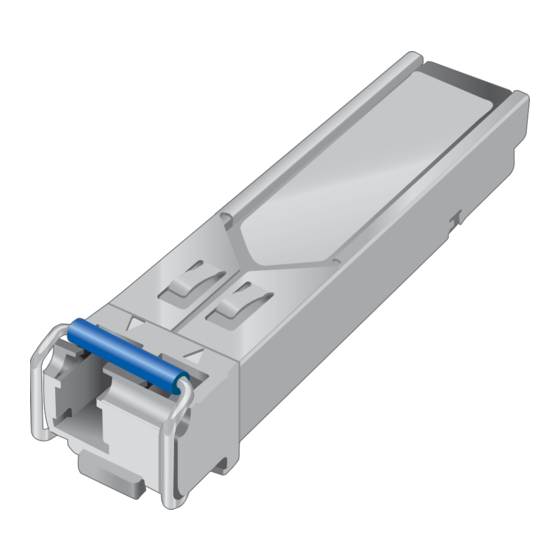

Small Form-Factor Pluggable OC-12
Bidirectional 1550/1310 nm
The following documents provide additional information for this product:
SFP/XFP/SFP+ Compatibility Matrix and Engineering Guide
S
PECIFICATIONS

Optical Specifications:

Optical transmit level: –8 dBm to –15 dBm

Optical receive level: –8 dBm to –28 dBm

Transmit Wavelength: 1550 nm

Receive Wavelength: 1310 nm

Optical budget: 12 (±1) dBm

Optical connectors: LC

Extended Environmental Support:

Operational temperature range: –40°C to +65°C

Storage temperature range: –40°C to +85°C

Relative humidity to 95%, noncondensing
I
NSTALLATION
Before installing the equipment, inspect the Bidirectional SFP. If
damage has occurred during shipping, file a claim with the
carrier, and then contact ADTRAN Customer Support. For more
information, refer to the warranty.
Installation Guidelines
The following are guidelines for this installation.

Do not remove the protective end cap from the SFP until the
fiber optic cable is ready to be connected.

Ensure that the manufacturer's label on the SFP is facing
upward for correct installation.
Installation Steps
To install the Bidirectional SFP into an appropriate module,
complete the following steps:
1. Insert the Bidirectional SFP into the SFP cage on the module.
2. Ensure that the manufacturer's label on the SFP is facing
upward for correct installation.
3. Slide the Bidirectional SFP all the way into the receptacle
until there is an audible "click".
NOTE
To remove the SFP from the cage on the circuit card, use the latch
on the SFP.
jobAid
Issue Date: May 2014
Document P/N: 61442704PG2-22B
