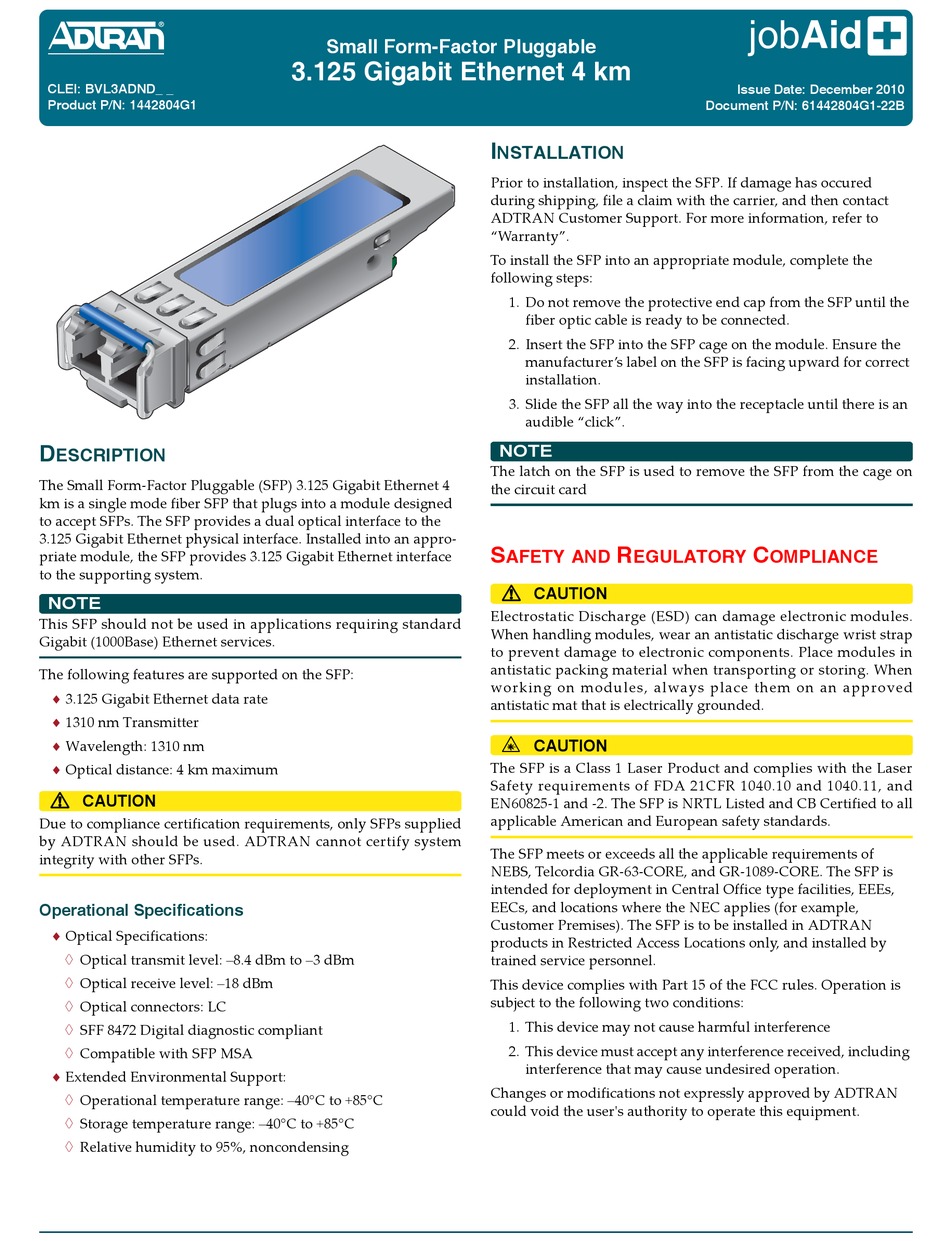

ADTRAN Job Aid+ 1442804G1 Manual

CLEI: BVL3ADND_ _
Product P/N: 1442804G1
D
ESCRIPTION

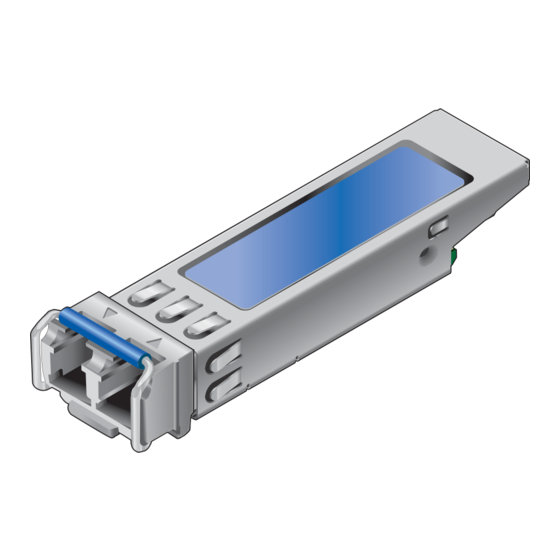

The Small Form‐Factor Pluggable (SFP) 3.125 Gigabit Ethernet 4
km is a single mode fiber SFP that plugs into a module designed
to accept SFPs. The SFP provides a dual optical interface to the
3.125 Gigabit Ethernet physical interface. Installed into an appro‐
priate module, the SFP provides 3.125 Gigabit Ethernet interface
to the supporting system.
NOTE
This SFP should not be used in applications requiring standard
Gigabit (1000Base) Ethernet services.
The following features are supported on the SFP:
♦
3.125 Gigabit Ethernet data rate
♦
1310 nm Transmitter
♦
Wavelength: 1310 nm
♦
Optical distance: 4 km maximum
!
CAUTION
Due to compliance certification requirements, only SFPs supplied
by ADTRAN should be used. ADTRAN cannot certify system
integrity with other SFPs.
Operational Specifications
♦
Optical Specifications:
◊
Optical transmit level: –8.4 dBm to –3 dBm
◊
Optical receive level: –18 dBm
◊
Optical connectors: LC
◊
SFF 8472 Digital diagnostic compliant
◊
Compatible with SFP MSA
♦
Extended Environmental Support:
◊
Operational temperature range: –40°C to +85°C
◊
Storage temperature range: –40°C to +85°C
◊
Relative humidity to 95%, noncondensing
Small Form-Factor Pluggable
3.125 Gigabit Ethernet 4 km
I
NSTALLATION
Prior to installation, inspect the SFP. If damage has occured
during shipping, file a claim with the carrier, and then contact
ADTRAN Customer Support. For more information, refer to
"Warranty".
To install the SFP into an appropriate module, complete the
following steps:
1. Do not remove the protective end cap from the SFP until the
fiber optic cable is ready to be connected.
2. Insert the SFP into the SFP cage on the module. Ensure the
manufacturer's label on the SFP is facing upward for correct
installation.
3. Slide the SFP all the way into the receptacle until there is an
audible "click".
NOTE
The latch on the SFP is used to remove the SFP from the cage on
the circuit card
S R
AFETY AND EGULATORY
!
CAUTION
Electrostatic Discharge (ESD) can damage electronic modules.
When handling modules, wear an antistatic discharge wrist strap
to prevent damage to electronic components. Place modules in
antistatic packing material when transporting or storing. When
working on modules, always place them on an approved
antistatic mat that is electrically grounded.
C
CAUTION
The SFP is a Class 1 Laser Product and complies with the Laser
Safety requirements of FDA 21CFR 1040.10 and 1040.11, and
EN60825‐1 and ‐2. The SFP is NRTL Listed and CB Certified to all
applicable American and European safety standards.
The SFP meets or exceeds all the applicable requirements of
NEBS, Telcordia GR‐63‐CORE, and GR‐1089‐CORE. The SFP is
intended for deployment in Central Office type facilities, EEEs,
EECs, and locations where the NEC applies (for example,
Customer Premises). The SFP is to be installed in ADTRAN
products in Restricted Access Locations only, and installed by
trained service personnel.
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by ADTRAN
could void the userʹs authority to operate this equipment.
jobAid
Issue Date: December 2010
Document P/N: 61442804G1-22B
C
OMPLIANCE
