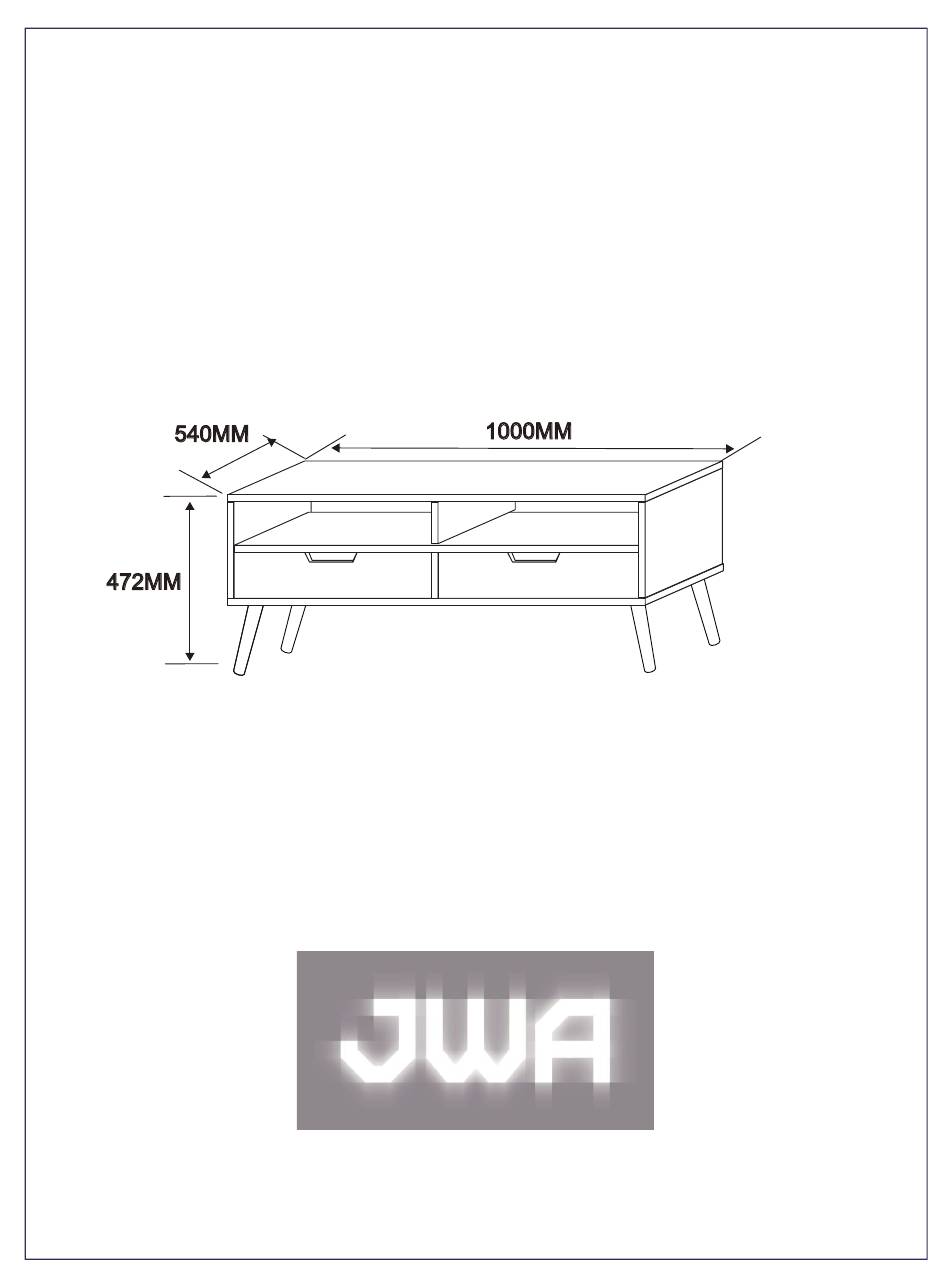

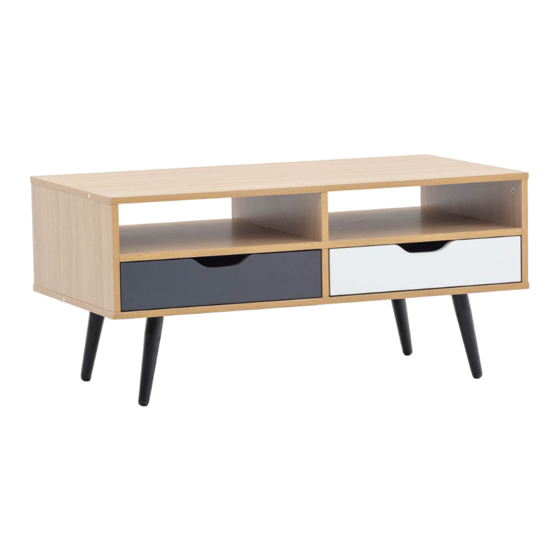

- Page 1 ASSEMBLY INSTRUCTION OLTA COFFEE TABLE ITEM CODE 69738 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 3: Parts List
PARTS LIST M7X39mm M14.8X12mm M8X30mm M5X40mm 18pcs 18pcs 30pcs 14pcs M4X14mm M3.5X14mm 20pcs 4pcs 24pcs 4pcs 1pcs 2pcs 2pcs 2pcs M4x30mm M3.5x14mm 2pcs DRAWER FRONT SIDE PANEL BACK PANEL SIDE PANEL DRAWER SIDE PANEL MIDDLE PANEL SHELF DRAWER BACK PANEL DRAWER SIDE PANEL MIDDLE PANEL DRAWER BASE... - Page 4 STEP 1: Fix runners (CL)(CR) to panels (1)(2)(3) with screws (G). Fix cam pin (B) to panels (1)(2)(3). STEP 2: Fix cam pin (B) to panel (4). Attach panel (5) to panel(4) with dowel(A)and screws (D).
- Page 5 STEP 3: Attach panels (3) (9) to panel(4) with dowel(C)and cam lock (B). STEP 4: Attach panels (1) (2) to the body with dowel(C)and cam lock (B).
- Page 6 Attach panel (6) to the body with screws (D). STEP 5: STEP 6: Fix cam pin (A) to panel (7). Attach panel (7) to the body with dowel(C)and cam lock (B).
- Page 7 STEP 7: Fix metal plate(F) to panel(6) with screws (E). Fix legs (H) to panel(6). STEP 8:...
- Page 8 STEP 9: Attach panels (10)(11) to panel(12) with screw(C) and screws (D). Insert drawer base as shown. STEP 10: Fix cam pin (A)to panels (8)(14). Attach drawer front to the body with cam lock parts. 8 14 8 14 8 14...
- Page 9 Assemble drawers to the body. STEP 11: ASSEMBLY COMPLETE...
- Page 10 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 11 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
