Summary of Contents for JWA OCHOA 75135

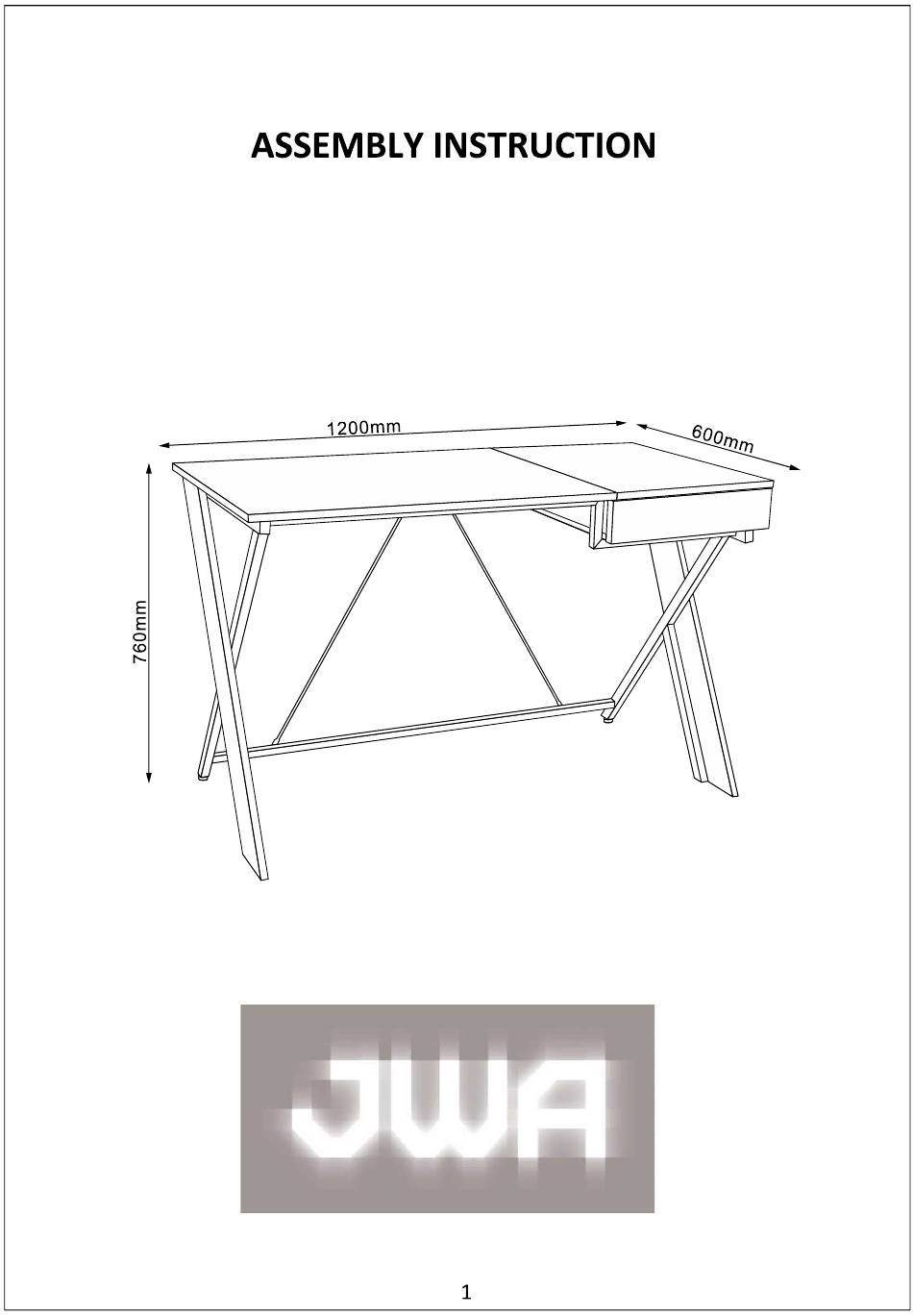

- Page 1 OCHOA 1 Drawer Desk CODE ITEM 75135 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
- Page 3 M6X15mm M6X20mm M6X30mm M6X40mm 8pcs 2pcs 17pcs 9pcs ST5X50mm 8X30mm ST3.5X12mm M6X50mm 2pcs 10pcs 8pcs 8pcs ST4X25mm M8x20x10 8X40mm 2pcs 2pcs 6pcs 2pcs 2pcs Top left panel Left side panel Drawer bottom panel Top right panel Left main frame Right side panel Cabinet bottom panel Drawer front panel Right main frame...
- Page 4 1. Insert part M into frames P1 and P2. 1. Attach panel 7 to frame P1 with parts D and L. 2. Attach panel 8 to frame P2 with parts D and L.
- Page 5 1. Attach panels 7 and 8 to frames P3 and P4 with parts E and F. 2. Attach frame P5 to frames P1 and P2 with parts E. 1. Attach frame P6 to frames P4 and P5 with parts B, C and L.
- Page 6 1. Separate part G1 andG2 (runners) as shown below. 2. Attach part G1 to panels 4 and 5 with part H. 1. Insert parts A and J into panels 2 and 3.
- Page 7 STEP 7: 1. Attach panels 4 and 5 to panel 3 with part I. 2. Slide panel 6 along slots of panels 4 and 5. 3. Attach panel 2 to panels 4 and 5 with parts A and J. STEP 8: 1.
- Page 8 STEP 9: 1. Attach panel 1 to frames P1, P3 and P4 with parts D and E. STEP 10: 1. Attach cabinet 3 to frames P3 and P4 with parts D and E.
- Page 9 STEP 11: 1. Attach panels 10 and 11 to panel 12 with part I. 2. Slide panel 13 along slots of panels 10 and 11. STEP 12: 1. Insert part A into panel 9. 2. Attach panel 9 to panels 10 and 11 with part A.
- Page 10 STEP 13: 1. Attach part G2 to panels 10 and 11 with part H. STEP 14 1. Install drawer into the cabinet. Ensure runners are correctly aligned.
- Page 11 STEP 15: Install Tip Kit 1. Attach part N to panel 1 with part H. 2. Attach part N to the wall with part O. STEP 16 Assembly complete!
