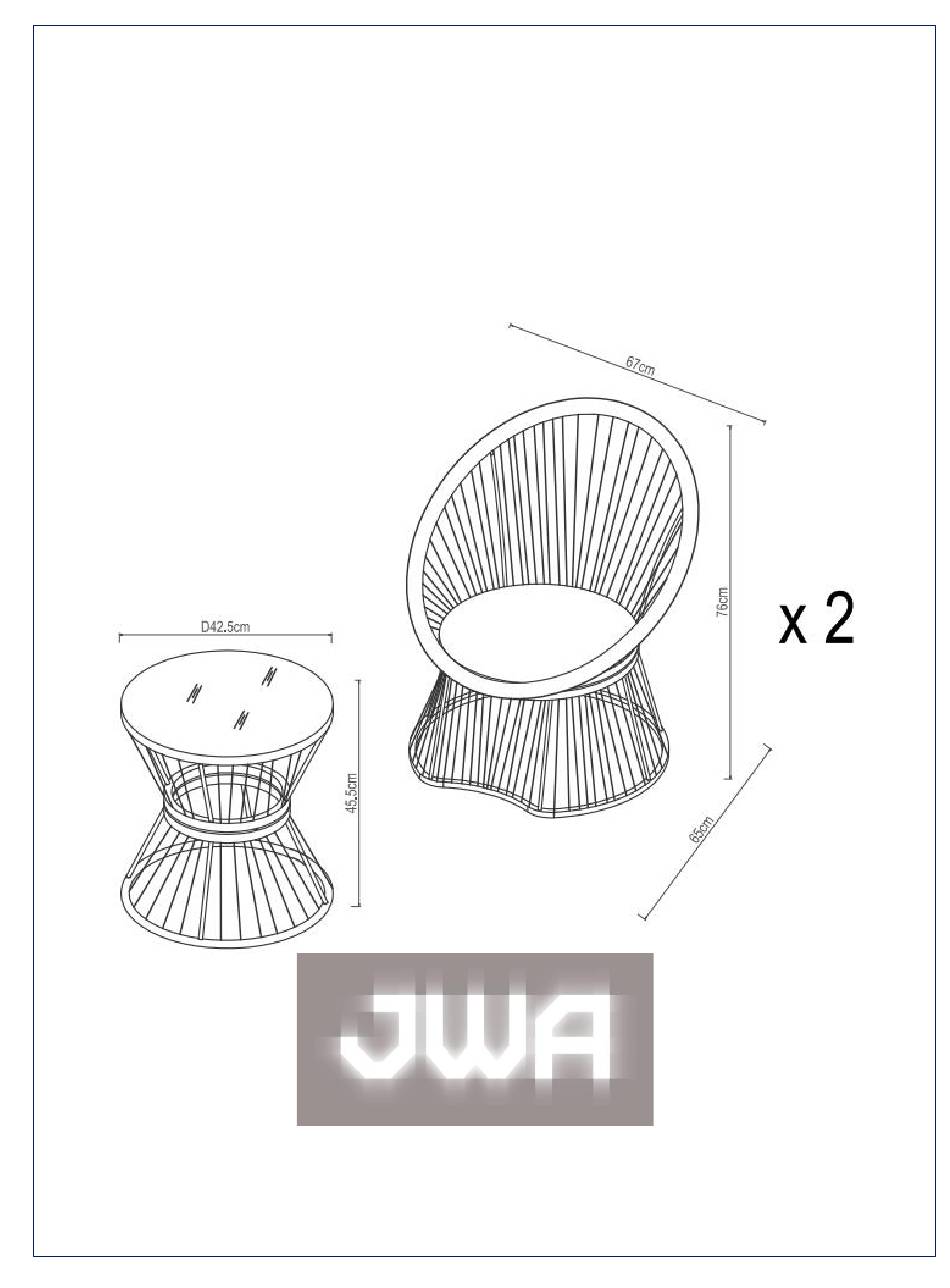

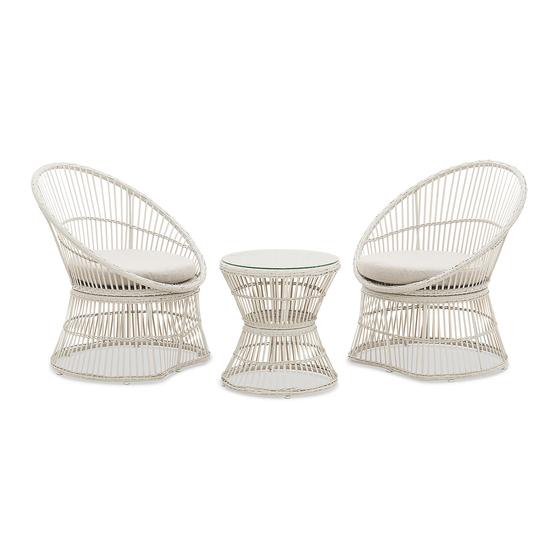

- Page 1 ASSEMBLY INSTRUCTION ORTIZ 3 Pce Setting ITEM CODE:71289/72190/71291 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of 3. Ensure that you have all required contents for complete assembly 4. - Page 3 PARTS LIST...
- Page 4 PARTS LIST...
- Page 5 Part 1：Side Table You will need the following Step 1 • Prepare a floor or benchtop with a protective blanket or cardboard. • Attach lower part (5) to upper part (4), secure with bolt (D), thread through washer (C). Fasten with Allen Key (B).
- Page 6 You will need the following Step 2 • Turn over the table frame and place glass (3) on top • Glass is secured on table with suckers.
- Page 7 Assembly is complete...
- Page 8 Part 2: Chair You will need the following Step 1: • Attach lower part (2) to upper part (1), secure with bolt (A), thread through washer (C). Fasten with Allen Key (B). • Repeat for all 4 connection points.
- Page 9 Assembly is complete...
