3.0 GENERAL INFORMATION

The CROSSFIRE monitor is the most rugged and innovative deck/portable master stream device ever offered to the fire service.
Attachment of the CROSSFIRE to the base is quick, easy, positive, and can be visually verified. The release mechanism is locked
out by water pressure. The rotation lock is a simple lever which securely holds the CROSSFIRE monitor in position. An automatic
drain allows water to drain from the monitor when not in use.

3.1 VARIOUS MODELS AND TERMS

The CROSSFIRE Portable Monitor is an efficient, compact and easy to maneuver portable monitor. This monitor can be mounted in
a pre-connected state on the truck-mounting bracket for achieving quick and effective initial attack.

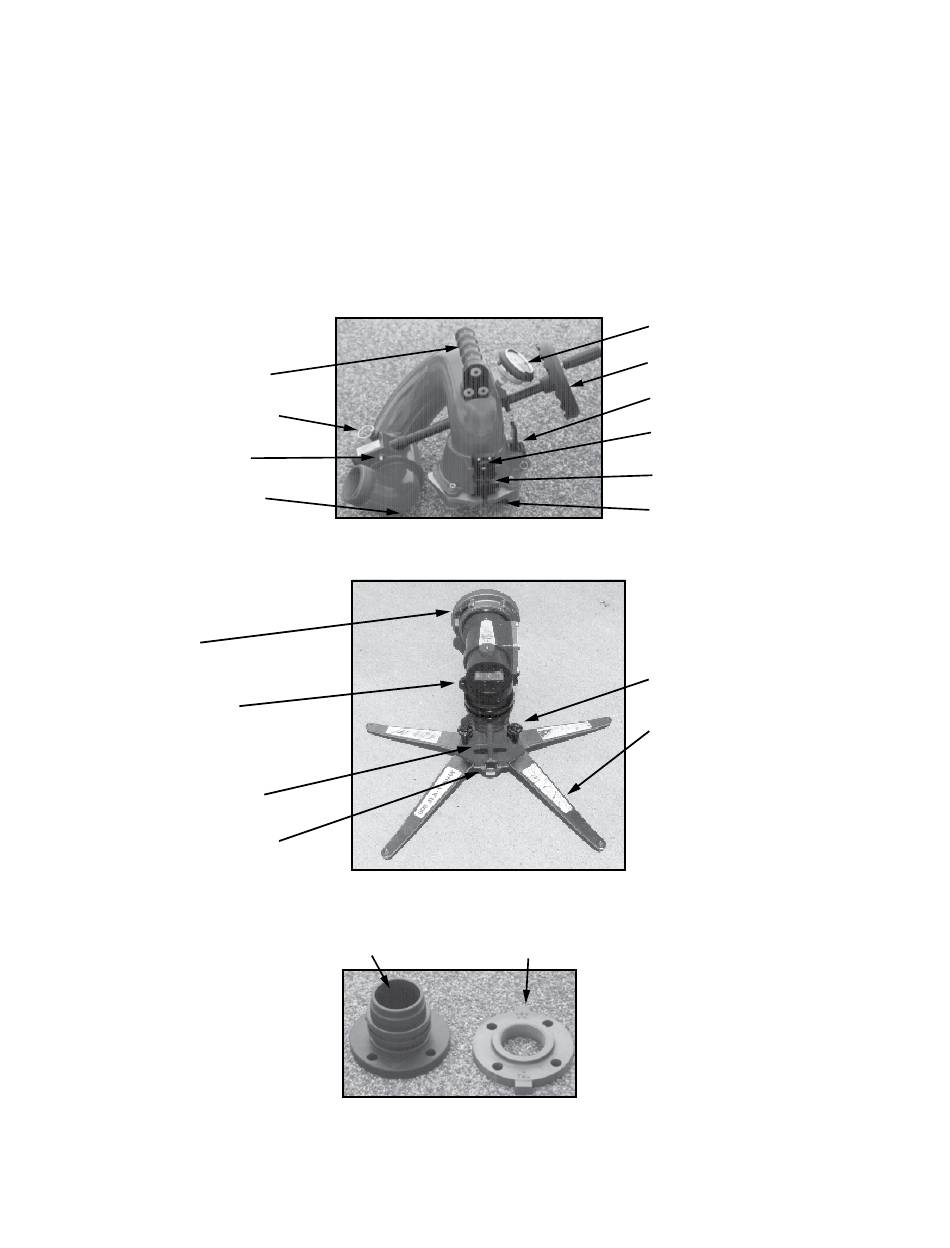

The CROSSFIRE monitor is available in several different models and inlet connections. Figures 3.1.1, 3.1.2, & 3.1.3 show the
CROSSFIRE monitor, STOW-A-WAY 800 portable base, truck mount adapter and identifies the various parts and controls.
CROSSFIRE
MONITOR
Carrying Handle
Elevation Pin Stop
Grease Fitting
Automatic Drain
STOW-A-WAY 800
BASE
Inlet
Anchor Strap
& Storage Cover
Carrying Handle
©Copyright Task Force Tips LLC 1999-2018
Anchor
Attachment Point
Truck Mount
Adaptor
Figure 3.1.1
Figure 3.1.2
Companion
Flange
Figure 3.1.3
6
Pressure Gauge
Elevation Control
Rotation Lock
Safety Plunger
Slide Bar
Pawls
Leg Lock Knob
Stainless Steel Leg
