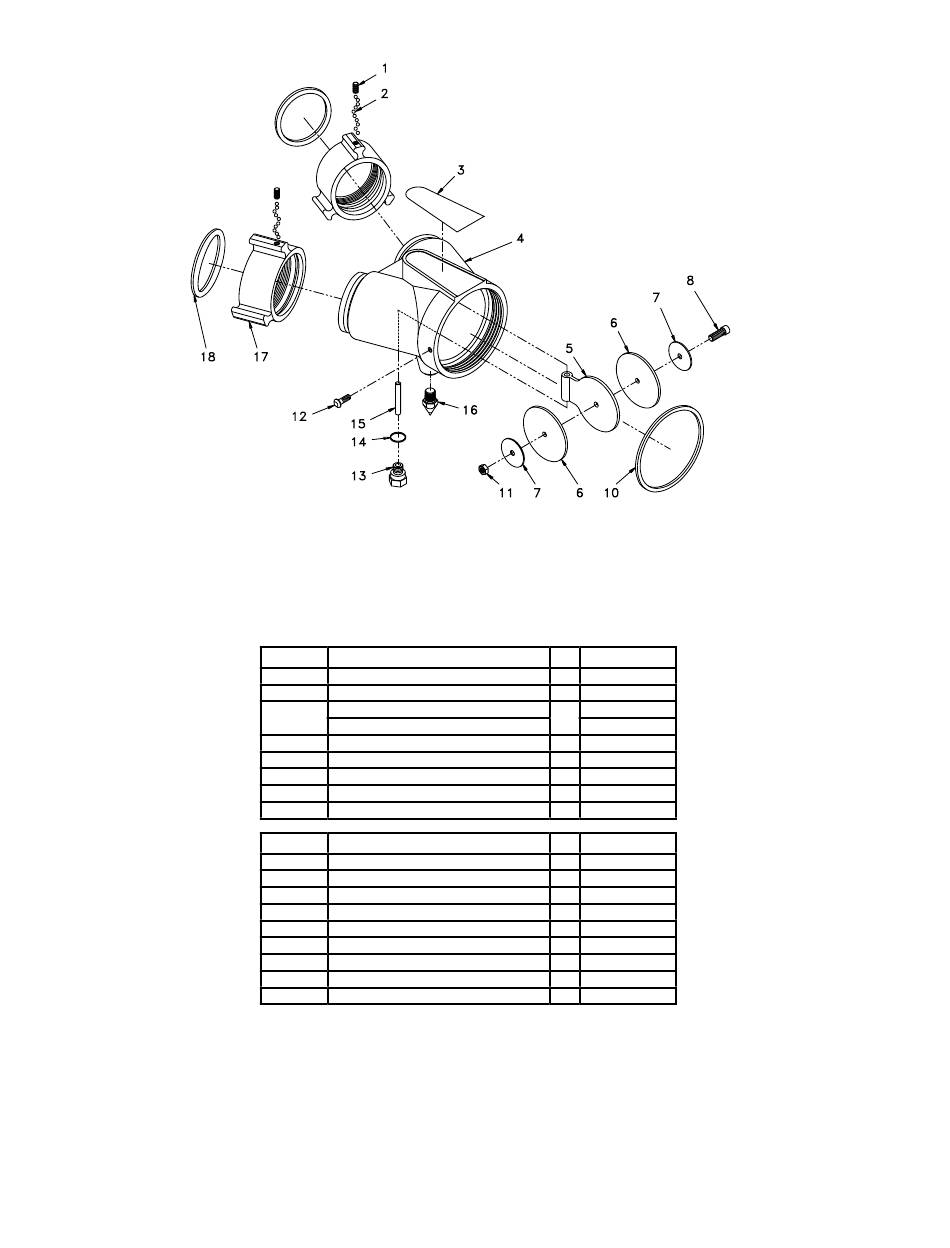

8.5 DOUBLE INLET OPTION

©Copyright Task Force Tips LLC 1999-2018
INDEX DESCRIPTION
1 1/4-28 x 1/2 SOCKET SET
2 3/16 SS BALL
SAFETY VALVE BASE LABEL
3
NO VALVE BASE LABEL
4 2.5" WYE
5 2.5" CLAPPER
6 2.5" CLAPPER GASKET
7 WASHER
8 1/4-20 x 1 SHCS, SS
INDEX DESCRIPTION
10 O-RING-244
11 1/4-20 STAINLESS NUT
12 1/4-28 X 3/4 BUTTON HEAD
13 PIVOT BOLT
14 O-RING-013
15 CLAPPER PIVOT
16 REAR SPIKE
17 2.5" NH COUPLING (pictured)
18 2.5" COUPLING GASKET (pictured)
QTY ITEM #
2 VT25-28SS500
96 V2120
XL080
1
XL085
1 X712
1 X772
2 X762
2 VW1.9x26-076
1 VT25-20SH1.0
QTY ITEM #
1 VO-244
1 VT25-20NT
1 VT25-28BH750
1 X784
1 VO-013
1 X732
1 X482
2 M307N
2 V3190
20
LIX-040 May 30, 2018 Rev10
