Page 10 of 31
KD-VPHD2 User Manual
Be sure your KD-VPHD2 is turned off and unplugged from its power source before
attempting to connect your equipment to the Inputs and Outputs of this unit

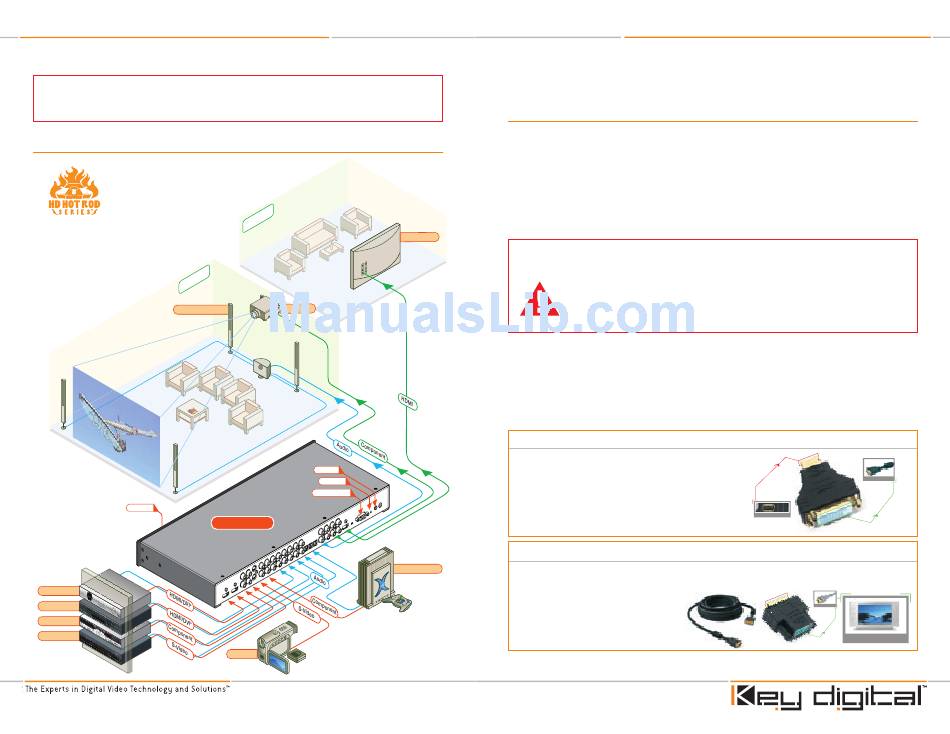

Typical Application of your KD-VPHD2 in a Home Theater
n e
Z o
Surround Sound
Optical IR
Cable Box
DVD Player
DVR Player
VCR
1
n e
Z o
1
Projector
Wired IR
Optical IR
RS232 Control
KD-VPHD2
*To connect DVI-D Video use
HDMI < > DVI adapter cables
DV Cam
*DVI connection requires
separate Audio
Connect your equipment to the Inputs and Outputs of
your KD-VPHD2
a. Connect your Digital Video Inputs:
Be sure your KD-VPHD2 is turned off and unplugged from its power source before attempting
to connect your equipment to the inputs of this unit. There are two (2) separately selectable
and customizable HDMI Digital Video plug-and-play inputs. HDMI supports audio and HDCP
copy protection. Note the 2 x HDMI Type A 19-pin connectors on the left side of the KD-VPHD2
rear panel.
Plasma TV
For proper operation, do not connect the external 6 Volt DC supply (provided) to the
back of the KD-VPHD2 Digital Video Processor and Video/Audio Switcher until:
➾
➾
If the equipment you would like to connect to your KD-VPHD2 has only DVI-D connectors, then
you should use Key Digital
VPHD2. Note that while HDMI supports both Video and Audio over an HDMI cable, DVI-D
supports Video only and will therefore require that you connect any audio source separately to
the KD-VPHD2.
DVI-D Sources
If your source does not support HDMI but has a DVI-D
output, you will need a DVI-D to HDMI Adapter at the
output of your source.
The Key Digital
is the perfect choice.
DVI-D Displays
Game Console
If your display does not support HDMI but has a DVI-D
input, you will need an HDMI to DVI-D Adapter at the
output of the KD-VPHD2.
The Key Digital
is the perfect choice.
KD-VPHD2 User Manual
All of your Video and Audio connections to the KD-VPHD2 are complete (as
described in the Operating Instruction Manual included with your unit), and
You have set the rear-panel Mode switch to the "Normal" mode.
™
HDMI / DVI-D adapters to connect your equipment to the KD-
™
DVI to HDMI Adapter
HDMI Connector
™
DVI to HDMI Adapter
Page 11 of 31
DVI Cable
HDMI Cable
Display
