HD Hanna
Digital Video Processor
OPERATING INSTRUCTIONS

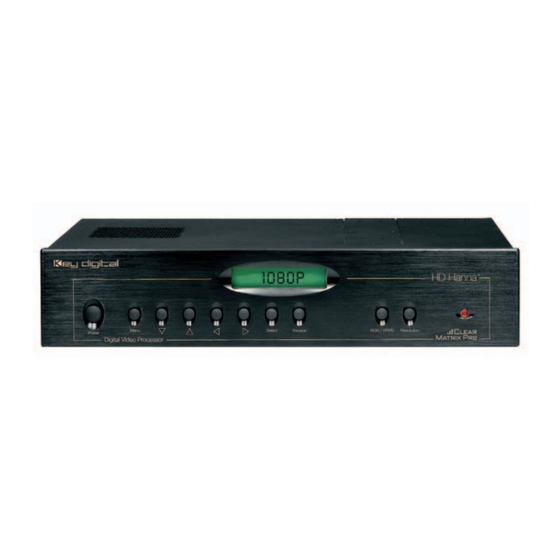

The new HD Hanna
Installation market by providing HD Set Top Box and Scaling function-
ality in one product, with high quality, versatility, and value. You'll
enjoy the added functionality of True Digital Path (Digital-In to Digital-
Out, including Firewire/5C) and the pristine picture from Key Digital's
renowned Scaler equipped with the proprietary, motion-assisted de-
interlacing algorithm Clear Matrix Pro
The Experts in Digital Video Technology and Solutions.
Model KD-FIRE1080P
TM
hits the "sweet spot" for the Custom
®
.
The Experts in Digital Video Technology and Solutions.
The Experts in Digital Video Technology and Solutions.
TM
®
Advertisement
Related Manuals for Key Digital KD-FIRE1080P
Summary of Contents for Key Digital KD-FIRE1080P
-
Page 1: Operating Instructions
You’ll enjoy the added functionality of True Digital Path (Digital-In to Digital- Out, including Firewire/5C) and the pristine picture from Key Digital’s renowned Scaler equipped with the proprietary, motion-assisted de- interlacing algorithm Clear Matrix Pro The Experts in Digital Video Technology and Solutions. - Page 2 Page 2 of 32 HD Hanna Operating Instructions HD HANNA – Digital STB/Scaler Model KD-FIRE1080P Safety Instructions – Please be sure to follow these instructions for safe operation of your unit Read these instructions. Keep these instructions. Heed all warnings.
- Page 3 3.2 Connect the A/V Inputs and Outputs to suit your particular 3.3 Place your HD Hanna 3.4 Make the final connections...11 3.5 Learn to operate HD Hanna 4. HOW TO CONTACT KEY DIGITAL 5. REPAIR AND WARRANTY ...23 APPENDICES Appendix A: HD Hanna...
- Page 4 It is rack-mountable, has no fan noise, and is easy to install and integrate into your home theater system The Experts in Digital Video Technology and Solutions. ” (Model KD-FIRE1080P) is a state-of-the-art ATSC/NTSC Set Top , MODEL , because it...
- Page 5 S-Video) input signals, and scale them to the native resolution of your display. HD Hanna incorporates a high-quality Scaler equipped with Key Digital’s motion-assisted de-interlacing algorithm called “Clear Matrix Pro” , that lets you up-, down-, and cross-convert the STB RF or baseband input to your display’s native resolution. HD...
- Page 6 Open the carton and you will find inside the following contents: One HD Hanna unit Standard power cord IR Remote Control with 2 AAA batteries included Rack mounting hardware: brackets, screws, and clips This Instruction Manual Warranty card The Experts in Digital Video Technology and Solutions. , MODEL KD-FIRE1080P...
- Page 7 3. QUICK SETUP OF HD HANNA Connecting and using your Key Digital Top Box and Scaler with flexible analog and digital I/O is straightforward: 1.Become familiar with HD Hanna 2.Determine your particular application requirements. 3.Connect the A/V Inputs and Outputs to suit your particular configuration.
- Page 8 Page 8 of 32 HD Hanna Operating Instructions When considering the type of configuration you require, you’ll need to know your Video and Audio Input and Output requirements. HD Hanna supports the following Video Inputs: • two IEEE 1394 5C-enabled Firewire I/O ports supporting HDTV and SDTV •...
- Page 9 3.2 Connect the A/V Inputs and Outputs to suit your par- ticular configuration First, become familiar with the I/O back panel, which is at the rear of your HD Hanna Note the back (rear) panel configuration of HD Hanna HD HANNA INPUTS The INPUTS to HD Hanna •...
- Page 10 Page 10 of 32 HD Hanna Operating Instructions HD HANNA OUTPUTS To the right of the Expansion Input slot is the DB-15 VGA (RGBHV) by-pass input, followed by the HD Hanna OUTPUTS towards the center when looking at the back panel, which include: •...
- Page 11 You first need to “Navigate” (learn to get to the functions you wish to configure and control) and then “Control” (actually invoke the set-up, function, or operation) your HD Hanna Navigating and Controlling your Key Digital with flexible analog and digital I/O is straightforward: 1.First, follow the Quick Set-Up instructions provided in this Operating Manual to physically...
- Page 12 “LEVEL 1” “LEVEL 2” The Experts in Digital Video Technology and Solutions. , Model KD-FIRE1080P into your system. ” as the unit goes through its power-up cycle. When you turn the , you will need to Navigate the OSD Menus with outputs.
- Page 13 Now, familiarize yourself with HD Hanna’s HD Hanna front-panel Pushbuttons and LCD Display Pushbutton Toggle Power On/Off Menu Down Pushbutton Menu (OSD & LCD) NAVIGATION Pushbuttons HD Hanna The front-panel LCD provides convenient indication of the status of your HD Hanna more detailed operations you will want to take advantage of the user-friendly On-screen Display menus and use the included IR Remote Control, but it is handy to have the capability to walk up to your HD Hanna...
-
Page 14: Ir Remote Control
Page 14 of 32 HD Hanna Operating Instructions HD Hanna IR Remote Control Examine the IR Remote Control included with your HD Hanna basic functionality for navigation and control, comparable to the control provided by the front- panel Pushbuttons. Then, you can learn the remote control “Hot Buttons” . At this time, you will want to focus on the simple navigation control buttons on the provided IR Remote Control: •... - Page 15 HD Hanna Power ON EPG Program Guide Channels above 99 Sub-channel OSD MENU OK, or “Select” INPUT Select DP [ignore “PA”] (DSUB pass-through) OR [ignore “12V”] (Output Resolution select) OC [ignore “SR”] (Output Color Space) BR (Brightness Control) CO (Contrast Control) SLEEP (auto power-OFF) AUDIO Select...
- Page 16 If you can not get output or resolution status to show on your display, recheck your connections from the output of the HD Hanna to your display. For further information please contact Key Digital at the email address or phone numbers list- ed in this manual.
- Page 17 • When you are in a Menu and have reached your desired selection, such as in the “SYSTEM SET” / “Resolution” / “1280x768p” example, then press the Select (front-panel) or OK (Remote Control) button to make and store your selection. •...
- Page 18 Page 18 of 32 HD Hanna Operating Instructions 6.Learn the “Hot” buttons on your Remote Control. In addition to Remote Control unit pushbuttons described above, and the VOL. +/- (Volume Up/Down), MUTE, and CH +/- (Channel Up/Down) pushbuttons, consider these “Hot” but- tons on the Remote Control provided with your HD Hanna cific menu adjustments: •...
- Page 19 Page 19 of 32 HD Hanna Operating Instructions HD HANNA OSD MENU STRUCTURE LEVELS 1 AND 2 NOTE: OSD Menus in this manual are illustrative -- the firmware version in your HD Hanna may produce Menus that vary slightly from these examples The Experts in Digital Video Technology and Solutions.
- Page 20 Page 20 of 32 HD Hanna Operating Instructions The actual Menus provided by the HD Hanna here. We will now look at the Level 1 Functions, and the corresponding Level 2 and 3 options. Remember, when you are Navigating within the Menus, the selected function has white text with blue highlighting on the OSD.
- Page 21 HD Hanna LEVEL 1: 3 - SYSTEM SET options “LEVEL 2” LEVEL 1: 4 - PICTURE ADJUSTMENT options LEVEL 1: 5 - AUDIO options “LEVEL 2” Operating Instructions “LEVEL 3” “LEVEL 2” “LEVEL 3” The Experts in Digital Video Technology and Solutions. The Experts in Digital Video Technology and Solutions.
- Page 22 Page 22 of 32 HD Hanna Operating Instructions LEVEL 1: 6 - FIREWIRE options LEVEL 1: 7 - TEST/RESET options Built-in Video Test Patterns available: V-Ramp, Color Bars, Gray Scale, Cross Hatch, White Window, and Black Window “LEVEL 2” “LEVEL 3” The Experts in Digital Video Technology and Solutions.
-
Page 23: How To Contact Key Digital
4. HOW TO CONTACT KEY DIGITAL Repairs and Warranty Service: Should your HD Hanna require warranty service, please contact Key Digital Returned Materials Authorization (RMA) number Please contact us at either: Toll-free 1-914-667-9700 email tech@keydigital.com Technical Support: For technical questions about using our products, please contact us at either: 1-914-667-9700 or Toll-free 1-888-258-2028 email tech@keydigital.com... -
Page 24: Appendix A: Hd Hanna
Page 24 of 32 HD Hanna Operating Instructions Appendix A: HD Hanna Product Summary Combination ATSC/NTSC Set Top Box and SD/HD Video Scaler that converts to any dis- play’s native resolutions, with flexible analog and digital (Firewire I/O with 5C, and DVI-D HDCP Output) ports Inputs •... - Page 25 Scaling and Processing • Scaling SDTV and HDTV to popular native resolutions and output formats of: - 1920x1080i, 1920x1080p, 1920x540p - 1400x1050p - 1368x768p, 1280x768p - 1280x720p - 720x480i and 720x480p - 1920 x 1080p @ 24 Hz • Scaler equipped with advanced, motion-assisted de-interlacing algorithm “Clear Matrix Pro” •...
- Page 26 Page 26 of 32 HD Hanna Operating Instructions Connectors • Input Video Connectors: - two F-type RF tuner inputs, both capable of ATSC (8 VSB) and analog TV (NTSC) - two sets of three BNC connectors for Component Video (YPbPr) - two S-Video connectors - two sets of BNC connectors for Composite Video (CVBS) - one VGA (RGBHV) DB-15 connector for video input bypass...
-
Page 27: Appendix B: Firmware Upgrade Instructions
PC using a standard RS-232 cable. The files you will need to perform any upgrades are available via e-mail by contacting us at tech@keydigi- tal.com, or you can download them from our Key Digital http://www.keydigital.com/downloads/FIRE1080Pupgrade.zip... -
Page 28: Appendix C: Controlling Hd Hanna
Page 28 of 32 HD Hanna Operating Instructions Appendix C: Controlling HD Hanna from your Home Theater Automation System For integration with your existing equipment, your HD Hanna unit can be conveniently con- trolled from your existing Home Theater Automation System (like Crestron, AMX, or CNMSX- Pro) by using the discrete command protocol. - Page 29 Page 29 of 32 HD Hanna Operating Instructions The Experts in Digital Video Technology and Solutions. The Experts in Digital Video Technology and Solutions.
- Page 30 Page 30 of 32 HD Hanna Operating Instructions See an Example of the commands on the following page. The Experts in Digital Video Technology and Solutions.
- Page 31 *Note: make sure you are not running any other active program using COM1, such as the “Hot Sync” Palm program WTurn ON the Power to your HD Hanna [ENTER]. You will be prompted with: Key Digital HD Hanna ® HDHanna>...
- Page 32 Operating Instructions www.keydigital.com Phone 914-667-9700 The Experts in Digital Video Technology and Solutions. Key Digital , led by digital video pioneer Mike Tsinberg, ® develops and manufactures high quality, cutting-edge technology solutions for virtually all applications where high quality video imaging is important. Our products are used by professional broadcasters, corporations, custom installers, home theater retailers, and consumers.
