Cabinet: 15pol DSUB). After connecting the Handheld, push the Redraw button once. The start-

up screen, that shows the installed software version is displayed for a few seconds. After that the

menu for controlling the antenna is displayed automatically.

Operation

pushing the -button

the setup-screen), large steps: 10*x°/keypress, continuous mode: the antenna moves as

long until the -button is pushed or a limit switch or limit value is reached.

6 Frontpanel operation

The rack mountable version of the sat-nms ACU provides a LCD and a small keyboard at the

front panel for operating the device locally as an option. The capabilities of the front panel

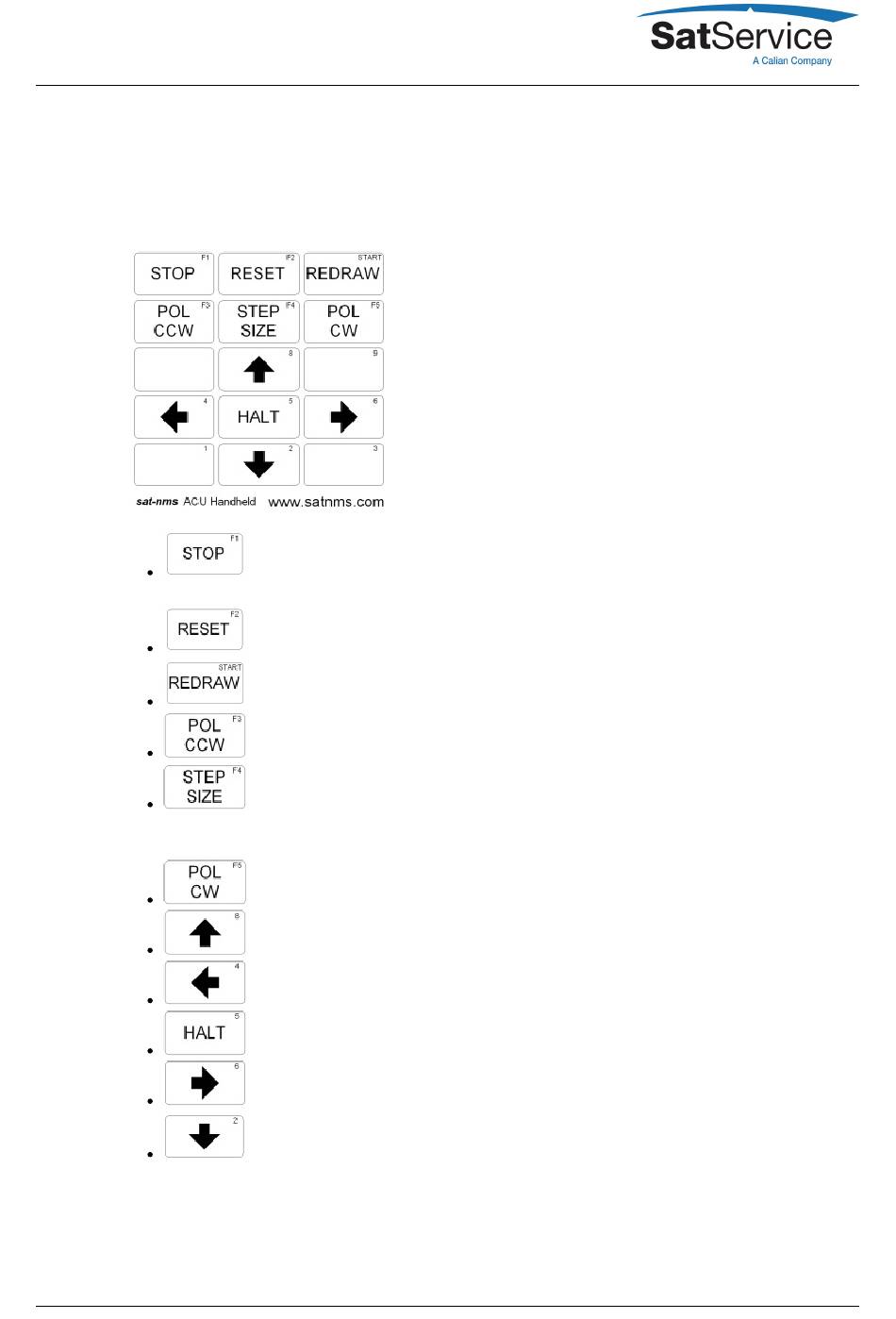

--- Emergency STOP, stops all Motors immediately, it has to be released by

--- Releases the motor-lock that was set by pushing the STOP-button.

--- Back to start screen

--- Turns the polarisation counterclockwise

--- Selects the step-size: small steps: x°/keypress (x is the value that was set on

--- Turns the polarisation clockwise

--- Moves the antenna up (EL)

--- Moves the antenna to the left (AZ)

--- Stops the antenna movement (only in continuous mode)

--- Moves the antenna to the right (AZ)

--- Moves the antenna down (EL)
