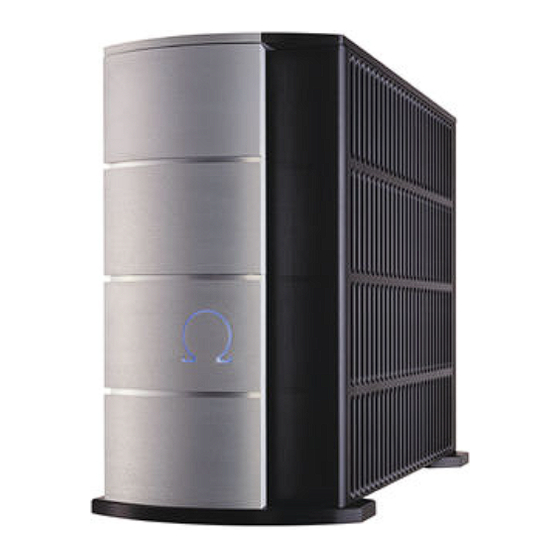

- Page 1 OWNERS MANUAL OMICRON MONO POWER AMPLIFIER...
-
Page 2: Table Of Contents
Contents ... 3 Safety Precautions ... 4 Introduction ... 5 Congratulations ...5 How to use this manual ...5 Classé Omicron Monaural Power Amplifier: Design Overview ...6 Unpacking and Positioning ... 7 Contents ...7 Positioning the Omicron Monaural Power Amplifier...8 Connections... 9 AC power...10 Analog inputs ...11 Infrared (IR) input and output ...12... -
Page 3: Safety Precautions
Safety Precautions Warning: failure to comply with these safety instructions can cause serious injury or death, or cause your Classé Omicron Monaural Power Amplifier to be severely damaged or destroyed. Do not operate the Classé Omicron Monaural Power Amplifier with any portion of the chassis removed or open. -
Page 4: Introduction
Congratulations How to use this manual Introduction Congratulations on your new purchase. From all of us at Classé, we hope you enjoy many years of musical satisfaction from your new Classé Omicron Monaural Power Amplifier. The symbol at left indicates a section of the manual that is of particular importance for safety or to prevent damage to your Omicron Monaural Power Amplifier. -
Page 5: Classé Omicron Monaural Power Amplifier: Design Overview
Classé Omicron Monaural Power Amplifier: Design Overview The Classé Omicron Monaural Power Amplifier is the result of repeated listening sessions. The sound is fine tuned by the exchanging and mixing of parts and the adjusting of many specific operating voltages. The result of these sessions is a sonic recipe that yields a natural harmonic realism typical of instruments in a live performance. -
Page 6: Unpacking And Positioning
Unpacking and Positioning Contents Unpack your Omicron Monaural Power Amplifier carefully. If you notice any shipping damage, contact your dealer immediately. Saving the packaging material is advised in case the unit needs to be shipped for service. Included in the case should be the following items: 1. -
Page 7: Positioning The Omicron Monaural Power Amplifier
Positioning the Omicron Monaural Power Amplifier For best performance, place your Omicron Monaural Power Amplifier on a solid, non-resonant surface. Do not place the Omicron Monaural Power Amplifier directly on top of another component. Place the Omicron Monaural Power Amplifier near its final set-up position, allowing 8 inches of clearance at the rear for tightening the speaker output connectors. -
Page 8: Connections
Connections Pictured here is the rear of the Omicron Monaural Power Amplifier showing all input and output connections. Refer to the page number indicated for more information on these connections. Analog Inputs Speaker Outputs IR IN & OUT AC Power Input... -
Page 9: Ac Power
AC power Check that the AC voltage for which this unit is configured matches your local AC line voltage. The correct operating voltage is indicated on the rear of the chassis, adjacent to the AC power inlet. Operating this unit on AC voltage other than that specified on the rear of the unit can damage or destroy this unit and increase the risk of electric shock. -
Page 10: Analog Inputs
Analog inputs The Omicron Monaural Power Amplifier has both balanced (XLR) and single-ended (RCA) inputs. Both types of inputs have been carefully optimized to give the best possible performance. However, the most realistic and natural sonic quality is obtained by using the balanced inputs on your amplifier. -
Page 11: Infrared (Ir) Input And Output
Infrared (IR) input and output The Omicron Monaural Power Amplifier is equipped with “ mini- plug connectors that allow the unit to directly receive and transmit remote IR commands. These connectors can be used with equipment that receives IR commands and converts them for transmission on copper wire. -
Page 12: Operation
Turning on AC power Protection mode Operation This section describes the operation of the Omicron Monaural Power Amplifier. The Omicron Monaural Power Amplifier is turned on by means of a power switch located on the left side of the unit. Do not turn the AC power on until all connections have been made. -
Page 13: Protection Mode Continued
Protection mode continued When the Omicron Monaural Power Amplifiers protection circuitry is triggered the unit will enter the protection mode. The Omega LED indicator on the amplifier front panel will FLASH red. Power OFF the amplifier by unplugging the unit. Please note that once your Omicron Monaural Power Amplifier enters the protection mode the Power Switch will not function. -
Page 14: Specifications
Main Unit Dimensions Shipping Case Dimensions Frequency Response Sensitivity Input Impedance Output Impedance Gain S/N Ratio THD+N Rated Output Specifications Width: 10.0 inches Height: 16.5 inches Depth: 19.5 inches Weight: 108 lbs Width: 28 inches Height: 18 inches Depth: 26 inches Weight: 135 lbs 20Hz to 20Khz +/- 0.1dB... -
Page 15: Ce Certification
CE Certification As of July 18, 1996, Classé Audio has been granted: Certificate Number: C401CLA1.MGS This indicates CE approval for all models of the Classé product line. This means that your Classé product has been subjected to the most rigorous manufacturing and safety tests in the world, and has proven to meet or exceed all European Community CE requirements. -
Page 16: Warranty And Service
Warranty and Service For warranty service, contact your Classé dealer or Classé Audio directly at: Classé Audio 5070 Francois-Cusson Lachine, Québec Canada H8T 1B3 Telephone: 514 636 6384 Fax: 514 636 1428 Email: cservice@classeaudio.com Web site: http://www.classeaudio.com...
