Summary of Contents for Classe Audio CAV-75

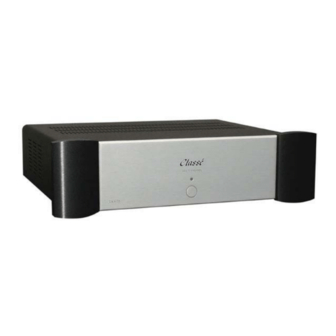

- Page 1 CLASSÉ AUDIO CAV-75 MULTI-CHANNEL POWER AMPLIFIER CAV-75 OWNER'S MANUAL...
- Page 2 CLASSÉ DESIGN PHILOSOPHY 1. REPEATED LISTENING DESIGN SESSIONS: Fine tuning of sound by exchanging and mixing of parts (transistors, capacitors, wiring, PCB boards etc.), and adjusting many specific operating voltages within proper engineering ranges, producing an overall sonic recipe giving the most natural harmonic realism of music typical of instruments in a live performance.
-
Page 3: Table Of Contents
CAV-75 OWNER'S MANUAL TABLE OF CONTENTS UNPACKING & SET-UP............4 GENERAL CONNECTIONS AND OPERATIONS ....5 CONNECTIONS AND DIAGRAMS ......... 7 PROTECTION CIRCUIT............10 SPECIFICATIONS ..............12... -
Page 4: Unpacking & Set-Up
Please report any damage or missing parts to your dealer as soon as possible. Place the CAV-75 at or near its final set-up position, allowing 8 inches at the rear for tightening the speaker output connectors. For optimum sonic performance, we recommend the optional . -
Page 5: General Connections And Operations
Input and output connectors for each channel are clearly grouped and marked on the back of the amplifier. (Units are preset at the factory for NORMAL.) See fig.3a, 3b for typical connections of the CAV-75. Use only high quality interconnect and loudspeaker cables, and make all connections tight. If the input plugs are loose, remove them and pinch down the ground leaves slightly with pliers. - Page 6 BRIDGED OPERATION: The six (6) channels of the CAV-75 are divided into three (3) groups. These groups can be operated and configured independently _ Channel-1 with Channel-2, Channel-3 with Channel-4, and Channel-5 with Channel-6. When in bridged mode, the inputs of CH-1, CH-3 and CH-5 are used respectively (as marked above the jacks).
-
Page 10: Protection Circuit
PROTECTION CIRCUIT The Classé CAV-75 is equipped with rail fuses to protect the output drivers (see fig.1, page 7) and mosfet fuses to protect the mosfets, which are used as pre-drivers for the output stage of the amplifier. In the event that a short circuit or other problems would occur at the output of the amplifier, either or both of these fuses may blow in an attempt to protect the amplifier. - Page 11 CLASSÉ AUDIO 5070 Francois-Cusson Lachine, Quebec Canada H8T 1B3 Telephone: 514 636 63 85 Fax: 514 636 14 28...
-
Page 12: Specifications
CLASSÉ CAV-75 MULTI-CHANNEL 6-CHANNEL POWER AMPLIFIER FEATURES SPECIFICATIONS SHEET CAV-75 FEATURES: 6-Channel Power amplifier 75 watts/channel, switching capability for different channel configurations. Custom Classé internal heat sinks, thick curved faceplate with sculpted one piece handles. Available in both Satin Black, and Soft Shadow Silver finishes. - Page 13 Notice to all Classé Product owners: Thank your purchase Classé Audio component. All of us at Classé have taken extreme care to ensure that your purchase will become a prized investment. proud inform that Classé Audio components have been officially approved European Community CE mark.
