Summary of Contents for Classe Audio CA-150

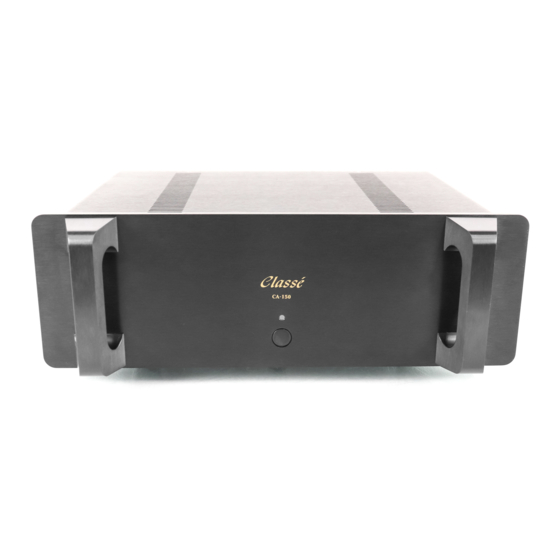

- Page 1 CLASSÉ AUDIO CA-150 POWER AMPLIFIER CA-150 OWNER'S MANUAL...
- Page 2 CLASSÉ DESIGN PHILOSOPHY 1. REPEATED LISTENING DESIGN SESSIONS: Fine tuning of sound by exchanging and mixing of parts (transistors, capacitors, wiring, PCB boards etc.), and adjusting many specific operating voltages within proper engneering ranges, producing an overall sonic recipe giving the most natural harmonic realism of music typical of instruments in a live performance.
-
Page 3: Table Of Contents
CA-150 OWNER'S MANUAL TABLE OF CONTENTS UNPACKING & SET-UP..............4 GENERAL CONNECTIONS.............. 5 CONNECTIONS FOR REGULAR OR BALANCED INPUTS..7 WARRANTY ..................10 WARRANTY REGISTRATION ............12 SPECIFICATIONS ................13... -
Page 4: Unpacking & Set-Up
Please report any damage or missing parts to your dealer as soon as possible. Place the CA-150 at or near its final set-up position, allowing 8 inches at the rear for tightening the speaker output connectors. For optimum sonic performance, we recommend the optional CLASSÉ... -
Page 5: General Connections
GENERAL CONNECTIONS A.C. LINE Insert the linecord into the A.C. receptacle on the rear of the unit. CAUTION: SAFETY INSTRUCTIONS DISCONNECT AC LINE CABLE WHILE MAKING ALL CONNECTIONS. "FLOATING THE GROUND", OR DEFEATING THE GROUND ON A 3-PRONG LINECORD MAY CREATE A SHOCK HAZARD. - Page 6 The MONO "Input" is the "left channel input", as marked. The unused right channel input is automatically disconnected. MONO output connections are marked below the connectors. Repeat the above MONO settings and connections on the second CA-150 to be used for the other channel.
-
Page 7: Connections For Regular Or Balanced Inputs
CONNECTIONS FOR REGULAR OR BALANCED INPUTS: The CLASSÉ CA-150 power amplifier is equipped with both regular and balanced inputs. Either one may be used . The balanced inputs must be connected to a SEPARATELY BUT NOT SIMULTANEOUSLY preamplifier which has balanced main outputs, and balanced interconnects with connectors are "XLR"... - Page 8 Having confirmed the correct connections, plug the connectors of the balanced interconnects into the locking connectors on the rear panel of the CA-150. (To remove the connectors, press the tab above the connector.) MONO OPERATION As stated before, regular or balanced inputs can be used in stereo or mono. Connect a single interconnect, either regular or balanced, to the left channel input of each amplifier.
-
Page 10: Warranty
CLASSÉ CA-150 LIMITED FACTORY WARRANTY (North America only). IMPORTANT: Warranty registration, and a copy of the “Authorized Dealer Bill of Sale” must be received at the Classé Audio factory (address: pages 12) within thirty (30) days of purchase by the original retail purchaser in order to validate these warranty. -
Page 11: Warranty Registration
CLASSÉ AUDIO INC. SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING FROM OR RELATING TO THE SET-UP, OPERATION, FAILURE, TROUBLESHOOTING, OR REPAIR OF THE AMPLIFIER AND/OR ANY OTHER EQUIPMENT USED THEREWITH. THIS WARRANTY, ALL CLAIMS MADE IN VIRTUE HEREOF, AND ALL ISSUES RELATING TO ANY SUCH CLAIM SHALL BE GOVERNED BY THE LAWS OF THE PROVINCE OF QUÉBEC. - Page 12 (30) days of purchase. This will allow us to provide expedient service, information regarding updates and new products, and validate the Classé warranty. ¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦¦ ¦¦¦ CA-150 SERIAL NUMBER_____________________PURCHASE DATE_____________________ AUTHORIZED DEALER________________________________________________________ PURCHASER'S NAME_________________________________________________________ STREET ADDRESS____________________________________________________________ CITY________________________________STATE/PROV.____________________________...
-
Page 13: Specifications
CLASSÉ CA-150 STEREO BALANCED POWER AMPLIFIER SPECIFICATIONS SHEET CA-150 FEATURES: 150 watts stereo, 325 watts mono, high current, sleek curved chassis with large dual heat sinks at rear, both regular and balanced inputs externally switchable, sculpted one piece handles. Available in both Satin Black and Soft Shadow Silver finishes. - Page 14 Net: 47 lbs. Notice to all Classé Product owners: Thank you for your purchase of a Classé Audio component. All of us at Classé have taken extreme care to ensure that your purchase will become a prized investment. are proud to inform you that all Classé Audio components have been officially approved for the European Community CE mark.
