HDMI 4x1
Operating Instructions
TM
•

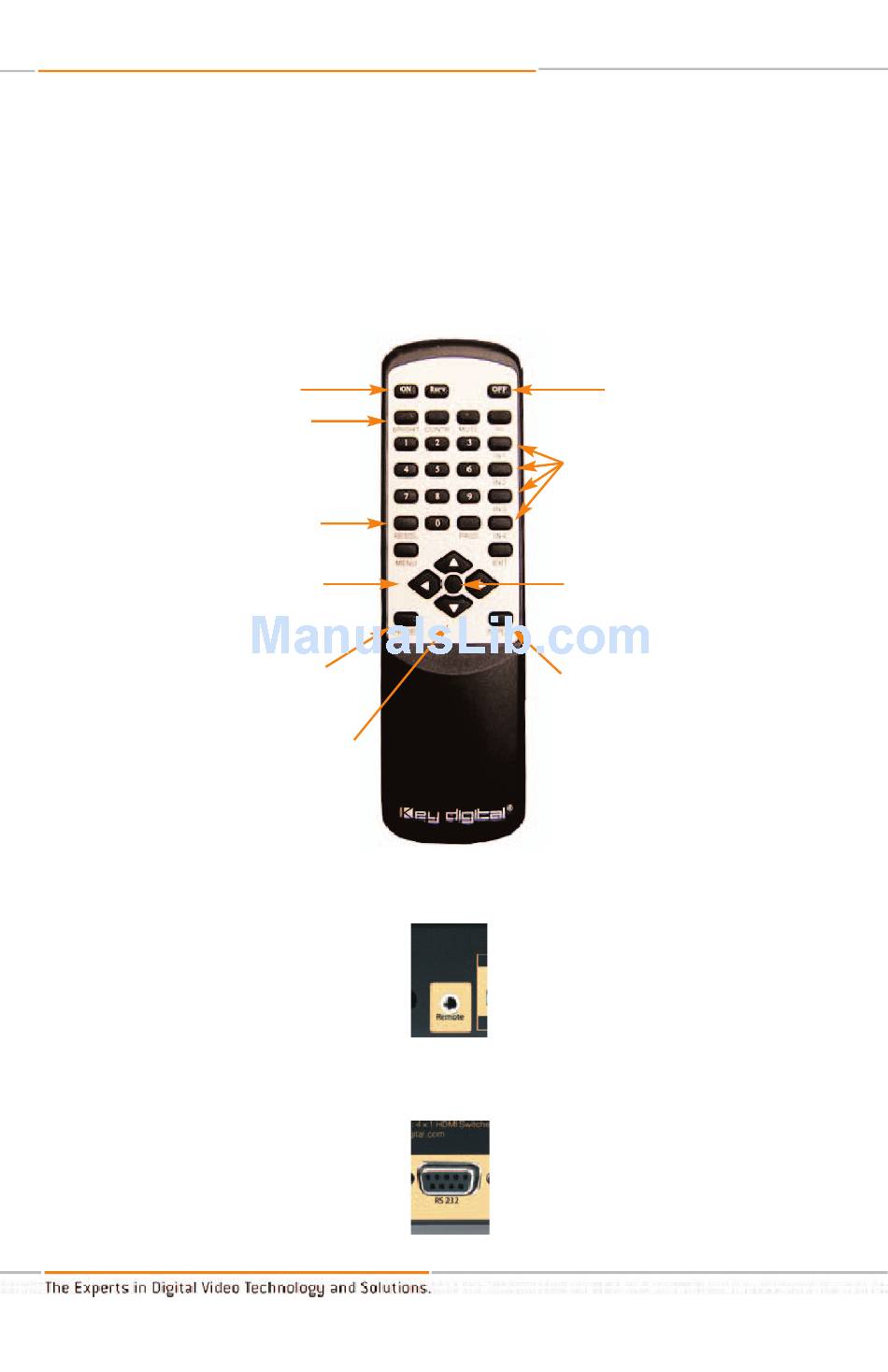

IR Remote Control (discrete commands are available). Always be sure there is a clear line-
of-site from the hand-held IR Remote Control and the IR detection lends at the front right
panel of your HDMI 4x1
"Hot Buttons"
that bring you
directly to the Menu functions
"Resolution"
Allows you to select
the desired output resolution
The
LEFT
and
RIGHT
allow you to scroll through the dif-
ferent "Menus"
Cycle through and switch any
Input
1 - 4 to the Output
The
UP
and
DOWN
you to scroll through the different
"options" or selections, for the
given menu
•
Wired (rear-panel) remote input.
•
RS-232 (Crestron, CNMSX-PRO, AMX compatible)
TM
Switcher unit.
ON
arrows
arrows allow
OFF
Input Selects
Allow you to switch any Input
1 – 4 to the Output
The
Select
pushbutton allows
you to invoke the Menu or
Option selection
"Aspect"
Allows you to select
the desired output Aspect
Ratio processing
