Q6SP-090 (7 1/2) & -120 (10 Ton) Series
USER'S MANUAL
Single Package Heat Pump Rooftop Unit
IMPORTANT! Please read all information in this manual thoroughly and become familiar with the capabilities and use
of your appliance before attempting to operate or maintain this unit. Pay attention to all safety warnings and any other
special notes highlighted in the manual. Safety markings are used frequently throughout this manual to designate
a degree or level of seriousness and should not be ignored. WARNING indicates a potentially hazardous situation
that if not avoided, could result in personal injury or death. CAUTION indicates a potentially hazardous situation that
if not avoided, may result in minor or moderate injury or property damage. Keep this literature where you have easy
access to it in the future. If a problem occurs, check the instructions and follow recommendations given. If these
suggestions don't eliminate your problem, call your servicing contractor. Do not attempt to service this unit yourself!
• Under no circumstances should the appliance owner attempt to install and/or service this
equipment. Some local codes require licensed installation / service personnel for this
type of equipment. Improper service, adjustment, or maintenance may cause explosion,
fire, electrical shock or other hazardous conditions which may result in personal injury or
property damage.
• Read these instructions thoroughly before using the equipment. Follow all precautions and
warnings contained within these instructions and on the unit.
• Improper installation, adjustment, alteration, service, or maintenance can cause personal
injury or property damage. Refer to this manual. For assistance or additional information,
consult a qualified installer or service agency.
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
DO NOT DESTROY. PLEASE READ CAREFULLY AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.
WARNING:
!

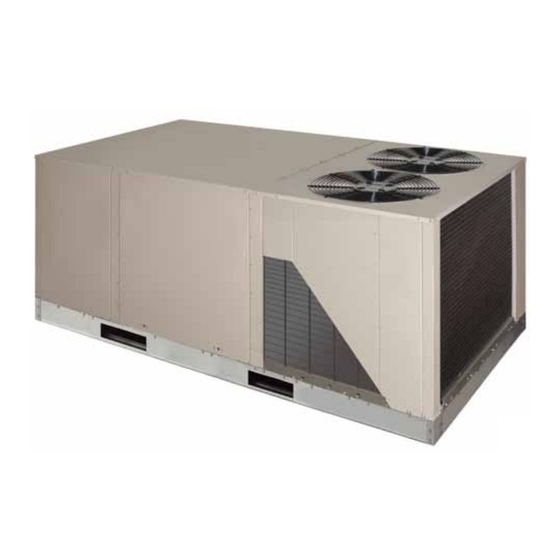

Q6SP-090 Shown
Advertisement
Table of Contents
Related Manuals for Nortek Q6SP-090 Series
Summary of Contents for Nortek Q6SP-090 Series
- Page 1 Q6SP-090 (7 1/2) & -120 (10 Ton) Series USER’S MANUAL Single Package Heat Pump Rooftop Unit IMPORTANT! Please read all information in this manual thoroughly and become familiar with the capabilities and use of your appliance before attempting to operate or maintain this unit. Pay attention to all safety warnings and any other special notes highlighted in the manual.
- Page 2 AbOUT THE HEAT PUMP exposed insulation materials. Examine the unit’s area when it is installed or when insulation is added, since Your heat pump is a unique, all weather comfort-control some insulation materials may be combustible. appliance that will heat and cool your building year round •...
- Page 3 Heating Operation (2 or 3 Stage) 2 individual refrigerant systems + Electric Heat (if installed) 1. Set the thermostat system mode to Heat and the thermostat fan mode to AUTO (See Figure 1). 2. Raise the thermostat temperature switch above room temperature and observe that the outdoor fans, compressor(s), and indoor blower all cycle on and off.
- Page 4 • Filters must be ULC approved or equivalent for use in Canada. Specifications & illustrations subject to change without notice or incurring obligations (05/15). O’Fallon, MO, © Nortek Global HVAC LLC 2015. All Rights Reserved. 708760A (Replaces 7087600)
