cashco P1 Installation, Operation & Maintenance Manual

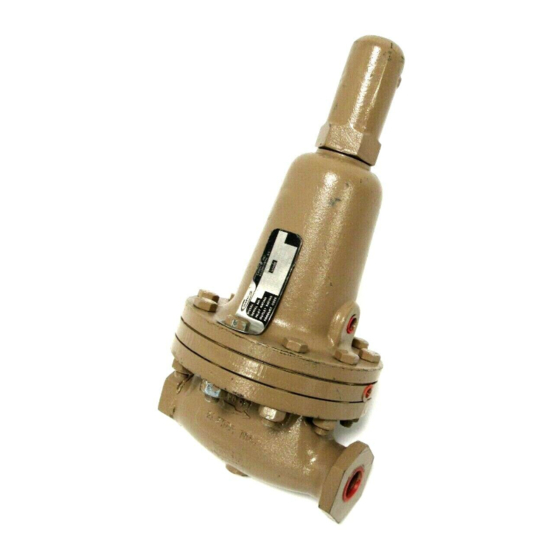

Single stage pressure reducing regulator
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

ISO Registered Company
I. DESCRIPTION AND SCOPE
The Model P1 is a pressure reducing regulator used to control downstream (outlet or P
and 3/8" (DN8 and DN10) FNPT or 1/2" (DN15) with Tri-Clamp connections. The unit is suitable for gaseous or liquid
services. Refer to Technical Bulletin P1-TB for design conditions and selection recommendations.
II. INSTALLATION
Installation of adequate overpressure pro tec tion
is recommended to pro tect the reg u la tor from
over pres sure and all down stream equip ment from
dam age in the event of regulator failure.
1. An inlet block valve should always be installed.
2. If service application is continuous such that
shut down is not readily accomplished, it is rec-
ommended that an inlet block valve, outlet block
valve, and a manual bypass valve be installed.
3. Pipe unions should be installed to allow removal
from piping.
4. An outlet pressure gauge should be located ap-
proxi mately ten pipe diameters downstream, and
within sight.
5. All installations should include a downstream re-
lief de vice if the inlet pressure could exceed the
pres sure rating of any downstream equip ment or
the maximum outlet pressure rating of the unit.
6. Clean the pip ing of all foreign material including
chips, welding scale, oil, grease and dirt before
installing the reg u la tor.
mend ed.
7. In plac ing thread seal ant on pipe ends pri or to
en gage ment, ensure that excess material is
INSTALLATION, OPERATION & MAINTENANCE MANUAL (IOM)
MODEL P1
SINGLE STAGE
PRESSURE REDUCING REGULATOR
CAUTION
Strainers are rec om-
SECTION I
SECTION II
Supply
@P
1
Blowdown-Drain
re moved and not allowed to enter the regulator
upon startup.
8. Flow Direction: Install so the flow direction match-
es the inlet stamp on the main regulator body (1).
9. For best performance, install in well drained hori-
zon tal pipe.
10. Basic Regulator - (Refer to Figure 2, Model P1):
Regulator may be rotated around the pipe axis
360°. Recommended position is with aluminum
knob (4) ver ti cal upwards.
11. Regulators are not to be buried un der ground.
12. For insulated piping systems, recommendation is
to not insulate regulator.
) pressure. Sizes are 1/4"
2
Model P1
Reducing
Regulator

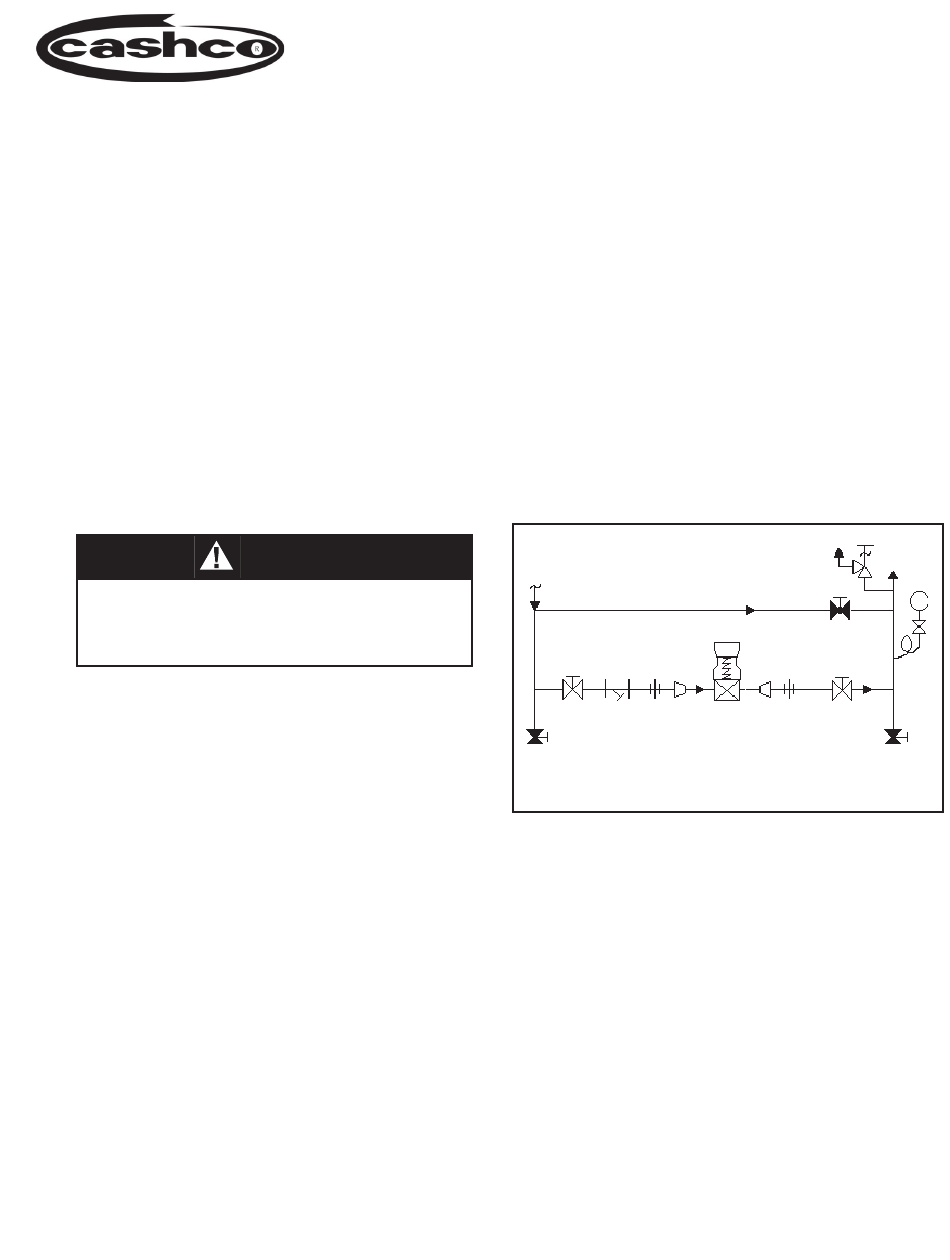

Recommended Piping Schematic
For Pressure Reducing Station
IOM-P1
02-20
Outlet
@P
2
SRV
P
1
Bypass
Blowdown-Drain

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P1 and is the answer not in the manual?

Questions and answers

Related Manuals for cashco P1

Summary of Contents for cashco P1

  • Page 1 SECTION I I. DESCRIPTION AND SCOPE The Model P1 is a pressure reducing regulator used to control downstream (outlet or P ) pressure. Sizes are 1/4" and 3/8" (DN8 and DN10) FNPT or 1/2" (DN15) with Tri-Clamp connections. The unit is suitable for gaseous or liquid services.

  • Page 2: Principle Of Operation

    (upstream) block observed and man u al ly reg u lat ed. Close the valve. Close the outlet (downstream) valve only if reg u la tor re mov al is required. outlet (down stream) block valve. IOM-P1...

  • Page 3: Maintenance

    NOTE: Use only parts man u fac tured and spring chamber, relieve range spring com pres sion supplied by Cashco, Inc. for these products. by turn ing knob (4) CCW until ro ta tion comes to a See Section VIII.
  • Page 4 5. Inspect all parts for damage and replace if necessary. NOTE: Use only parts man u fac- ing torque val ue: 65–70 Ft lbs (88–95 Nm). tured and supplied by Cashco, Inc. for these 11. Pressurize with air and spray liquid leak de- products. See Section VIII.

  • Page 5: Troubleshooting Guide

    B. Check system; isolate (block) flow at regulator inlet - not outlet. Relocate regulator if necessary. No pressure relief protection. Install safety relief valve, or rupture disc. Restricted diaphragm movement. Ensure no moisture in spring chamber at temperatures below freeze point. IOM-P1...

  • Page 6: Section Viii

    Cashco, Inc. does not assume responsibility for the selection, use or maintenance of any product. Responsibility for proper selection, use and maintenance of any Cashco, Inc.
  • Page 7 IOM-P1...
  • Page 8 POTENTIALLY EXPLOSIVE ATMOSPHERES REGULATIONS 2016 Cashco, Inc. declares that the products listed in the table below has been found to comply with the Essential Health and Safety Requirements relating to the design and construction of products intended for use in potentially explosive atmospheres given in Annex II of the ATEX Directive 2014/34/EU and given in Schedule 1 of The Equipment and Protective Systems Indented for Use in Potentially Explosive Atmospheres Regulations 2016.
  • Page 9 345, 345(OPT-45) BA1/BL1, PA1/PL1 C-BPV, C-PRV, C-CS D, D(CRYO), D(OPT-37), D(OPT-20), D(OPT-45) DL, DL(LCC), DL(OPT-45) BR, BR(CRYO) HP, HP(LCC), HP(OPT-45), HP(OPT46G), HP-1+6+S(OPT-40), HP-1+6+S P1, P2, P3, P4, P5, P7 B2, B7 POSR-1, POSR-2 5200P, 5300P NW-PL, NW-SO CG-PILOT RANGER, 987, PREMIER...
