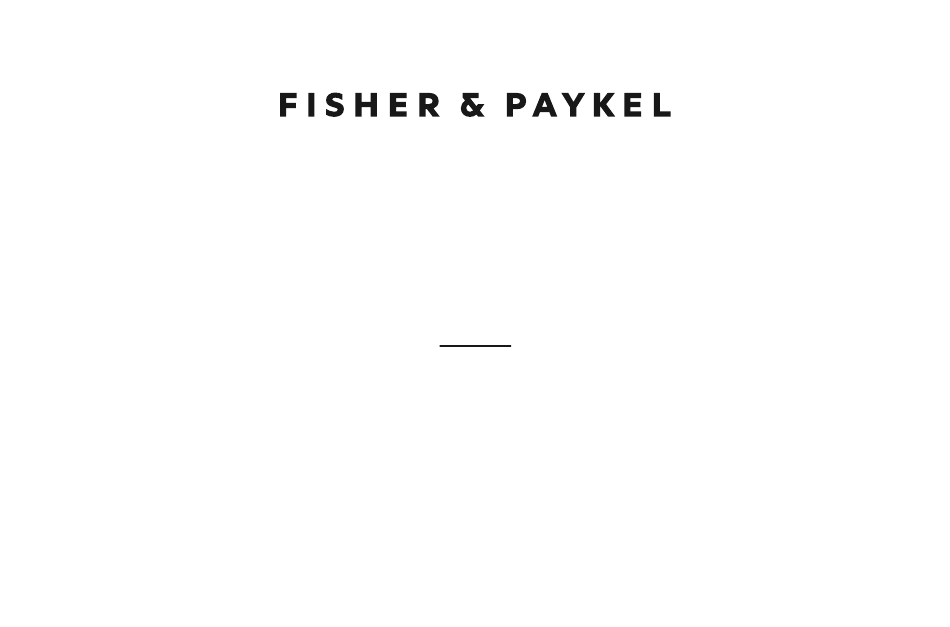

- Page 1 SINGLE DISHDRAWER™ DISHWASHER INTEGRATED DD60SHI9, DD60SHTI9 INSTALLATION GUIDE...
-
Page 3: Safety And Warnings
SAFETY AND WARNINGS WARNING! WARNING! Electric Shock Hazard Electric Shock Hazard Failure to follow this advice may result in Failure to follow this advice may result in electrical shock or death. electrical shock or death. • Fitting an integrated panel requires access to •... -
Page 4: Installation
SAFETY AND WARNINGS WARNING! Ensure the product is not plugged in when fitting custom panels. Installation of custom panels requires basic mechanical and electrical skills. To reduce the risk of fire, injury to persons or damage when using the appliance, follow the Installation must comply with your local building and electricity regulations. -
Page 5: Tools And Components
TOOLS AND COMPONENTS PARTS SUPPLIED TOOLS REQUIRED Keep all packing materials until the unit has been inspected. Not supplied Inspect the product to ensure there is no shipping damage. If any damage is detected contact the dealer or retailer you bought the product from to report the damage. Fisher &... -
Page 6: Product Dimensions
PRODUCT DIMENSIONS – DD60SI MODELS DD60SI DD60STI PRODUCT DIMENSIONS A Overall height B Overall width C Overall depth* PLAN ISOMETRIC D Depth of chassis E Front panel depth** 16 – 20 16 – 20 F Max. drawer extension*** *based on front panel thickness of 18mm **refer to 'Custom panel dimensions' for more information ***excluding custom panel and handle FRONT... -
Page 7: Custom Panel Dimensions
CUSTOM PANEL DIMENSIONS Material specifications Maximum weight of panel must not exceed 9kg (including handle) The panel should be adequately sealed to withstand moisture (50°C @ 80% RH). The back and sides of the panel should be completely sealed with a waterproof vapour barrier, such as polyurethane, to prevent damage. The back of the panel should be completely flush so that the seal between the panel and the rubber trim is maintained. -
Page 8: Cabinetry Dimensions
CABINETRY DIMENSIONS CLEARANCES Connections can be located in an adjacent cabinet on either side of the DishDrawer™ Dishwasher*** PLAN ISOMETRIC STD MODELS TALL MODELS CABINETRY CLEARANCES CABINETRY DIMENSIONS A Minimum clearance to adjacent cupboard door A Minimum inside height min. 412 min. -
Page 9: Left Side
PLUMBING & ELECTRICAL CONSIDERATIONS Hose and cord lengths Your services can be installed to either the left-hand or right-hand side of the product in an adjacent cabinet. Refer to 'Cabinetry preparation' for service access requirements. If the drain hoses supplied are not long enough to reach your services, you may purchase a Fisher &... - Page 10 CABINETRY PREPARATION SERVICE ACCESS MOISTURE PROTECTION Service holes can be created on either side of the DishDrawer™ Dishwasher cavity as shown below. If the hole is created through wood, ensure the edges are smooth and rounded. If the hole is created through metal, ensure the edge protector is fitted. Align the supplied moisture protection tape to the cabinetry as illustrated Ensure this area is free of debris...
- Page 11 EXTERNAL VENTING PREPARATION To prevent the build up of condensation produced by your DishDrawer™ Dishwasher, the external venting kit must be installed via one of the following options: THROUGH SAME CABINET THROUGH ADJACENT CABINET THROUGH FLOOR FRAMELESS FRAMED FRAMELESS FRAMED FRAMED &...
- Page 12 FIT THE TRIM BRACKET PREPARE EXTERNAL VENTING We recommend fitting the trim bracket when installing your DishDrawer™ Dishwasher into a FIT THE VENTING HOSE TO THE DISHDRAWER™ DISHWASHER 480mm cavity to conceal any visible gap left between the countertop and chassis. Rotate the elbow at the rear of the product to either the left or right Align the bracket to the chassis ensuring...
- Page 13 PUSH THE PRODUCT INTO THE CAVITY SECURE THE VENTING HOSE TO CABINETRY VENTING THROUGH CABINETRY If securing via bracket method: Secure all four side brackets to the DishDrawer™ Dishwasher, aligning bracket A with slot A and bracket B with slot B. Unframed cabinetry Ensure the ends of the brackets are not Route the venting hose to the cutout...
- Page 14 FIT THE CUSTOM PANEL Attach the Knock-to-Pause module to the panel as shown. Remove both side pins. Ensure the Knock-to-Pause module is oriented correctly and is not in contact with the bracket before securing. Electric shock hazard: To earth the panel bracket, connect the earth wire from the product to one of Carefully pull the bracket down and the tabs.
- Page 15 SECURE TO CABINETRY VIA BRACKETS (METHOD A) SECURE TO CABINETRY VIA DRAWER REMOVAL (METHOD B) Open the drawer and press both locking tabs back to release. Partially open the drawer and remove the first screw cover from the trim moulding. Lift the drawer off the runners and carefully set aside on a protected surface.
- Page 16 PLUMBING & ELECTRICAL CONNECTION Ø38MM STANDPIPE INSTALLATION SINK TRAP/WASTE TEE INSTALLATION Install the drain hose support to the Install the drain hose support to the back wall, as close to the underside of back wall, as close to the underside of the countertop as possible.
-
Page 17: Installer Checklist
INSTALLER CHECKLIST TO BE COMPLETED BY THE INSTALLER Installation Electrical … Check all parts are installed correctly and are secure. … Ensure all electrical tests have been conducted in accordance with local regulations. … Ensure DishDrawer™ Dishwasher is securely fastened to the cabinetry and drawer opens and closes freely with no resistance. -
Page 18: Troubleshooting
TROUBLESHOOTING The DishDrawer is beeping continuously DISPLAY POSSIBLE CAUSE WHAT TO DO Refer to the ‘Fault codes’ section of your User guide Water Supply fault. 1 Ensure the water supply is turned on. No program indicator lights up when the drawer is opened 2 Press once to stop the beeping, Ensure power is connected and is switched on. - Page 20 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2021. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
