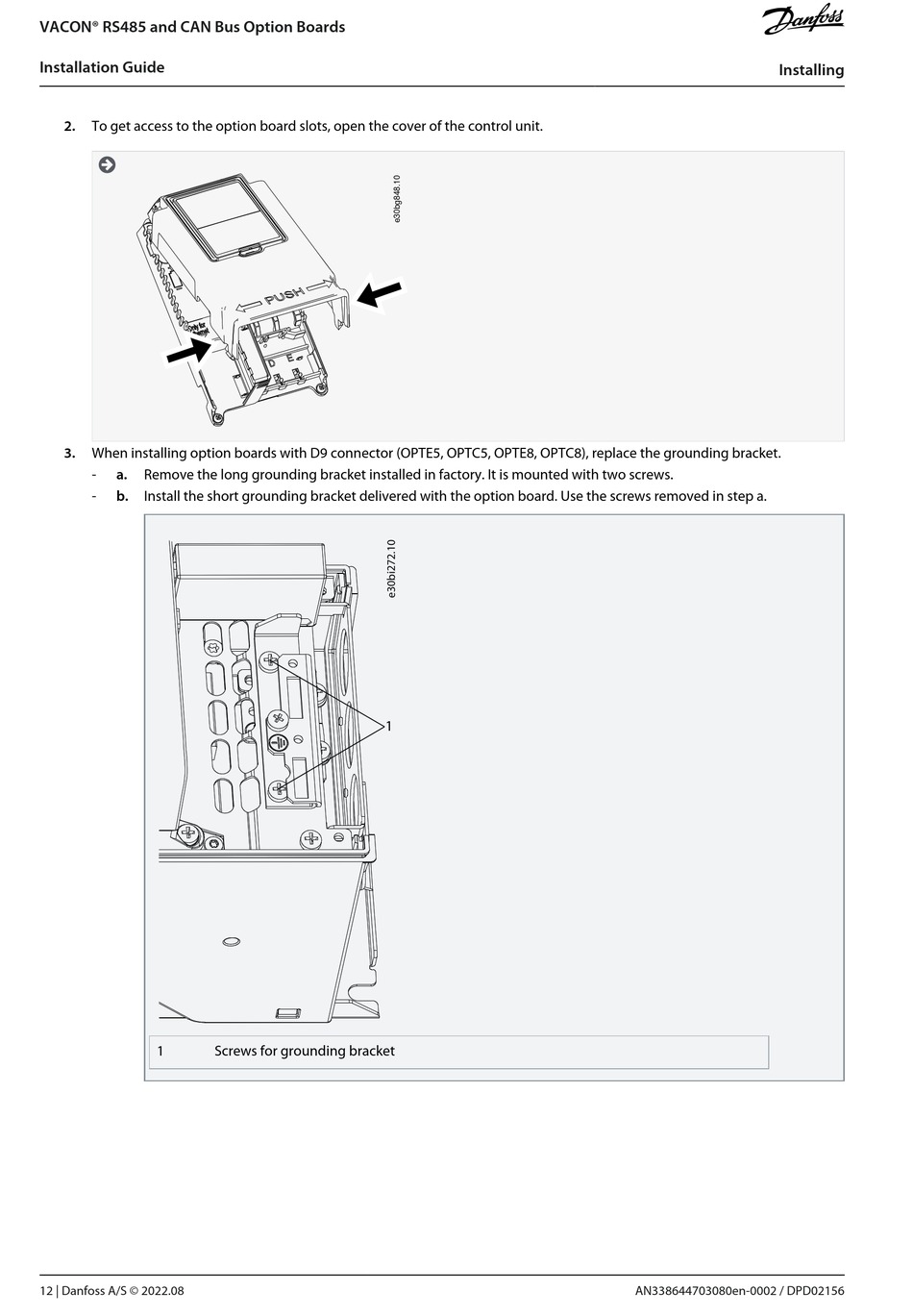

VACON® RS485 and CAN Bus Option Boards
Installation Guide
2.
To get access to the option board slots, open the cover of the control unit.
3.
When installing option boards with D9 connector (OPTE5, OPTC5, OPTE8, OPTC8), replace the grounding bracket.
a.
-
Remove the long grounding bracket installed in factory. It is mounted with two screws.
-
b.
Install the short grounding bracket delivered with the option board. Use the screws removed in step a.
1
12 | Danfoss A/S © 2022.08
1
Screws for grounding bracket
Installing
AN338644703080en-0002 / DPD02156
