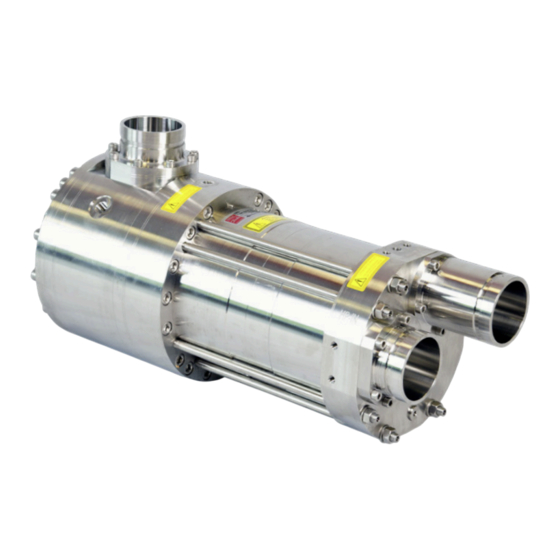

Energy recovery device
Hide thumbs Also See for iSave 50:
Table of Contents

Advertisement

Quick Links

Download this manual
Data sheet
Operating guide
Headline Myriad Pro
max. 26/26 pt.
Energy Recovery Device
max. 3 rows

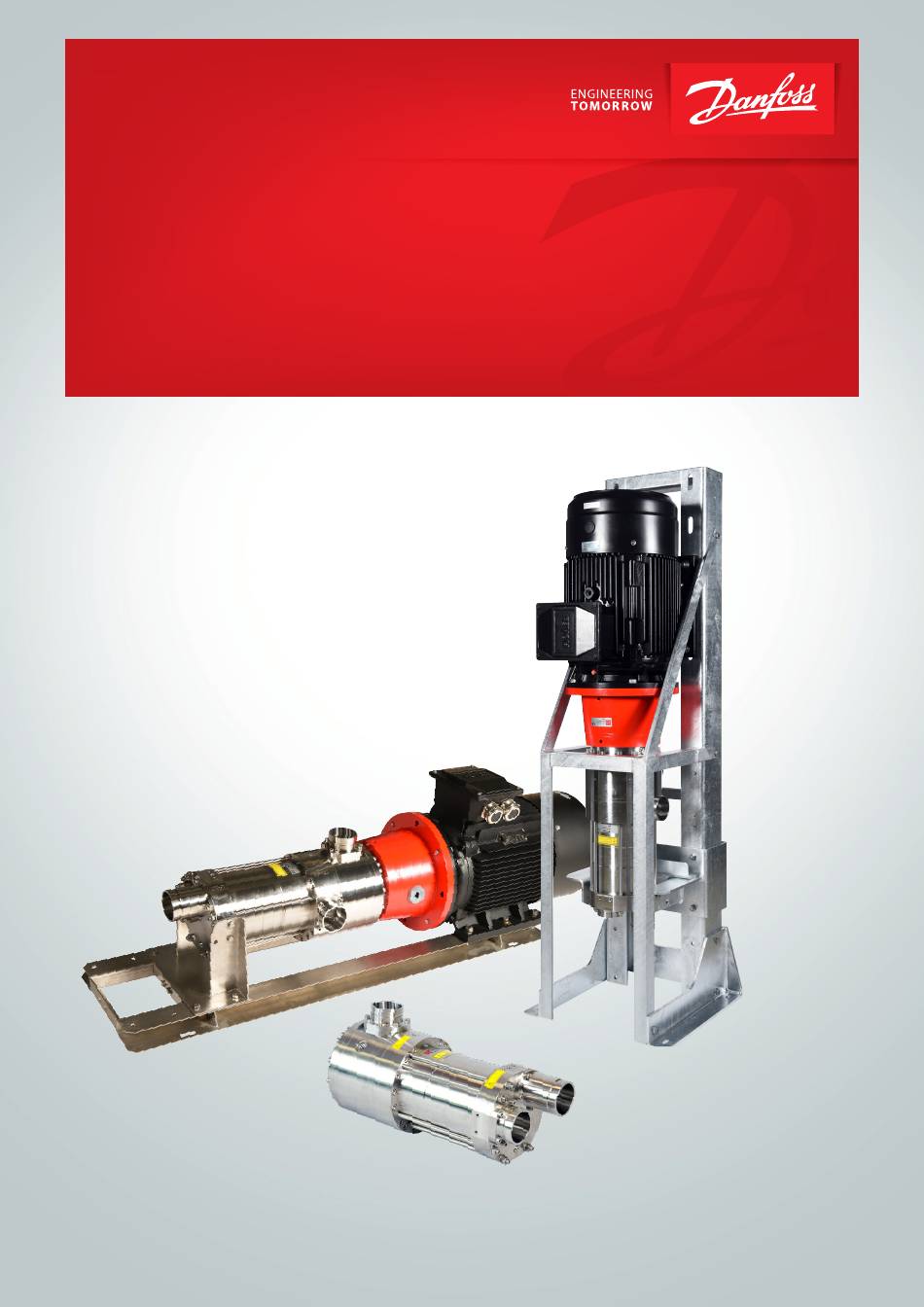

iSave 50-70
Installation, Operation and
Maintenance Manual
© Danfoss | 2023.12
and min. 18/18 pt.
180R9357_AQ265943679828en-001003
hpp.danfoss.com
| 1
