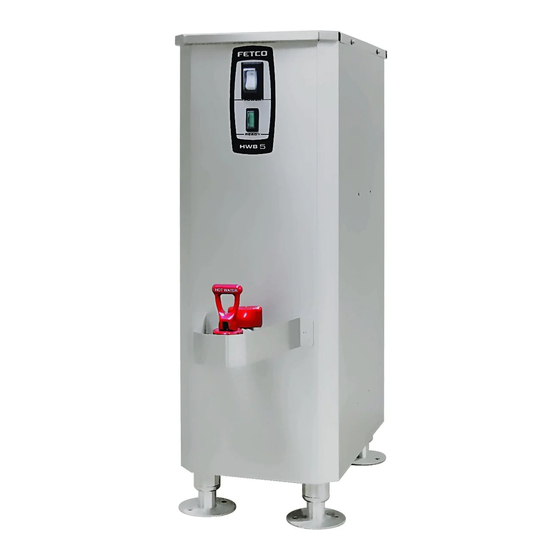

FETCO HOT WATER DISPENSER SERIES HWB-5. HWB-10, HWB-15, HWB-25
LEGACY Commercial Hot Water Boilers Including IP 44
LEGACY® line of Commercial Hot Water Dispensers
Stainless Steel Construction - Durable and Easy to Clean
Thermally Insulated Hot Water Tank for Energy Savings and Increased Worker Safety
Easy to Install, Adjust and Service
Fully Automatic Water Heater with Digital Controls for Controlled Refill and No Recovery Time
Perfect for High Volume Hot Water Dispensing:
BOH Kitchen Use
Cafes and Tea Houses
Hospitality / Volume Hot Beverage Production
Beer & Kombucha Breweries
CONTACT INFORMATION
FETCO® FOOD EQUIPMENT TECHNOLOGIES COMPANY
600 ROSE ROAD
LAKE ZURICH • IL • 60047-0429 • USA
INTERNET: www.fetco.com
©2008-2021 FOOD EQUIPMENT TECHNOLOGIES COMPANY
PATENTS:https://www.fetco.com/pl,pages,patents,74.html
HOT WATER DISPENSER SERIES HWB-5. HWB-10, HWB-15, HWB-25
TABLE OF CONTENTS
Specifications and Requirements ..................................... 2
Rough-In Drawings ........................................................... 2
Capacities and Measurements ......................................... 2
Electrical Rating Chart ...................................................... 3
Installation ......................................................................... 4
Installation-power connection ........................................... 5
Operating Procedures ....................................................... 5
User's Guide and Operator Instructions
FETCO HWB-5;HWB-10;HWB-15;HWB-25
PHONE: (800) 338-2699 (US & CANADA)
(847) 719-3000 (All Countries)
FAX: (847) 719-3001
EMAIL:sales@fetco.com
orders@fetco.com (to order parts and equipment)
fetco.com
techsupport@fetco.com (all service queries)
Revised November 2021
Programming Instructions ................................................. 6
Setting bias for pure water. ............................................... 7
Operator Training .............................................................. 7
Cleaning & Maintenance ................................................... 7
Parts diagrams .................................................................. 9
Wiring diagrams .............................................................. 25
P112
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fetco LEGACY HWB-5 Series
Summary of Contents for Fetco LEGACY HWB-5 Series
-
Page 1: Table Of Contents
User’s Guide and Operator Instructions FETCO HOT WATER DISPENSER SERIES HWB-5. HWB-10, HWB-15, HWB-25 LEGACY Commercial Hot Water Boilers Including IP 44 FETCO HWB-5;HWB-10;HWB-15;HWB-25 LEGACY® line of Commercial Hot Water Dispensers Stainless Steel Construction - Durable and Easy to Clean... -
Page 2: Specifications And Requirements
30.5 gal 375 lb 160 lb 33X37X32 inch HWB-25 762 mm 711 mm 711 mm 115.5 liter 53.9 kg 170 kg 72.5 kg 840X940X810 mm Go to fetco.com for the latest versions of all information Page 2 P112 Revised November 2021... -
Page 3: Electrical Rating Chart
Wires “4+G” denotes a WYE three phase, five wire bundle of L1; L2; L3; N and a ground wire (domestic) Wires “e2+G” denotes an export brewer , three wire bundle of L1; L2; and a ground wire (export only) Go to fetco.com for the latest versions of all information Page 3... -
Page 4: Installation
The installation must comply with applicable federal, state, and local codes having jurisdiction at your location. Check with your local inspectors to determine what codes will apply to the installation and operation of FETCO products. 1) Verify that the actual voltage at the electrical service connection is compatible with the specifications on the dispenser’s serial number plate. -
Page 5: Installation-Power Connection
NOTE: Never plumb to the tank service drain. This drain must be clear for service work or to empty the hot water tank during moving or relocating the equipment Go to fetco.com for the latest versions of all information Page 5 P112 Revised November 2021... -
Page 6: Programming Instructions
7500 2286 197.8 92.1 120/208 three 8000 2438 196.9 91.6 HWB-25 (-2) 6 X 4000 watt 120/220 three 8500 2591 196.0 91.1 120/240 three Go to fetco.com for the latest versions of all information Page 6 P112 Revised November 2021... -
Page 7: Setting Bias For Pure Water
5. Do not attempt to move hot beverage equipment once it is filled. Drain equipment before moving. 6. FETCO commercial hot water dispensers prepare large amounts of very hot water Go to fetco.com for the latest versions of all information... - Page 8 12. Non IP-44 equipment is not “jet-proof” construction. Do not pressure wash or use jet spray to clean this unit. 13. All FETCO equipment is not waterproof-do not submerge or saturate with water. Equipment exposed to flood and contaminated must not be used due to electrical and food safety.
-
Page 9: Parts Diagrams
1021.00002.00 HOUSING, WATER LEVEL PROBE 1112.00030.00 PROBE WELDMENT, WATER LEVEL, 11.25" LONG 1112.00029.00 PROBE WELDMENT, WATER LEVEL, 2.50" LONG 1044.00004.00 LABEL, DANGER, HIGH VOLTAGE Go to fetco.com for the latest versions of all information Page 9 P112 Revised November 2021... - Page 10 EXPORT or IP-44 Maritime. This equipment does not require a NEUTRAL in the wiring bundle and is not used for domestic (Americas) equipment Go to fetco.com for the latest versions of all information Page 10...
- Page 11 1086.00008.00 CONNECTOR, CABLE CLAMP, 3/4" 1024.00022.00 GRIP, FLAT, RED (.25 x 2.00 x 1.13) 1084.00028.00 NUT, CLIP ON (J-NUT), #8-32, 20 GA., BLACK-PHOSPHATE FINISH Go to fetco.com for the latest versions of all information Page 11 P112 Revised November 2021...
- Page 12 EXPORT or IP-44 Maritime. This equipment does not require a NEUTRAL in the wiring bundle and is not used for domestic (Americas) equipment Go to fetco.com for the latest versions of all information Page 12...
- Page 13 CABLE CLAMP, 0.375" DIA, NYLON 1086.00008.00 CONNECTOR, CLAMP, NON-METALLIC CABLE, 3/4" 1024.00022.00 GRIP, FLAT, RED (.25 x 2.00 x 1.13) 1084.00023.00 STANDOFF, MALE/FEMALE, ALUM., THREADED HEX #4-40 Go to fetco.com for the latest versions of all information Page 13 P112 Revised November 2021...
- Page 14 EXPORT or IP-44 Maritime. This equipment does not require a NEUTRAL in the wiring bundle and is not used for domestic (Americas) equipment Go to fetco.com for the latest versions of all information Page 14...
- Page 15 HARNESS, HIGH AMP, HWB-2010, IP44, HALOGEN FREE 1402.00026.00 HARNESS, LOW AMP, HWB-2010, IP44 HALOGEN FREE 1401.00012.00 WIRING, HWB-10, 120/208-240V, N,L1,L2+GND 1084.00027.00 NUT, CLIP ON (J-NUT), #8-32, 18-16 GA., BPF Go to fetco.com for the latest versions of all information Page 15 P112 Revised November 2021...
- Page 16 EXPORT or IP-44 Maritime. This equipment does not require a NEUTRAL in the wiring bundle and is not used for domestic (Americas) equipment Go to fetco.com for the latest versions of all information Page 16...
- Page 17 LABEL, 4" X 3" SERIAL NUMBER 1402.00024.00 GROUND WIRE, HALOGEN FREE 1073.00005.00 INSERT, LEG, W/RING, (FLANGED) 1401.00093.00 WIRING DIAGRAM, HWB-10, 220-240/VAC L1, L2, GND 1086.00008.00 CONNECTOR, CABLE CLAMP, 3/4" Go to fetco.com for the latest versions of all information Page 17 P112 Revised November 2021...
- Page 18 PROBE WELDMENT, WATER LEVEL, 2.50" LONG 1112.00030.00 PROBE WELDMENT, WATER LEVEL, 11.25" LONG 1102.00025.00 PROBE ASSEMBLY, DIGITAL TEMPERATURE, 12.0" LG 1044.00004.00 LABEL, DANGER, HIGH VOLTAGE Go to fetco.com for the latest versions of all information Page 18 P112 Revised November 2021...
- Page 19 1034.00001.00 VALVE, BALL, 1/2" FPT X 1/2" FPT 1031.00013.00 FITTING, HOSE BARB 3/8" x 1/2" MPT 1031.00036.00 FITTING, PLUG, 1/4" MALE PIPE HEX HEAD 1044.00004.00 LABEL, DANGER, HIGH VOLTAGE Go to fetco.com for the latest versions of all information Page 19 P112 Revised November 2021...
- Page 20 EXPORT or IP-44 Maritime. This equipment does not require a NEUTRAL in the wiring bundle and is not used for domestic (Americas) equipment Go to fetco.com for the latest versions of all information Page 20...
- Page 21 COVER, TOP HWB-2015 1082.00023.00 SCREW, #8-32 X 3/8 TRUSS HD PHIL., MACHINE 1024.00022.00 GRIP, FLAT, RED (.25 x 2.00 x 1.13) 1003.00030.00 COVER, DRAIN OPENING, HWB'S Go to fetco.com for the latest versions of all information Page 21 P112 Revised November 2021...
- Page 22 EXPORT or IP-44 Maritime. This equipment does not require a NEUTRAL in the wiring bundle and is not used for domestic (Americas) equipment Go to fetco.com for the latest versions of all information Page 22...
- Page 23 COVER, TOP, HWB-2025 1082.00023.00 SCREW, #8-32 X 3/8 TRUSS HD PHIL., MACHINE 1024.00022.00 GRIP, FLAT, RED (.25 x 2.00 x 1.13) 1003.00030.00 COVER, DRAIN OPENING, HWB'S Go to fetco.com for the latest versions of all information Page 23 P112 Revised November 2021...
- Page 24 LOCKNUT 1/8" STRAIGHT PIPE THREAD 1031.00019.00 NIPPLE 1/8" PIPE, 4.5 LONG 1031.00018.00 COUPLING, FEMALE 1/8" PIPE 1058.00005.00 SWITCH, PRESSURE, 2PR 1044.00004.00 LABEL, DANGER, HIGH VOLTAGE Go to fetco.com for the latest versions of all information Page 24 P112 Revised November 2021...
-
Page 25: Wiring Diagrams
N, L1, L2 + GRD 2 heaters SKU H05011 Domestic Voltage Wiring Diagram 1402.00010.00 HWB-5 L1, L2 + GRD 2 heaters SKU H05010 EXPORT and IP-44 Maritime Voltage Go to fetco.com for the latest versions of all information Page 25 P112 Revised November 2021... - Page 26 N, L1, L2,+ GRD 2 heaters SKU H10011 Domestic Voltage Wiring Diagram 1402.00016.00 HWB-10 N, L1, L2,L3+ GRD 2 heaters SKU H10031 Export and IP-44 Maritime Voltage Go to fetco.com for the latest versions of all information Page 26 P112 Revised November 2021...
- Page 27 N, L1, L2 + GRD 2 heaters SKU H15011 Domestic Voltage Wiring Diagram 1402.00005.00 HWB-15 N, L1, L2,L3+ GRD 3heaters SKU H15021 Domestic Voltage Go to fetco.com for the latest versions of all information Page 27 P112 Revised November 2021...
- Page 28 Wiring Diagram 1402.00009.00 HWB-15 N, L1, L2, L3+ GRD 3 heaters SKU H15041 Export Voltage Go to fetco.com for the latest versions of all information Page 28 P112 Revised November 2021...
- Page 29 N, L1, L2,L3+ GRD 6 heaters SKU H25006 Three Phase Domestic Voltage Wiring Diagram 1402.00025.00 HWB-25 N, L1, L2,L3+ GRD 6 heaters SKU H25031 Three Phase Export Voltage Go to fetco.com for the latest versions of all information Page 29 P112 Revised November 2021...
- Page 30 End of section notes...
