Your operating system may detect the device and ask if you want it to install a driver for the device. In that
case, click
Cancel
.
You are now ready to install the driver and utilities software. See the IBM High IOPS Adapter user guide based
on your operating system.
External Hard Drive LED Cable (optional)
The IBM High IOPS Duo Adapter includes a two-pin LED pinout for attaching to an external HDD access light. To
attach the LED,
1.

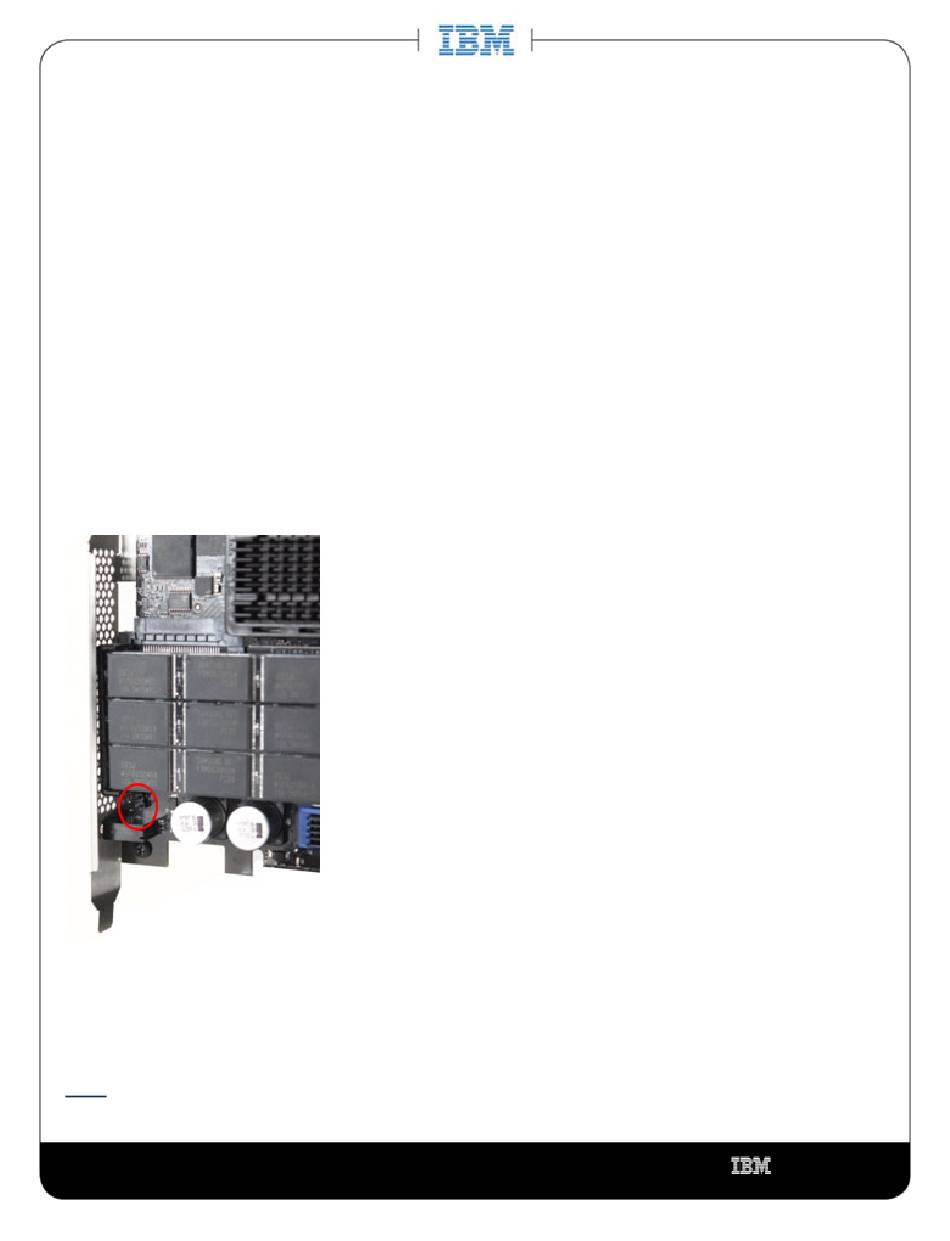

Locate the two-pin pinout near the lower left corner of the The IBM High IOPS Duo Adapter, as shown in the
diagram.
2.
Plug in the connector.
3.
Replace the computer's access panel.
4.
Plug in the power cable and turn on the computer.
NOTE
The pin closest to the PCIe connector is the positive pin.
The external LED now indicates a combination of both the reads and writes executing on the The IBM High IOPS
Duo Adapter.
Return
to the The IBM High IOPS Duo Adapter installation instructions.
IBM High IOPS Adapter - Hardware User Guide 2.2.3
