Parker E Series Quick Reference Manual

Dimensions

This surface must be thermally
coupled to a cold plate in most
applications
1.625 (41.28)
3.555 (90.30)
0.812 (20.62)
3.315 (84.20)
Compumotor
5500 Business Park Dr.
Rohnert Park, CA 94928
Exposed aluminum for
electrical grounding
1.000 (25.40)
Dimensions in
inches (millimeters)
2.000 (50.80)
Mtg Clearance

Input/Output Specifications

INPUTS

All inputs are optically isolated

STEP:

minimum pulse width: 200 nanoseconds
maximum input frequency: 2MHz
minimum turn on current: 6.5mA

DIRECTION:

minimum setup time: 200 microseconds
minimum turn on current: 8mA

REMOTE:

minimum turn on current: 3.5mA
When input is activated, drive reduces motor current
by ratio set by R , a resistor connected between
remote
REMOTE and CURRENT, as follows:
R = 13,300 (3750 + R )/(R - R ), where
remote c c s
R = resistor asociated with operating current
c
R = resistor asociated with desired standby current
s
NOTE: for zero current, short REMOTE and CURRENT

GEAR SHIFT:

minimum turn on current: 3.5mA
When input is activated, the drive multiplies each
step pulse it receives by a factor of 8.

FAULT OUTPUT

Optically isolated; open collector/emitter output.
Normally active (output turns off on a fault condition).
To clear fault: cycle power.
maximum collector current: 10mA
E-DC Hardware Installation Guide
is available online in PDF format:
http://www.compumotor.com
(part number 88-020714-01)
All manuals and user guides at all-guides.com
Current & Resistor Selection
SW3-#7 Off/#8 Off
2x 0.177 (4.50) Thru
Current Resistor
(Clearance for #8
(M4) Mounting Screw)
4.80 0
4.62 412
4.56 619
4.49 825
4.43 1.02 K
4.37 1.27 K
4.30 1.54 K
4.24 1.78 K
4.18 2.05 K
4.11 2.26 K
4.05 2.55 K
3.99 2.80 K
3.92 3.09 K
3.86 3.32 K
3.80 3.57 K
SERIES
3.73 3.92 K
3.67 4.22 K
! 3.61 4.53 K
3.54 4.87 K
3.48 5.11 K
3.42 5.49 K
PWR/FLT
3.35 5.76 K
REMOTE
3.29 6.19 K
REF
CURRENT
3.23 6.49 K
DUMP
3.17 6.81 K
VDC+
VDC-
3.10 7.32 K
A+
3.04 7.68 K
A-
B+
2.98 8.06 K
B-
2.91 8.45 K
2.85 8.87 K
2.79 9.53 K
2.72 10.0 K
2.66 10.5 K
2.60 11.0 K
2.53 11.5 K
2.47 12.1 K
2.41 12.7 K
2.34 13.3 K
2.28 13.7 K
2.22 14.3 K
2.15 15.0 K
2.09 15.8 K
2.03 16.5 K
1.96 17.4 K
1.90 18.2 K
1.84 19.1 K
1.77 20.0 K
1.71 20.5 K
Settings for
1.65 21.5 K
Compumotor
1.58 22.6 K
Motors:
SW3-#7 Off/#8 Off
(amps*) (ohms)
3.0 S** 7.68 K
4.8 S** 0
P = Parallel current;
**

Protective Circuits

Short Circuit Protection:
• phase-to-phase motor short
• phase-to-ground motor short
• trips at 55°C (131°F) internally

Motor Performance Specifications

Accuracy: +/- 5 arcminutes typical (unloaded motor,
bi-directional) with OS or VS Motors
Repeatability: +/- 5 arcseconds typical (unloaded motor,
Hysteresis: less than 2 arcminutes—0.0334°
(
Operating Temperature:
Storage Temperature: –
Humidity:
Drive Weight:
SW3-#7 On/#8 Off
Current Resistor
(amps*) (ohms)
1.58 0
1.52 619
1.46 1.27 K
1.39 2.05 K
1.33 2.80 K
1.27 3.57 K
R I E
1.20 4.53 K
1.14 5.49 K
1.08 6.49 K S E
1.01 7.68 K
0.95 8.87 K
0.89 10.5 K
0.82 12.1 K
0.76 13.7 K
0.70 15.8 K
0.63 18.2 K
0.57 20.5 K
0.51 22.6 K
SW3-#7 Off/#8 On
Current Resistor
(amps*) (ohms)
1.27 0
1.20 787
1.14 1.62 K
1.08 2.49 K
1.01 3.57 K
0.95 4.64 K
0.89 5.90 K
0.82 7.32 K
0.76 8.87 K
0.70 10.7 K
0.63 13.0 K
0.57 15.4 K
0.51 18.2 K
0.44 21.5 K
SW3-#7 On/#8 On
Current Resistor
(amps*) (ohms)
0.50 0
0.38 2.21 K
0.32 5.36 K
0.25 10.0 K
0.19 16.2 K
0.13 27.4 K
Motor
OS2HA
OS21A, 22A
VS12B, 13B
VS21B, 23B
VS22B
Hardware Installation Guide
available at: www.compumotor.com
Quick Reference Guide
Compumotor Division
°F)
Parker Hannifin Corporation
176°F)
p/n 88-020592-01 A

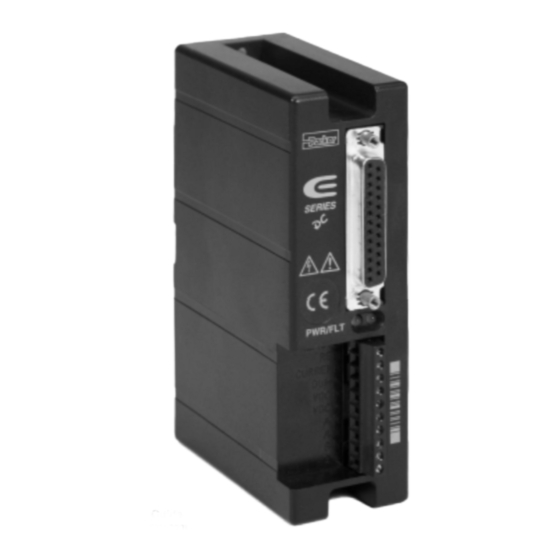

E-DC Drive

S
(effective May 22, 2002)
