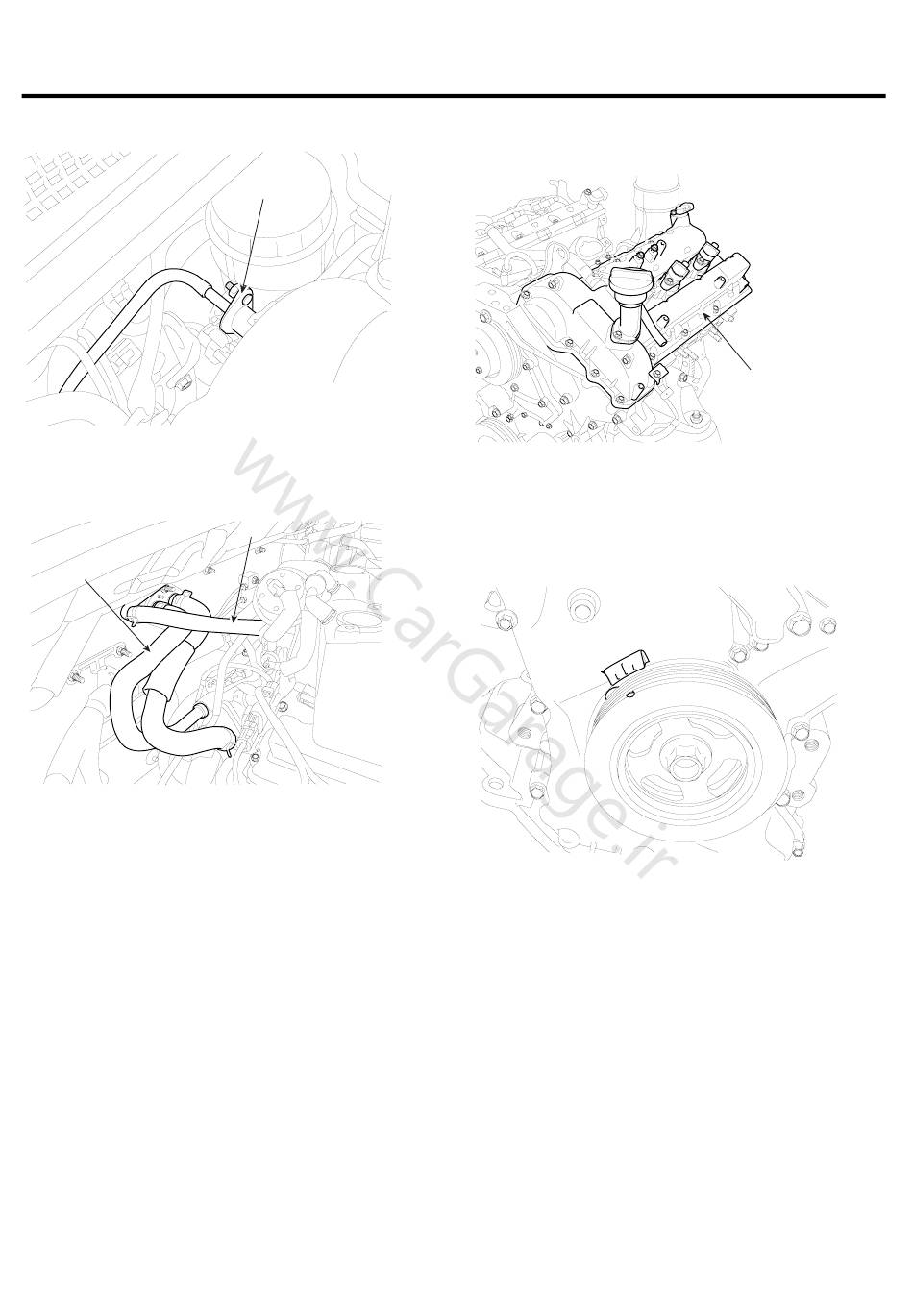

6. Disconnect the fuel hose tube(A).
7. Remove heater hose(A) and disconnect the brake
vaccume hose(B).
A
8. Disconnect the surge tank stay.
9. Remove the surge tank.
www.CarGarage.ir
A
SBLM16015L
B
SBLM16017L
www.CarGarage.ir
ENGINE MECHANICAL SYSTEM
10. Loosen the cylinder head cover bolts and then remove
the cover(A) and gasket.
11. Set No.1 cylinder to TDC/compression.
a. Turn the crankshaft pulley and align its groove
with the timing mark "T" of the lower timing chain
cover.
