Operation Controls and Functions:

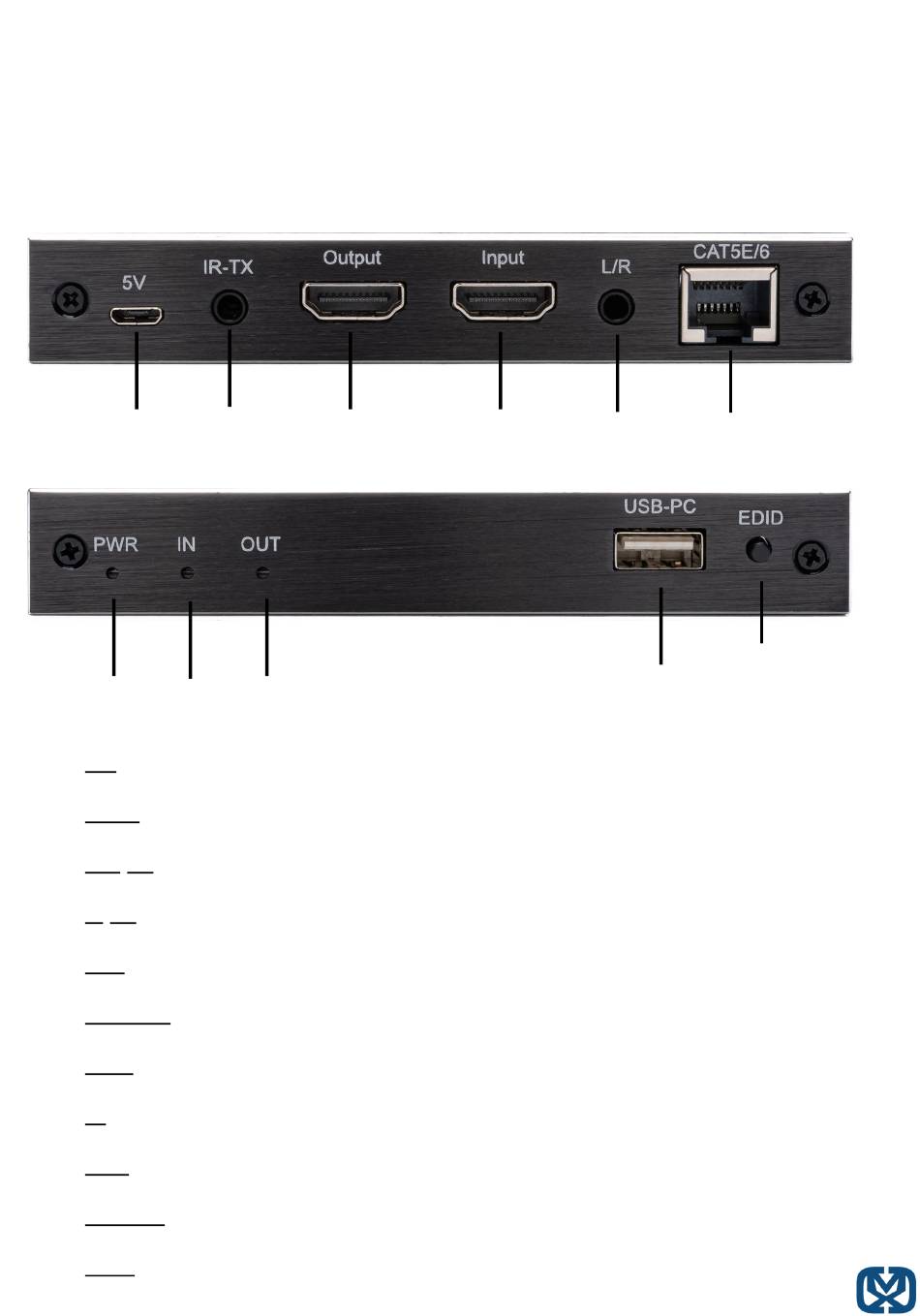

Transmitter:
1
7
8
1. 5V - 5V DC power input port.
2. IR-TX - IR-TX port.
3. Output- HDMI loop-out port.
4. Input - HDMI input port.
5. L/R - Stereo output.
6. CAT5E/6 - Cat5e / 6 cable connection port.
7. PWR - Power indicator light.
8. IN - HDMI IN indicator light.
9. OUT - HDMI OUT indicator light.
10. USB-PC - Connect with the USB of the device (PC).
11. EDID - 720p and 1080p switch button.
2
3
9
4 5
10
6
11
