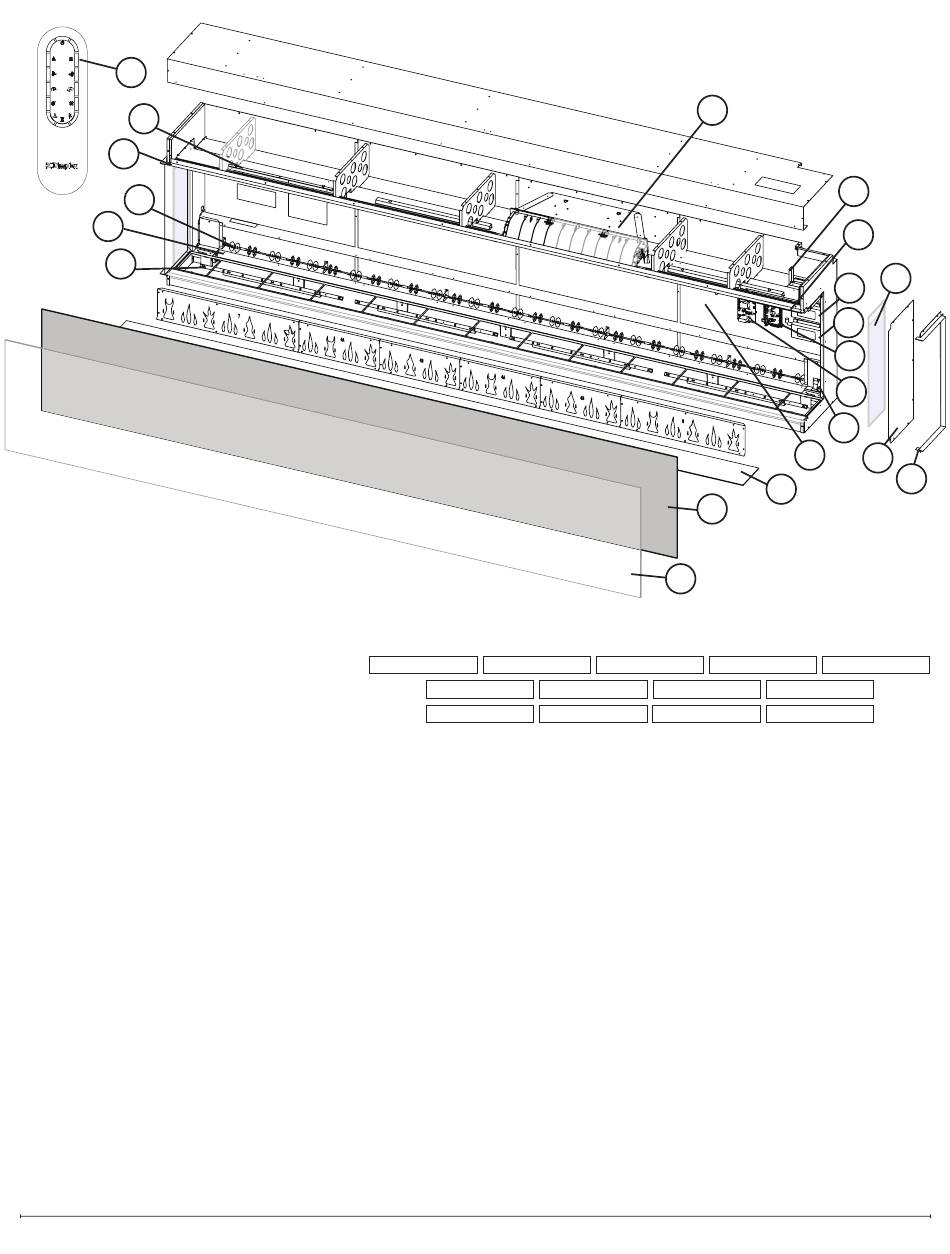

XLF10017-XD Replacement Parts List

1. Remote Control . . . . . . . . . . . . . . . . . X-3002310100RP
2. Heater Assembly. . . . . . . . . . . . . . . . X-2203860100RP
3. Power Supply (5 AMP) . . . . . . . . . . . X-2100250500RP
4. Power Supply (3 AMP) . . . . . . . . . . . X-2100250600RP
5. Main Control Board. . . . . . . . . . . . . . . . . . . 500002258
6. Adapter Board. . . . . . . . . . . . . . . . . . X-3002400100RP
7. Relay Board . . . . . . . . . . . . . . . . . . . . . . . . 500002277
8. Hidden Touch Controls . . . . . . . . . . . . . . . . 500002263
9. Temperature Sensor (NTC) . . . . . . . . X-3001560600RP
10. Flicker Motor. . . . . . . . . . . . . . . . . . . X-2000550100RP
11. Flicker Rod . . . . . . . . . . . . . . . . . . . . X-5903960500RP
12. Flame LED Strip (1) . . . . . . . . . . . . . . X-3002320200RP
(4). . . . . . . . . . . . . . X-3002320300RP
13. Media LED Strip (4) . . . . . . . . . . . . . . X-3002350300RP
Flame
3002320300RP 3002320300RP
Media
3002350300RP
Overhead
3002350200RP
14. Overhead LED Strip (4) . . . . . . . . . . . X-3002350200RP
15. Mirrored Glass . . . . . . . . . . . . . . . . . X-5903780500RP
16. Front Glass . . . . . . . . . . . . . . . . . . . . X-5903760500RP
17. Side glass (includes 1) . . . . . . . . . . . X-5903770100RP
18. Media Tray . . . . . . . . . . . . . . . . . . . . X-5903790500RP
19. Medium Acrylic Crystals . . . . . . . . . . X-1400150300RP
20. Large Acrylic Crystals . . . . . . . . . . . . X-1400130800RP
21. Extra-large Acrylic Crystals. . . . . . . . X-1400170700RP
22. Driftwood . . . . . . . . . . . . . . . . . . . . . X-0478800500RP
23. Trim Assembly. . . . . . . . . . . . . . . . . . X-1037390500RP
24. Hardware Kit . . . . . . . . . . . . . . . . . . . X-9602620400RP
25. Side Panel (includes 1) . . . . . . . . . . . X-1033820100RP
15
16
LED Configuration
3002320300RP
3002350300RP 3002350300RP
3002350200RP 3002350200RP
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (4 required)
2
9
8
17
3
4
5
7
10
6
25
18
3002320300RP 3002320200RP
3002350300RP
3002350200RP
23
