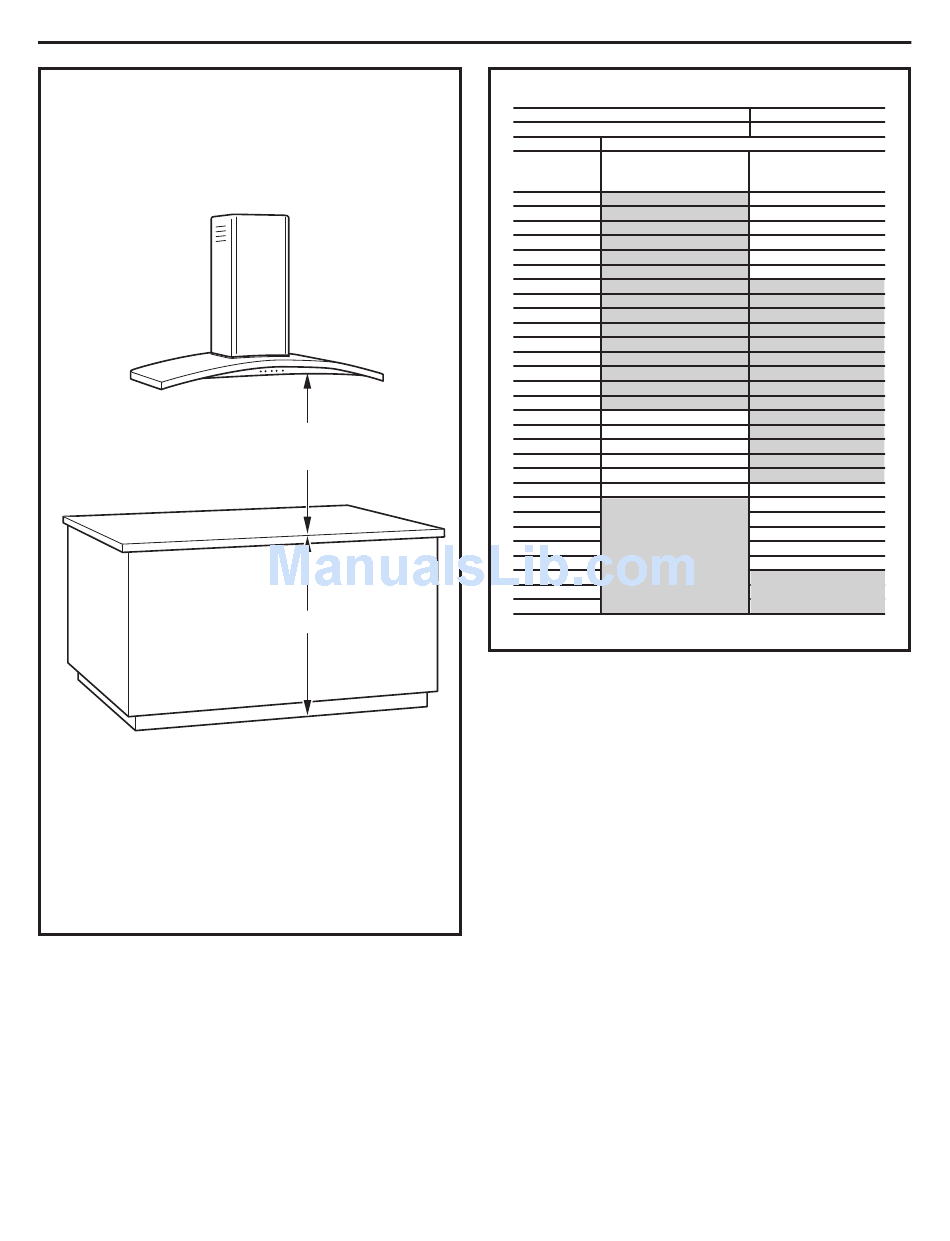

DETERMINE INSTALLATION HEIGHT
• Telescopic duct covers are provided to conceal
the ductwork running to the ceiling.
• This hood can be installed for recirculating
operation. Recirculating Kit included with hood.
NOTE: Installation height should be measured from
the cooking surface to the straight portion of the
hood.
The vent hood must be installed 24" min. and
30" max. above the cooking surface. The hood
installation height, from the cooking surface to the
bottom of the hood, depends upon ceiling height
and duct cover limitations.
Installation Preparation
24" Min.
30" Max.
36" Min.
Upper Duct Cover
Lower Duct Cover
Actual
Ceiling *Possible VENTED
Height Installation Height
7' 11" 24" to 30"
8' 0" 24" to 30"
8' 1" 24" to 30"
8' 2" 24" to 30"
8' 3" 24" to 30"
8' 4" 24" to 30"
8' 5" 24" to 30"
8' 6" 24" to 30"
8' 7" 24" to 30"
8' 8" 24" to 30"
8' 9" 24" to 30"
8' 10" 24" to 30"
8' 11" 24" to 30"
9' 0" 24" to 30"
9' 1" 24" to 30"
9' 2" 25" to 30"
9' 3" 26" to 30"
9' 4" 27" to 30"
9' 5" 28" to 30"
9' 6" 29" to 30"
9' 7"
9' 8"
9' 9"
9' 10"
9' 11"
10' 0"
10' 1"
10' 2"
10' 3"
*Based on 36" countertop height
13
PV970, PV976
25.81
27.56
Counter to Hood Height
*Possible

RECIRCULATING

Installation Height
24"
24" to 25"
24" to 26"
24" to 27"
24" to 28"
24" to 29"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
24" to 30"
30" 25" to 30"
26" to 30"
27" to 30"
28" to 30"
29" to 30"
30"
