FLUENT™

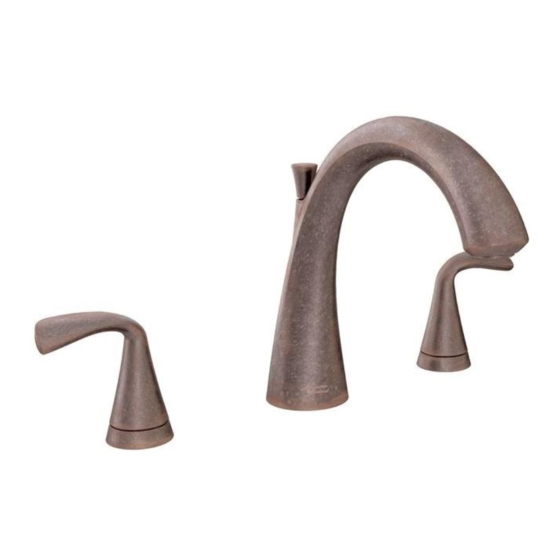

DECK-MOUNT BATH FILLER
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
Recommended Tools
Flat Blade Screwdriver
Adjustable Wrench
Slip Jaw Pliers
*Supplied with Fitting
1
SPOUT ASSEMBLY
Turn off hot and cold water
CAUTION
supplies before beginning.
Install RING WASHER (1) into SPOUT recess. Check that O-RING (2)
on end of SPOUT SHANK (3) is in place. Insert SPOUT SHANK (3)
through center hole on mounting surface.
Assemble RUBBER WASHER (4) and BRASS WASHER (5) and
LOCKNUT (6) onto SPOUT SHANK (3). Align SPOUT ASSEMBLY
and from underside of ledge secure SPOUT ASSEMBLY into
position with LOCKNUT (6).
Installation
Instructions
ROUGHING-IN DIMENSIONS
250mm
(9-3/4")
*Wrench
MOUNTING
*Hex key
SPOUT
ASSEMBLY
SPOUT RECESS
1
2
3
MOUNTING
SURFACE
4
5
6
7186.900
7186.901
219mm
(8-5/8")
140mm
(5-3/8")
93mm
(3-5/8")
SURFACE
29mm
(1-1/8" DIA.)
199mm
(7-7/8")
3/4-14 MALE
N.P .T. INLETS
27mm
(1-1/16" DIA.)
2
PREPARE TUBE AND TEE ASSEMBLY
Prepare TUBE and TEE ASSEMBLY (1) to fit each VALVE (2).
Distance between valves should be between 10-1/2" and 12"
(center to center). If necessary, cut and/or bend TUBING
carefully. Make sure tube bend is close to the TEE (1) so
that it will not effect the compression joint at the
VALVE CONNECTION.
Remove COUPLING NUT (3) and FERRULE (4) from each
VALVE (2) and slide onto TUBING (5).
ADJ. 10-1/2 TO 12
NOTE VALVE inlets are 3/4-inch NPT male.
Certified to comply with ANSI A112.18.1
165mm to 305mm
(ADJ. 6-1/2 TO 12)
40mm
(1-5/8")
DIA.
32mm
(1-1/4" MAX.)
76mm
(3")
(C)
(H)
305mm
(12" MAX)
3
1
4
MOUNTING
SURFACE
2
M 9 6 5 6 2 3
208mm
(8-3/16")
53mm
(2-1/16")
38mm
(1-1/2" MAX.)
31mm
(1-3/16" DIA.)
5
3
4
