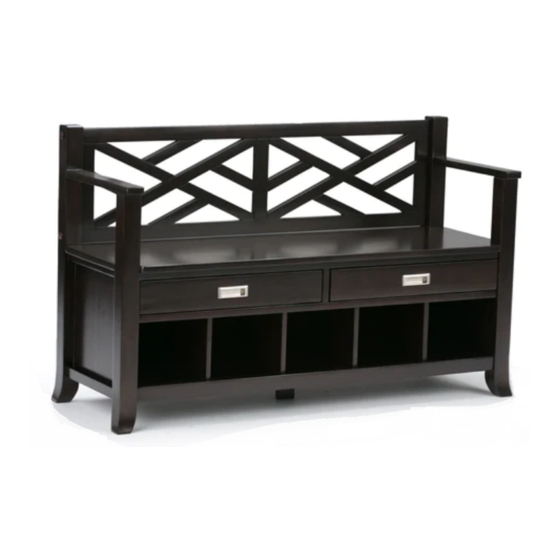

Entryway storage bench

Advertisement

Quick Links

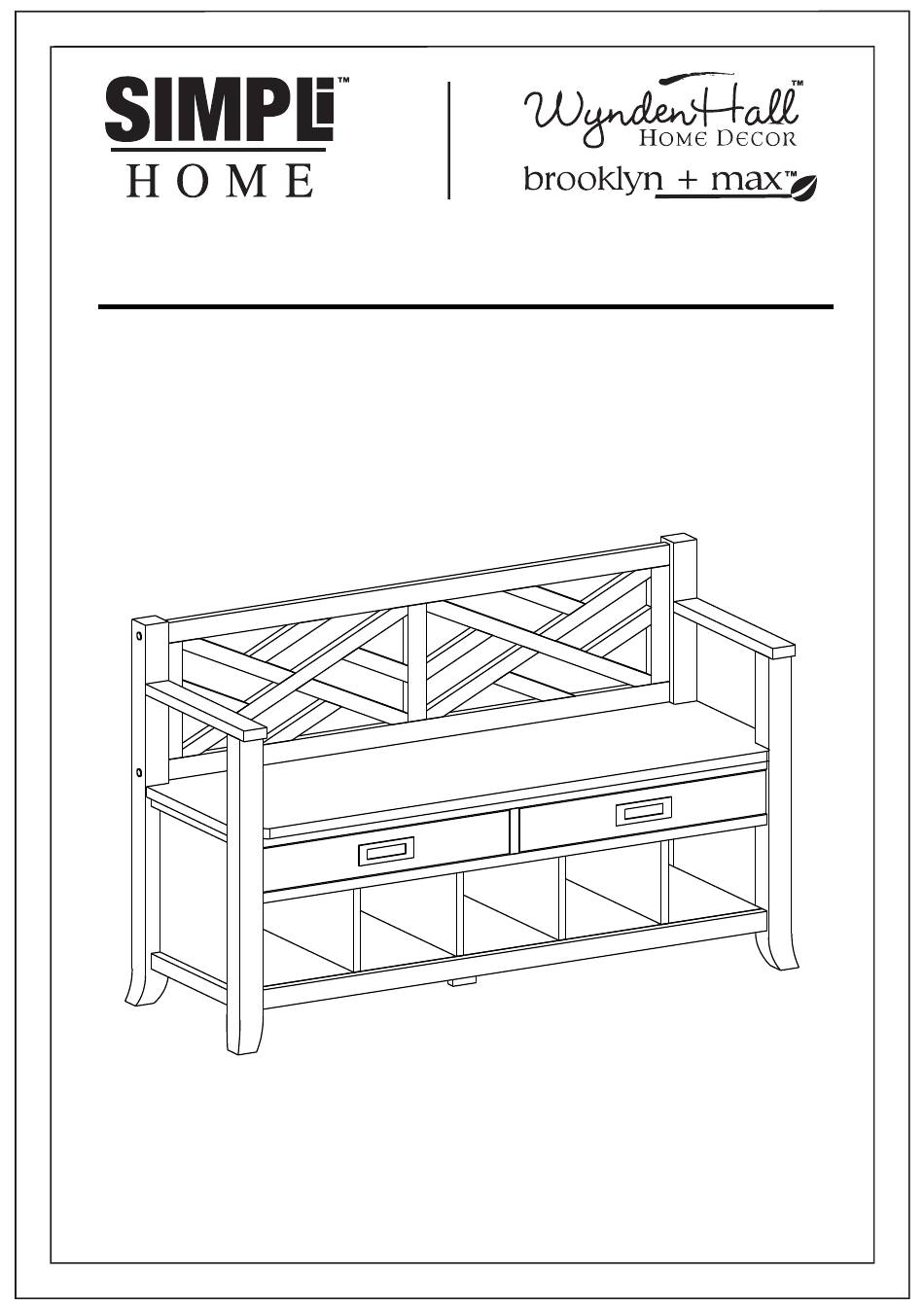

SEA MILLS / LANCASTER / DOVER
ENTRYWAY STORAGE BENCH
MODEL # INT-AXCSM-BNCH-EB
1/18

Advertisement

loading
Need help?

Need help?

Do you have a question about the WyndenHall Brooklyn+max Sea Mills and is the answer not in the manual?

Questions and answers

Summary of Contents for Simpli Home WyndenHall Brooklyn+max Sea Mills

  • Page 1 SEA MILLS / LANCASTER / DOVER ENTRYWAY STORAGE BENCH MODEL # INT-AXCSM-BNCH-EB 1/18...
  • Page 2 FOR REPLACEMENT PARTS OR HELP WITH ASSEMBLY PLEASE CONTACT US AT: simpli-home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET TO RETURN THE PRODUCT: PLEASE CONTACT THE RETAILER WHERE THE ITEM WAS PURCHASED FROM 2/18...
  • Page 3 ENTER TO WIN Upload an image of our furniture in your home with a short review to our facebook page for a chance to Win up to $3000 of Simpli Home furniture!!! www.facebook.com/simplihomefurnishings 3/18...
  • Page 4: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts.
  • Page 5: Pre-Assembly Information

    MODEL # INT-AXCSM-BNCH-EB PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION SIDE SEAT BOTTOM SHELF QTY 1 PAIR QTY 1 QTY 1 BOTTOM SUPPORT BACKREST BACK PANEL QTY 1 QTY 1 QTY 1 DIVIDER DIVIDER BOTTOM SUPPORT LEG QTY 1 QTY 4 QTY 1 DRAWER FRONT DRAWER SIDE DRAWER BACK...
  • Page 6 PRE-ASSEMBLY INFORMATION MODEL # INT-AXCSM-BNCH-EB HARDWARE DESCRIPTION ALLEN KEY SCREW CAM LOCK PIN M6 x 30 mm CAM LOCK ALLEN KEY QTY 22 QTY 8 SET QTY 1 PHILLIPS SCREW ROUND HEAD PHILLIPS SCREW ALLEN KEY BOLT M4 x 15 mm M4 X 30 mm M6 x 50 mm QTY 16...
  • Page 7 COMPONENTS – KEY DIAGRAM MODEL # INT-AXCSM-BNCH-EB 7/18...
  • Page 8 ASSEMBLY MODEL # INT-AXCSM-BNCH-EB STEP 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front J . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides K . 3. Insert 2 Cam Locks 2 into pre-drilled holes on each Drawer Side K . 4.
  • Page 9 ASSEMBLY MODEL # INT-AXCSM-BNCH-EB STEP 3 1. Align Drawer Back L with Drawer Sides K . 2. Attach back using 2 Allen Key Screws 1 through pre-drilled holes on each Side K . 2. Use Allen Key 3 to tighten screws. Do not over-tighten. Repeat Step 1-3 for the second drawer.
  • Page 10 ASSEMBLY MODEL # INT-AXCSM-BNCH-EB STEP 4 1. Insert 16 Wood Dowels 7 into 4 Dividers H ( 4 Dowels per each Divider ). 2. Use rubber mallet to tap Dowels 7 into bottom of holes securely. ½ length of dowels should be exposed. 3.
  • Page 11 ASSEMBLY MODEL # INT-AXCSM-BNCH-EB STEP 5 1. Insert 2 Dowels 7 into Bottom Shelf C and one Dowel 7 into Bottom Support D . 2. Use rubber mallet to tap Dowels 7 into bottom of holes securely. ½ length of dowels should be exposed.
  • Page 12 ASSEMBLY MODEL # INT-AXCSM-BNCH-EB STEP 6 1. Attach Divider G to Bottom Support D using 2 Allen Key Screws 1 . 2. Use Allen Key 3 to tighten screws. Do not over-tighten. 3. Attach Bottom Support Leg I to Bottom Shelf C using 4 Phillips Screws 9 into pre- drilled guide holes.
  • Page 13 ASSEMBLY MODEL # INT-AXCSM-BNCH-EB STEP 7 1. Attach Seat B to Side A and Divider G using 5 Allen Key Bolts 1 . 2. Use Allen Key 3 to tighten Screws. Do not over-tighten. 13/18...
  • Page 14 ASSEMBLY MODEL # INT-AXCSM-BNCH-EB STEP 8 1. Attach Backrest E to Side A using 2 Allen Key Bolts 6 . 2. Use Allen Key 3 to tighten Bolts. Do not over-tighten. 14/18...
  • Page 15 ASSEMBLY MODEL # INT-AXCSM-BNCH-EB STEP 9 1. Repeat Step 5, Step 7 & Step 8 for the second Side A . 15/18...
  • Page 16 ASSEMBLY MODEL # INT-AXCSM-BNCH-EB STEP 10 1. Attach Back F to back frame using 16 Phillips Screw Round Heads 4 . 2. Use Phillips screwdriver to snugly tighten screws. 3. Insert 4 Wood Bolt Caps 8 into exposed bolt holes on side of bench. STEP 11 1.
  • Page 17: Warranty

    WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
  • Page 18 Question, problems, missing parts? Before returning your product please email Customer Support at simpli-home.com/customer-support or call Customer Support at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 4 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings...
