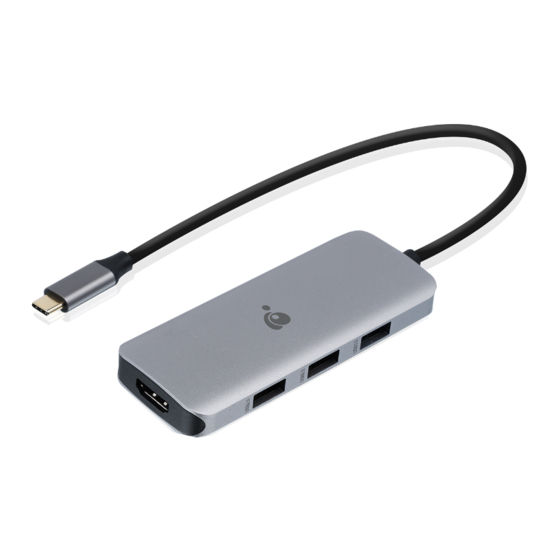

- Page 1 Quick Start Guide USB-C 8K Nano Dock Pro ™ ™ GUD3C8K2P PART NO. Q1650 www.iogear.com...
-
Page 2: Package Contents
Package Contents 1 x GUD3C8K2P 1 x Quick Start Guide 1 x Warranty Card System Requirements • USB-C™ compatible laptops with DP Alt-Mode support • USB-C AC Adapter from Laptop is needed for Power Delivery Pass-Through Function • Compatible with Thunderbolt™ 3 or 4 laptops •... - Page 3 Overview A. USB-C connector to host laptop B. USB-C PD Pass-through port (Up to 100W pass-through) C. HDMI 2 output (Up to 8K @30Hz)
- Page 4 D. HDMI 1 output (Up to 4K @30Hz) ® E. USB-A 2.0 port F. USB-A 2.0 port G. USB-A 3.0 port...
-
Page 5: Monitor Configuration
Monitor Configuration HDMI 1 macOS 3840x2160 @30Hz (DP 1.4 host) Win OS 3840x2160 @30Hz (DP 1.4 host) HDMI 2 macOS 7680x4320 @30Hz (DP 1.4 host) Win OS 7680x4320 @30Hz (DP 1.4 host) HDMI 1 macOS (mirror) 3840x2160 @30Hz (DP 1.4 host) Win OS (extended) 3840x2160 @30Hz (DP 1.4 host) Win OS (extended) -
Page 6: Hardware Installation
GUD3C8K2P recognizes the connected devices. Note 1. The GUD3C8K2P can still function without the external power adapter; however, the GUD3C8K2P would not provide power to charge the laptop 2. Please refer to monitor configuration table for resolution www.iogear.com... -
Page 8: Limited Warranty
Limited Warranty Warranty Information This product carries a 1 Year Limited Warranty. For the terms and conditions of this warranty, please go to https://www.iogear.com/support/warranty Register online at https://www.iogear.com/register Important Product Information Product Model ______________________ Serial Number ______________________... - Page 9 Contact WE’RE HERE TO HELP YOU! NEED ASSISTANCE SETTING UP THIS PRODUCT? Make sure you: 1. Visit www.iogear.com for more product information 2. Visit www.iogear.com/support for live help and product support IOGEAR https://iogear.custhelp.com support@iogear.com www.iogear.com...
-
Page 10: Compliance Information
Compliance Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
