Tyco Illustra Standard V Series Quick Start Manual

Illustra Standard V Series

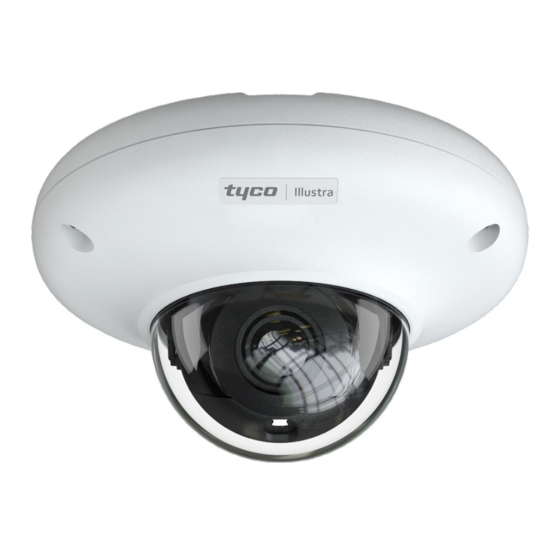

Indoor Dome Camera
ISV-D02V013S-N
Quick Start Guide
■ Please read this instruction carefully for correct use of the
product and keep it for further reference.
■ All the examples and pictures used here are for reference only.
■ The contents of this manual are
subject to change without notice.
1
Warning and Caution
■ If the product does not work properly, please contact your dealer
or the nearest service center. Never attempt to disassemble the
camera yourself. (We shall not be responsible for any problems
caused by unauthorized repair or maintenance.)
■ Keep away from liquid while in use.
■ In the use of the product, you must be strict compliance with the
electrical safety regulations of the nation and region. When the
product is mounted on wall or ceiling, the device shall be firmly
fixed.
■ Do not use camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Avoid touching the camera lens.
■ Please do not touch the camera directly. If cleaning is necessary,
please use clean cloth to wipe it gently.
■ Do not aim the camera at the sun or extra bright place.
■ Do not place the camera in extremely hot, cold (the operating
temperature shall be (-10˚C~40˚C), dusty or damp locations, and do
not expose it to high electromagnetic radiation.
■ To avoid heat accumulation, good ventilation is required for
operating environment.
2

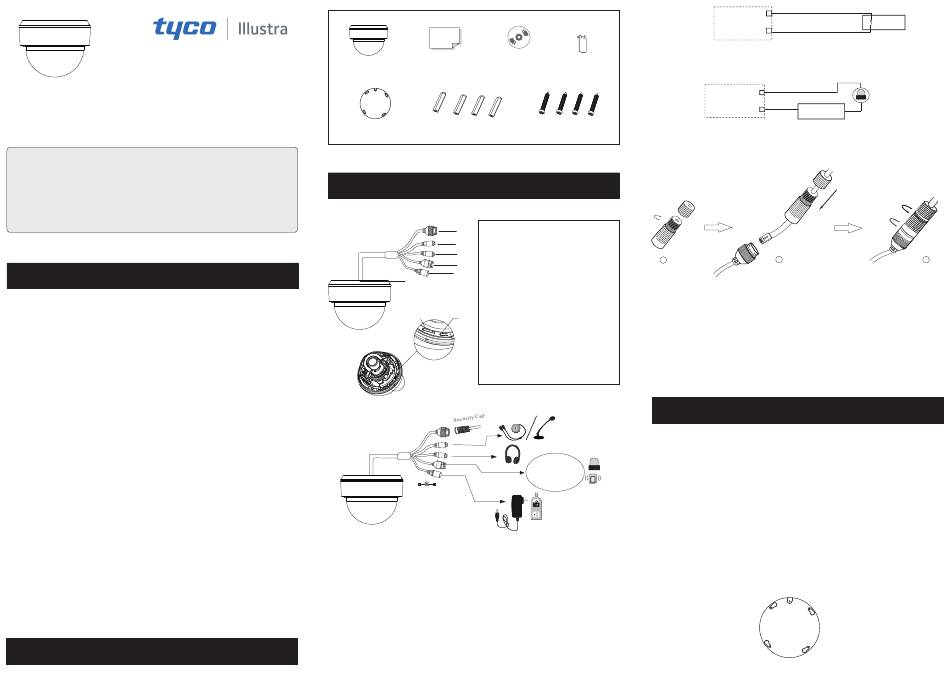

Package
Camera Quick start guide
Drill template ×4
Plastic plug
3
Overview
1
1 Ethernet connector
2
2 Audio input connector (MIC)
3
4
3 Audio output connector (HP)
5
6
4 Alarm input/output
5 DC12V Power connector
7
8
6 Microphone
7 Micro SD card slot
8 Reset
DC12V
* If the PoE switch is used to power the camera, DC12V power supply is not
required.
●
Connecting Alarm Input/Output
Alarm Input:
Alarm Output:
CD Unlocking key
IPC
4 tapping screws PA 4×35
●
Connecting Network Cable
1
① Loosen the nut from the main element.
② Run the network cable (without RJ 45 connector) through the
both elements. Then crimp the cable with RJ 45 connector.
③ Connect the cable to the hermetic connector. Then tighten the
nut and the main cover.
4
Installation
Before start, please make sure that the wall or ceiling is strong
enough to withstand 3 times the weight of the camera. Please install
1--ALM-COM
2--ALM-OPEN
and use the camera in the dry environment. You'd better install back
3--ALM-INA
4--ALM-GND
the lower dome less than 4 hours after removing it. The mounting
steps are as follows:
① Attach the drill template to the place where you want to fix the
camera and then drill 4 screw holes and 1 cable hole (if you want to
route the cables through the mounting base) according to the drill
template. Then insert the plastic plug into the holes.
ALARM-INA 3
IPC
4
ALARM-GND
+
1
ALARM-COM
Alarm
-
ALARM-OPEN 2
Power
+ -
2
Sensor
3
