Tyco IFS02-D12-ITA4 Quick Start Manual

Quick Start Guide
(8200-2076-01_A0)
Illustra Flex Gen4, 2MP, 4MP & 8MP Indoor Dome cameras
Note: Please visit illustracameras.com for access to firmware updates that include
new features, cyber-security enhancements and bug fixes.
In the box
• 1 x Flex Gen 4 Dome Camera
• 1 x Torx T10 Security L-Key
• 1 x Adaptor Plate (for use with pendant cap and electrical box)
• 3 x 18mm screws & 3 x Plastic screw anchors
• 2 x 8 mm screws (for use with the pendant cap)
• 1 x Desiccant bag
• 1 x Plastic side cover
• 1 x Waterproof cap
• 1 x Waterproof rubber insert
• 1 x Printed Regulatory Document & 1 x Printed QSG
• 1 x Mounting template sticker
Installation tools
• 1 x Screwdriver
• 1 x Drill
• 1 x Wire cutters

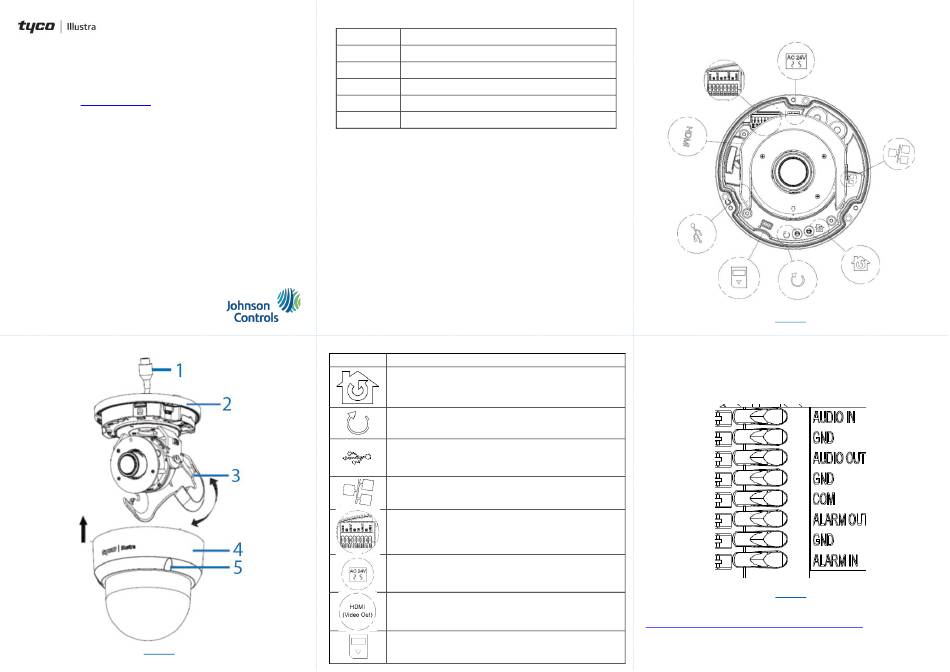

Figure 1: Flex Gen 4 Indoor Dome camera parts
Figure 1
Table 1: Flex Gen 4 Indoor Dome camera parts descriptions
Security
Number
1
2
3
4
5
Quick reference
•
Default IP: 192.168.1.168 (DHCP enabled)
•
Default Username / Password: admin / admin
•
Power: PoE Class 3 or 24V AC / 50-60Hz / 0.6A
Table 2: Camera interior buttons and I/O ports
Icon
Resets to factory default. Press and hold for five seconds
Description
Pre-Fitted RJ-45 cable
Camera bottom base
Tilt adjustment bracket
Bubble assembly
Captive screw (x3 located on the bubble assembly)
Description
Reboots the unit
Micro USB port connection
Power over Ethernet (PoE) port
Alarm / Audio pins (See Figure 3)
24V AC
HDMI Video out (requires HDMI cable, sold separately)
Micro SD card slot
Figure 2: Camera interior buttons and I/O ports
Note: Use the T10 security L-Key to unscrew the three screws (5) (Figure 1) on the
bubble assembly to access the interior buttons I/O ports.
Figure 2
Figure 2: Camera interior buttons and I/O ports (continued)
Note: Connectors and field wiring terminals for external Class 2 circuits
provided with marking indicating minimum Class of wiring to be used. Class 2
shall be marked adjacent to the field wiring terminals.
Figure 3: Alarm and audio pin definitions
Figure 3
Mounting the camera
Refer to the Illustra mounting accessories webpage
https://www.illustracameras.com/products/accessories/mounts
following mount accessory part numbers are applicable with the Illustra Flex Gen4
2MP, 4MP and 8MP Indoor Dome cameras: ADCi6DPCAPIW, IFDRECMNT,
ADLOMARM, ADCDMPOLE, ADCDMCRNRO, and IBJB-F-4NSD-A.
for assistance. The
