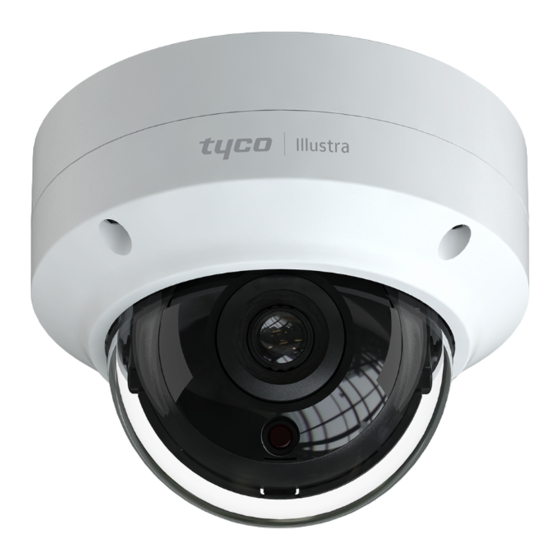

Tyco E Series Quick Start Manual

Illustra Standard Series
ISE-V05F284-N ISE-V05F283S-N
ISE-V05F364-N ISE-V05F363S-N
ISE-V04F284-N ISE-V04F283S-N
ISE-V04F364-N ISE-V04F363S-N Quick Start Guide
■ Please read this instruction carefully for correct use of the
product and keep it for further reference.
■ All the examples and pictures used here are for reference only.
■ The contents of this manual are subject to change without
notice.
1
Warning and Caution
■ If the product does not work properly, please contact your dealer
or the nearest service center. Never attempt to disassemble the
camera yourself. (We shall not be responsible for any problems
caused by unauthorized repair or maintenance.)
■ Do not allow water or liquid intrusion into the camera.
■ In the use of the product, you must be strict compliance with the
electrical safety regulations of the nation and region. When the
product is mounted on wall or ceiling, the device shall be firmly
fixed.
■ Do not use camera beyond specified voltage range.
■ Do not drop the camera or subject it to physical shock.
■ Avoid touching the camera lens.
■ If cleaning is necessary, please use clean cloth to wipe it gently.
If the device will not be used for a long time, please cover the lens
cap to protect the device from dirt.
■ Do not aim the camera at the sun or extra bright place.
■ Do not place the camera in extremely hot, cold (the operating
temperature shall be -30˚C~60˚C), dusty or damp locations, and do
not expose it to high electromagnetic radiation.
■ To avoid heat accumulation, good ventilation is required for
operating environment.
2

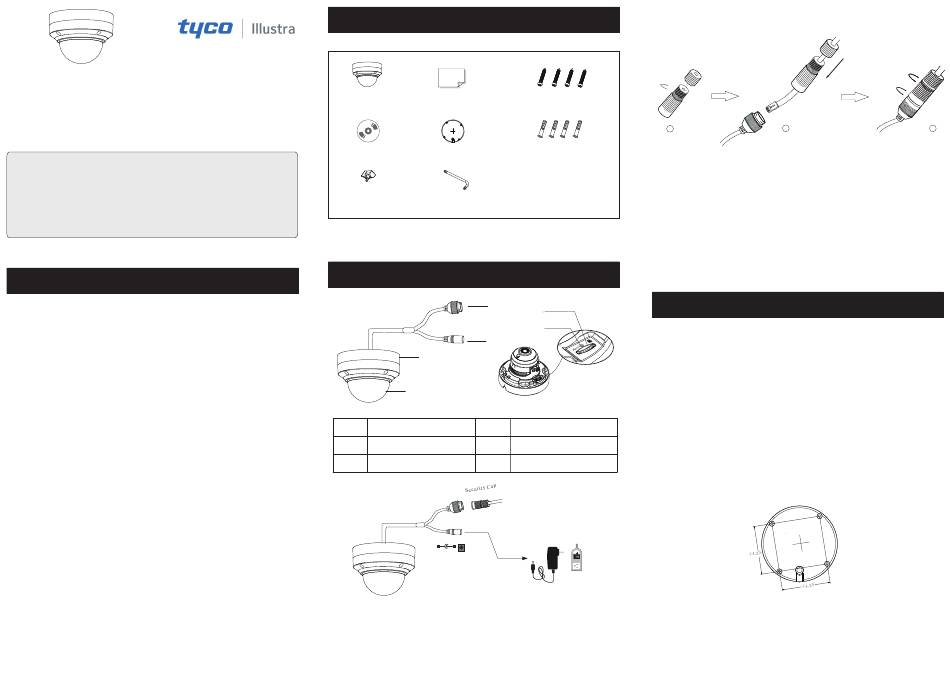

Package
E
Dome Camera
Camera
CD
Rubber plug
3
Overview
1
Lower dome
2 Mounting base
3 Network connector
* 1 It is recommended to install the security cap for outdoor installation.
* 2 If the PoE switch is used to power the camera that supports PoE power
supply, DC12V power supply is not required.
4 tapping screws
Quick start guide
Drill template ×4
Plastic plug
Screwdriver
3
5
6
4
2
1
Power connector
4
Micro SD card slot
5
6 Reset
DC12V
► Connecting Network Cable
1 2
① Loosen the nut from the main element.
② Run the network cable (without RJ 45 connector) through the
both elements. Then crimp the cable with RJ 45 connector.
③ Connect the cable to the hermetic connector. Then tighten the
nut and the main cover.
4
Installation
* Please make sure that the wall or ceiling is strong enough to
withstand 3 times the weight of the camera.
* Please install the camera in the dry environment. You'd better install
back the lower dome less than 4 hours after removing it.
* Do not directly touch the dome when installing.
* Do not remove the protection film until finishing the installation.
① Attach the drill template to the place where you want to fix the
camera and then drill the screw holes and the cable hole on the wall
according to the drill template.
(mm)
② Loosen the screws to remove the lower dome from the camera.
3
