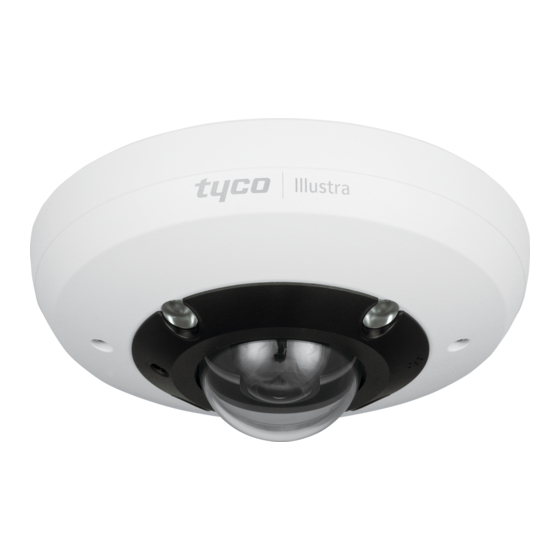

- Page 1 Tilt Mount Quick Start Guide Illustra Pro 12MP Fisheye Camera Illustra Pro 5MP Fisheye Camera Illustra Pro Gen 2 12MP Fisheye Camera 8200-1306-02 C0...
- Page 2 Under copyright laws, the contents of this manual may not be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine-readable form, in whole or in part, without prior written consent of Tyco Security Products. © 2020 Tyco Security Products. All rights reserved.
-
Page 3: Table Of Contents
What is in the Box ..............................4 Overview .................................. 4 Mounting the 12MP Pro Fisheye Camera ....................... 5 Mounting the 5MP Pro Fisheye Camera ......................6 Wall Box information ............................7 IPFETILTMOUNT Illustra Pro Fisheye Tilt Mount Template ................... 9... -
Page 4: What Is In The Box
What is in the Box The box contains the following items: 1. Tilt Mount IPFETILT MOUNT 2. Quick Start Guide 8200-1306-02 and Tilt Mount Mounting Template 3610-0619-01 3. Installation kit which contains the following items: Part Number Description 5810-4091-120 stap,4.2X32,PHP,S304,P,7981C 2880-0073-01 ANCH,TGL,NYLON,#8-#10SCR 2880-0050... -
Page 5: Mounting The 12Mp Pro Fisheye Camera
For the Pro 12MP Fisheye Outdoor camera, Illustra recommends sealing the cables as described in the Illustra Pro 12MP Fisheye Quick Start Guide. 6. To adjust the angle of the tilt on the tilt mount, loosen the locking screw at the bottom of the mount and slide the lock to the desired point on the slot. -
Page 6: Mounting The 5Mp Pro Fisheye Camera
Mounting the 5MP Pro Fisheye Camera To tilt mount the Illustra 5MP Fisheye camera, complete the following steps: 1. Unscrew the two M3 x 10 hex standoff screws on the tilt plate, using a Torx wrench. 2. Unscrew the three screws on the camera front cover using a Torx wrench, and remove the camera front cover. -
Page 7: Wall Box Information
Wall Box information Table 1. Wall Box Information describes how to attach the tilt plate to different wall box options. Figure 8 displays the location of the hole patterns. Figure 8. Tilt Mount with hole patterns... - Page 8 Box Type Description Sample Image US Single Gang Box Remove the tilt plate for fitting. Use two screws to secure the tilt plate to the box. Use hole pattern A. US Double Gang Box You do not need to remove the tilt plate. Use two screws from the four screws provided to secure the tilt plate to the box.
-
Page 9: Ipfetiltmount Illustra Pro Fisheye Tilt Mount Template
IPFETILTMOUNT Illustra Pro Fisheye Tilt Mount Template The tilt mount template below has been reduced 50%. The full size template document 3610-0619- 01Illustra-FE-Tilt-Mount_Template is included in the box and is available online. Figure 9 Tilt Mount Template...
