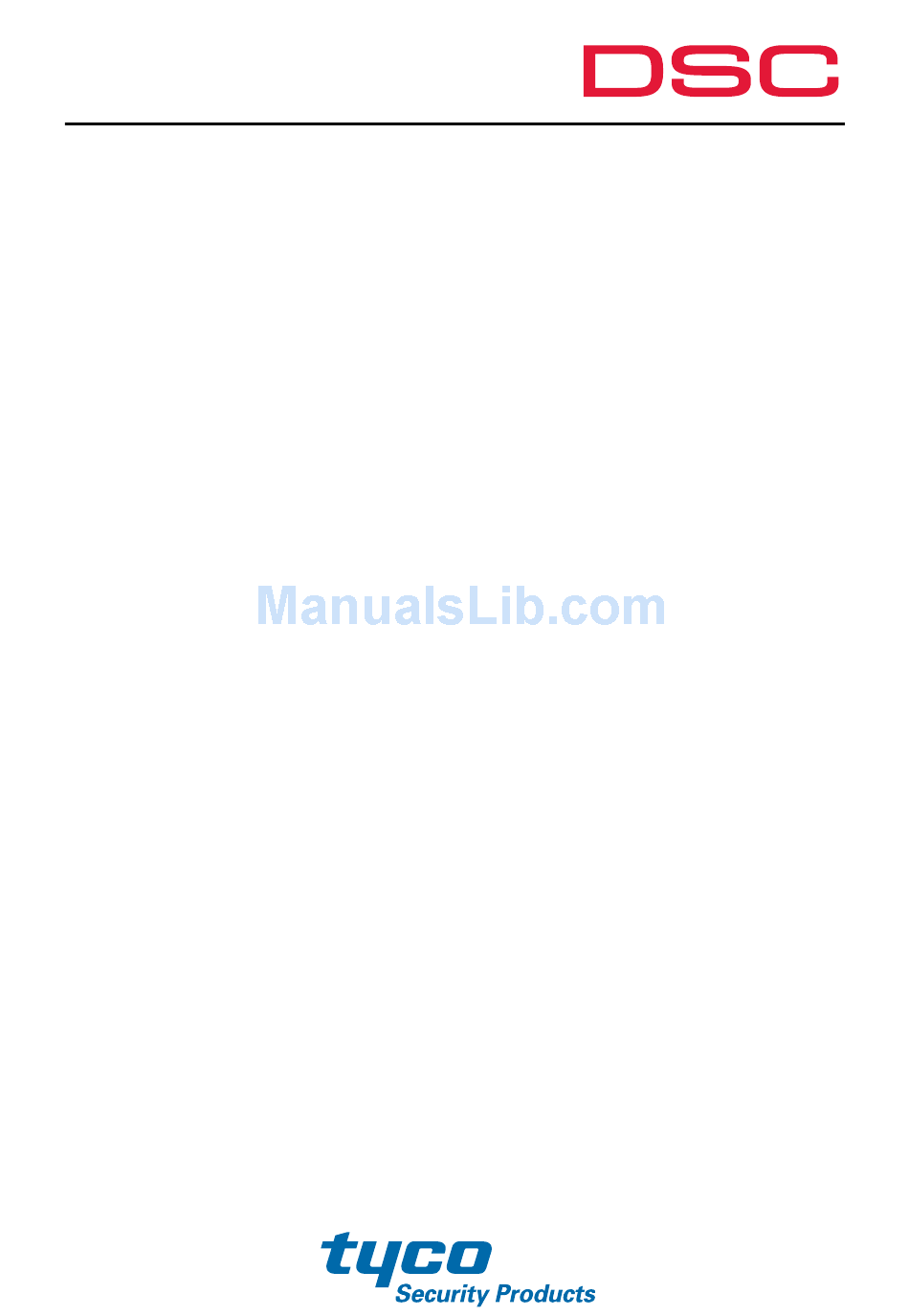

- Page 1 DSC-D114_Camera Quick Start Guide 8200-1116-02...
- Page 2 Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 3 product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info. 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union.
- Page 4 Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected. Cautions:Injury or equipment damage may occur if any of the cautions are neglected.
- Page 5 Please make sure that the plug is firmly connected to the power socket. When the product is mounted on wall or ceiling, the device shall be firmly fixed. If smoke, odor or noise rise from the device, turn off the power at once and unplug the power cable, and then please contact the service center.
- Page 6 To avoid heat accumulation, good ventilation is required for operating environment. Keep the camera away from liquid while in use. While in delivery, the camera shall be packed in its original packing, or packing of the same texture. Regular part replacement: a few parts (e.g. electrolytic capacitor) of the equipment shall be replaced regularly according to their average enduring time.
- Page 7 Table of Contents Overview ......................7 Installation ......................9 Accessing via Web Browser ................14...
- Page 8 Overview Figure 1-1 Overview...
- Page 9 Table 1-1 Physical Description Description Mounting Base Horizontal Stand Vertical Stand Bubble Cables IR Led Lens Black Liner Safety Rope...
- Page 10 Installation Before you start: Please make sure that the device in the package is in good condition and all the assembly parts are included. Make sure that all the related equipment is power-off during the installation. Check the specification of the products for the installation environment. ...
- Page 11 Figure 2-1 Drilling Template Loosen the set screws with a hex key (supplied) to remove the bubble. Figure 2-2 Remove the Bubble Connect the corresponding cables. If required, you can route cables through the side opening on the side of the mounting base.
- Page 12 Side Opening Figure 2-3 Side Opening Fix the mounting base tothe ceiling with screws. Figure 2-4 Fix the Mounting Base Adjust the surveillance angel. Loosen the tilt adjustingscrews, and adjust the tiltangel [0~65°], and tighten the tilt adjusting screws.
- Page 13 Hold the black linerand rotate it to adjust the pan position[0~360°]. Remove the black liner and rotate the camera to adjust the azimuthangle [0~360°]. Tilt Adjusting Screw Figure 2-5 3-axis Adjustment As the lens has already been factory adjusted to the best imaging effect, you just need to adjust the pan position and tilt position to get the desired surveillance angle.
- Page 14 Figure 2-6 Complete the Installation...
- Page 15 Accessing via WebBrowser System Requirement: Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 6.0 and above version, Apple Safari 5.02 and above version, Mozilla Firefox 3.5 and above version and Google Chrome8 and above version...
- Page 16 Figure 3-1 Login Interface Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in. You may have to close the web browser to finish the installation of the plug-in.
- Page 17 Figure 3-2 Download Plug-in Figure 3-3 Download Plug-in...
- Page 18 Figure 3-4 Install Plug-in Figure 3-5 Install Plug-in...
- Page 19 Reopen the web browser after the installation of the plug-in and repeat the above steps 2-4 to login. ● The default value of the IP address is “192.0.0.64”. The default user name is “admin”, and password is “12345”. ● For accessing the network camera from different subnets, please set the gateway for the network camera after you log in.
