TR 200
2

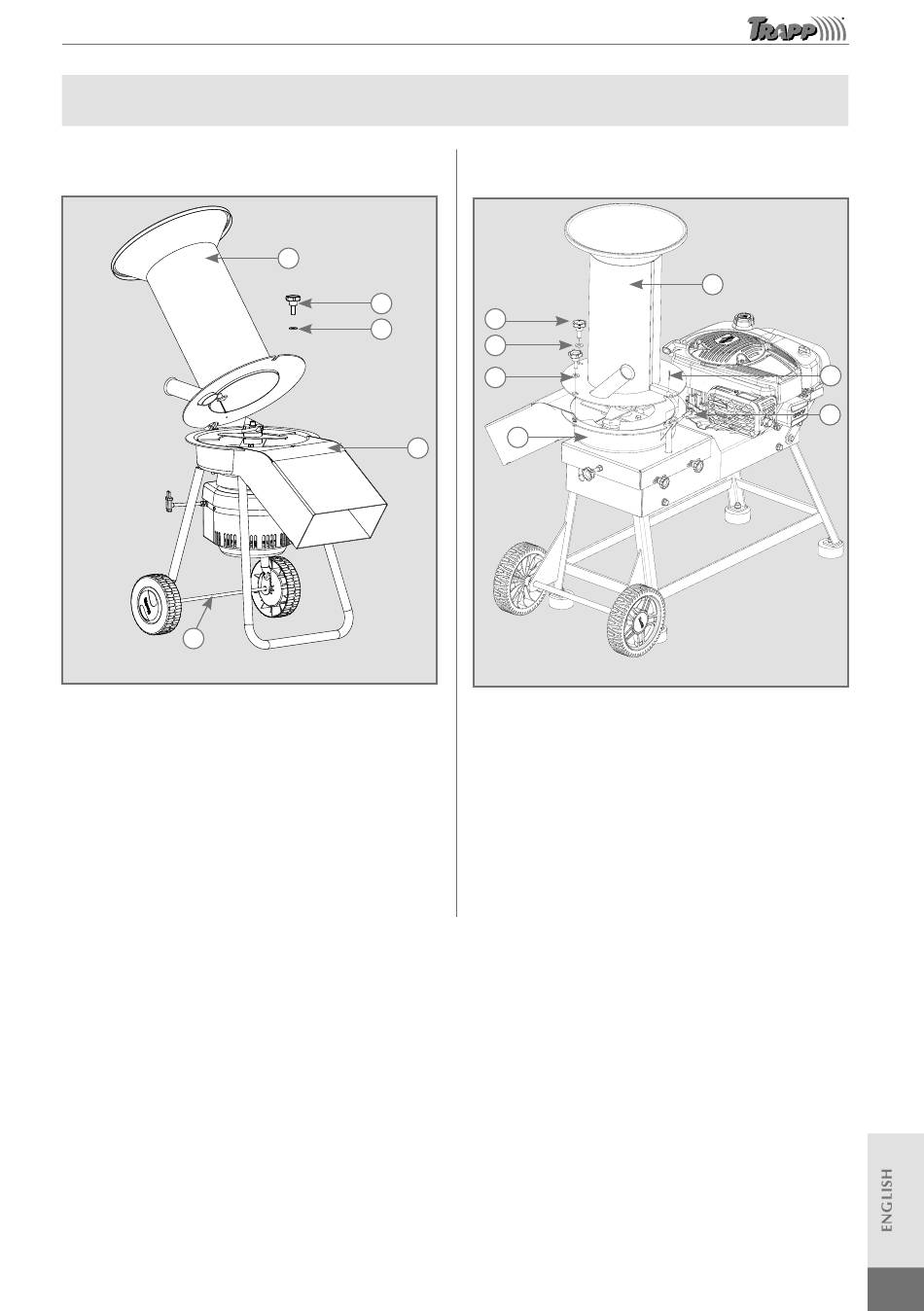

1. Turn the handle (3) counterclockwise until you
remove it with the flat washer (4).
2. Break the clamp connecting the feed hopper (1) to
the wheel axle (2).
3. Lift the feed hopper (1) until it touches the body
(5).
4. Replace the handle (3) and flat washer (4) by
turning clockwise until full tightening and locking.
Feeding Funnel Assembly
1
3
4
5
Image merely illustrative
TR 200G
7
6
5
2
1. Fit the feeding funnel (1) in the body (2), pass the
locking pin (3) through the holes of the feeding
funnel (1) and the body (2).
2. Fix the locking pin (3) with the cotter pin (4).
3. After that; lock the feeding funnel (1) using the flat
washer (5), spring washer (6) and the knob (7).
1
4
3
Image merely illustrative
25
