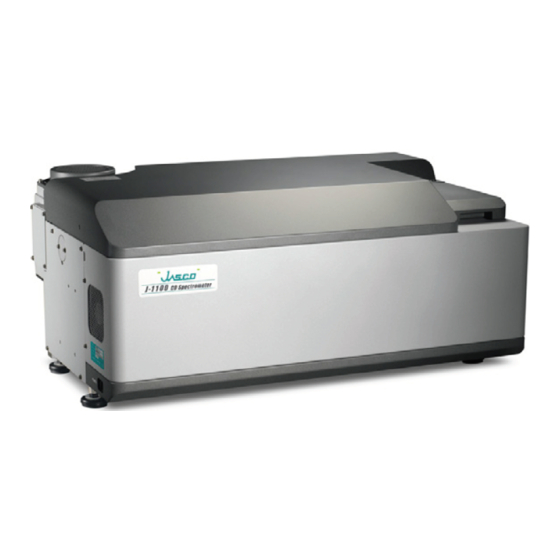

Jasco J-1100 Hardware/Function Manual

Cd spectrometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Model J-1100/1500
CD Spectrometer
Hardware/Function Manual
P/N:0302-3800H
April 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the J-1100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jasco J-1100

Summary of Contents for Jasco J-1100

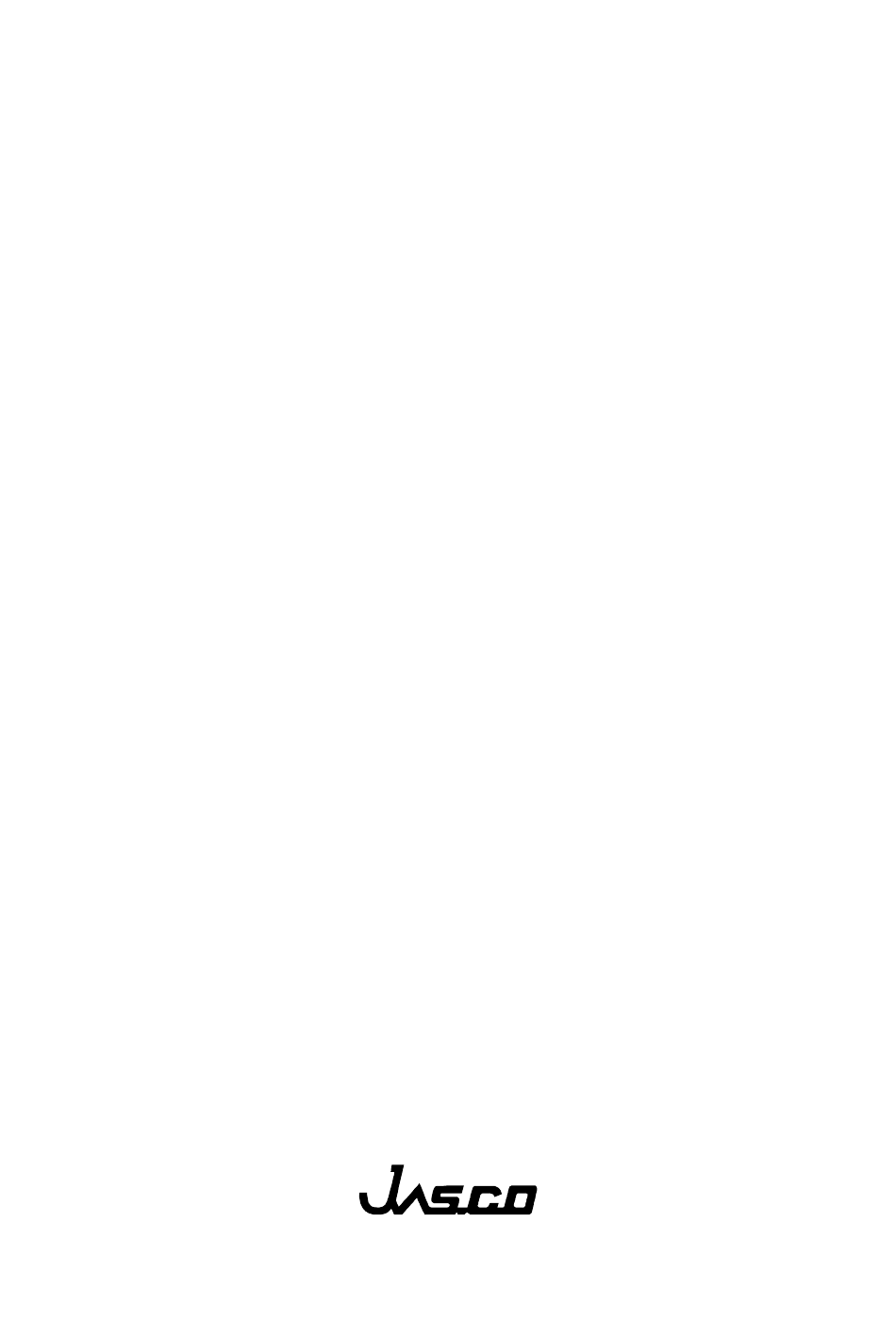

  • Page 1 Model J-1100/1500 CD Spectrometer Hardware/Function Manual P/N:0302-3800H April 2021...

  • Page 2: Safety Considerations

    Safety Considerations To ensure operation safety, this instrument must be operated correctly and maintained according to a regular schedule. Read carefully to fully understand all safety precautions in this manual before operating the instrument. To avoid injuries or health hazards, strictly follow the safety precautions mentioned in this manual.
  • Page 3 Warning labels are attached at several locations on this instrument. Do not remove, deface or damage the warning labels. If a warning label peels off the instrument or becomes illegible, contact your local JASCO distributor and state the part number of the label you want to replace.
  • Page 4 EU countries. Please do not throw the equipment into the domestic refuse. Please use the return and collection systems available in your country for the disposal of this product. Figure 2 Warning indications of Model J-1100 CD spectrometer...
  • Page 5 Figure 3 Warning indications of Model J-1500 CD spectrometer (150 W light source) Figure 4 Warning indications of Model J-1500 CD spectrometer (450 W light source)
  • Page 6 When carrying the instrument, hold firmly near the four legs (See Figure 5 or Figure 6). There are two legs on the other side. Figure 5 Carrying of Model J-1100 CD spectrometer There are two legs on the other side.

  • Page 7: Connecting The Power Cable

    Connecting the power cable WARNING!: The green/yellow ground core of the mains lead must be connected to a ground that complies with the local electricity supply authority (or equivalent body). The instrument is dangerous if not correctly grounded. 240 Volt (nominal) Supply 115 Volt (nominal) Supply Wire Color Green/Yellow...

  • Page 8: Preface

    Consumable parts should be ordered according to part number from your local JASCO distributor. If a part number is unknown, give your JASCO distributor the model name and serial number of your instrument.

  • Page 9: Installation Requirements

    Operate the instrument in humidity below 85% (RH). JASCO recommends operating the instrument in humidity below 60% to avoid the deterioration of the optical components due to the condensation caused by high humidity.

  • Page 10: Notices

    This manual does not guarantee the validity of any patent rights or other rights. If a JASCO software program has failed causing an error or improper operation, this may be caused by a conflict from another program operating on the PC. In this case, take corrective action by uninstalling the conflicting product(s).

  • Page 11: Limited Warranty

    Limited Warranty Products sold by JASCO, unless otherwise specified, are warranted for a period of one year from the date of shipment to be free of defects in materials and workmanship. If any defects in the product are found during this warranty period, JASCO will repair or replace the defective part(s) or product free of charge.

  • Page 12: Table Of Contents

    1.1.2 Principles of LD operation ................... 2 1.1.3 Optical system..................... 3 1.1.4 Electrical system ....................4 1.2 Specifications ......................6 1.2.1 Model J-1100 CD Spectrometer Specifications ........... 6 1.2.2 Model J-1500 CD Spectrometer Specifications ........... 7 2. Unpacking and Installation ................. 9 2.1 Unpacking ....................... 9 2.2 Reassembly ......................11...
  • Page 13 4.2 Wavelength Accuracy Check and Adjustment .............32 4.3 CD Scale Check and Adjustment ................34 4.4 LD Scale Check and Adjustment ................35 4.5 Replacement of Fuse .....................37 4.6 List of Consumable parts ..................38 5. Troubleshooting ....................39...

  • Page 14: Overview And Specifications

    1. Overview and Specifications 1.1 Overview 1.1.1 Principles of CD operation When linearly-polarized light passes through an optically-active substance, its two circularly polarized components (i.e. the right and left circularly polarized beams of light) travel at different speeds, and are absorbed in differing degrees by the substance. Thus, the light that passes through the substance is elliptically polarized, and the substance is said to have “Circular Dichroism (CD)”.

  • Page 15: Principles Of Ld Operation

    Thus, the ratio between I and S can be approximated with a sufficiently high accuracy for practical applications. If E and E represent the output voltages of photomultiplier tube corresponding to light intensities I and S, respectively, then S/I . By substituting this expression into equation (6), it can be expressed as follows: (1-7) If E...

  • Page 16: Optical System

    0.066△OD (when one window of the 45° quartz plate is used) at a wavelength of 500nm using a quartz plate tilted 45° with respect to incident light as sample. 1.1.3 Optical system A schematic diagram of the optical system of the Model J-1100/1500 CD spectrometer is shown in Figure 1.1. : Mirrors...

  • Page 17: Electrical System

    Therefore, once the AC signal has been calibrated using a standard sample, the correct CD and LD value can be determined. Figure 1.3 and Figure 1.4 show the block diagrams of the electrical system. J-1100 can get the signal from one detector and simultaneously measure CD/LD/Absorbance/HT voltage/DC voltage (up to four).
  • Page 18 Lock in Pre Amp Detector 1 Detector 1 Digital Lock in Filter Block AD Converter AD Converter Figure 1.3 Block diagram of electrical system (Model J-1100) Main IF Detector Memory Block USB module Control PMT Unit Lock in Pre Amp...

  • Page 19: Specifications

    1.2 Specifications 1.2.1 Model J-1100 CD Spectrometer Specifications Light source : 150 W air-cooled Xenon lamp Detector : Head-on photomultiplier tube PMT Modulator : Photoelastic modulator Measurement wavelength range : 180 to 600 nm : 0.2 nm from 180 to 250 nm Wavelength accuracy 0.4 nm from 250 to 500 nm...

  • Page 20: Model J-1500 Cd Spectrometer Specifications

    1.2.2 Model J-1500 CD Spectrometer Specifications Light source : 150 W air-cooled Xenon lamp or 450 W water-cooled Xenon lamp (factory-installed option) Detector : Head-on photomultiplier tube PMT Optional photomultiplier tube PMT Optional InGaAs Modulator : Photoelastic modulator Movable wavelength range : 163 to 1600 nm Measurement wavelength range : 163 to 950 nm 400 to 1250 nm (optional PMT detector)
  • Page 21 Mercury lamp : Used for the instrument inspection Shutter : Located the light source unit : 150 mm wide  310 mm deep  165 mm high Sample chamber Exists the water inlet/outlet ports Nitrogen gas purging : Atmosphere in the light source unit, monochromator unit, and sample chamber can be purged using dry nitrogen gas.

  • Page 22: Unpacking And Installation

    2. Unpacking and Installation WARNING!: This section is intended for trained JASCO servicemen. If the user attempts unpacking and installation, injury may result. Please leave unpacking and installation to your JASCO serviceman. CAUTION: Use this manual when you are unpacking/installing the instrument in conjunction with a JASCO serviceman’s instructions in the case of a...
  • Page 23 Table 2.2 List of Components for Model J-1500 CD spectrometer Q’ty Description Remarks J-1500 main unit Modulator element Detector unit Nitrogen gas tube 3m, OD8mm Leaked water outlet tube 1m, For sample chamber Cooling water tube 10m, ID12mm, For the 450 W light source Cooling water tube band For the 450 W light source Nitrogen purge case...

  • Page 24: Reassembly

    2.2 Reassembly 2.2.1 Removing the cushion from the main unit The cam and lever on the bottom of the main unit are separated by a cushion and secured with a rubber band to protect the cam from damage and prevent the wavelength from shifting during transit CAUTION: When removing the cushion, be careful not to knock the cam.

  • Page 25: Installing The Modulation Element

    Install the modulator element in the main unit after installing the main unit. Remove the amplifier unit cover from the main unit. Figure 2.4 Removing the amplifier unit cover (Model J-1100) Amplifier unit cover Pull Setscrew...
  • Page 26 Open the monochromator lid. Monochromator lid Lift Setscrew Figure 2.6 Opening the monochromator lid Mount the modulator element in the holder and mount it in the main unit. Solder the leads to the terminals. CAUTION 1: Be careful not to damage the modulator element or break the leads. CAUTION 2: Ensure that the leads do not come into contact with the holder, cover or with each other.

  • Page 27: Installing The Cell Holder

    Cover Figure 2.8 Mounting the modulator element (2) 2.2.3 Installing the cell holder Put the cell holder on top of the cell holder mount in the sample chamber. Cell holder Cell holder mount Figure 2.9 Mounting the sample holder...

  • Page 28: Installing The Nitrogen Purge Case And The Lid (Only Model J-1500)

    2.2.4 Installing the nitrogen purge case and the lid (only Model J-1500) Set the nitrogen purge pipe and holder to the light inlet in the sample chamber. Figure 2.10 Mounting the nitrogen purge pipe and holder Put the nitrogen purge case on top of the sample stage base (2). Nitrogen purge case Sample stage base (2) Figure 2.11 Mounting the nitrogen purge case...

  • Page 29: Installing The Detector Unit (Only Model J-1500)

    CAUTION 2: Do not expose the detector window to intense light. Note: Model J-1100 is not required to install the detector unit. Remove the cover from the detector mounting hole located in the right side panel of the main unit.

  • Page 30: Connecting The Cables And Tubes

    2.2.6 Connecting the cables and tubes Connecting the cables 1) Using a digital voltmeter, confirm that the supplied line voltage corresponds to the voltage shown on the rating plate. CAUTION: The line voltage must be confirmed. An outlet can provide an incorrect voltage due to faulty wiring.
  • Page 31 Connect a nitrogen gas cylinder (flow meter) to the nitrogen gas inlet using the tube (length: 3m, outside diameter: 8mm). CAUTION: Connect the nitrogen gas tube to the quick-fittings. Nitrogen gas tube Figure 2.15 Connection of the nitrogen gas tube (Model J-1100)
  • Page 32 Connect the tube to the leaked water outlet port. Connect the tube to the drain port, if necessary. Leaked water outlet tube Figure 2.17 Connection of the leaked water outlet tube (Model J-1100) Leaked water outlet tube Figure 2.18 Connection of the leaked water outlet tube (Model J-1500)

  • Page 33: Names And Functions Of Components

    Light source unit Amplifier unit Sample chamber Name plate Water ports Monochromator unit Leaked water outlet port “POWER” switch Figure 3.1 Model J-1100 overview Component Function Light source unit Houses the light source. Sample chamber Set sample. Amplifier unit Houses the amplifier and other elements.

  • Page 34: Rear Panel

    "USB" "AUX" "×1/×100" "Offset" Nitrogen gas inlet port Fuse “AC INPUT” Figure 3.2 Model J-1100 rear panel Component Function Nitrogen gas inlet port Connects the tube from a nitrogen gas cylinder (flow meter). “AC INPUT“ connector Power inlet receptacle. Fuse Fuses.

  • Page 35: Sample Chamber

    Sample stage base Water ports Sample stage setscrew Detector Water ports Leaked water outlet Nitrogen gas port Figure 3.3 Model J-1100 sample chamber Component Function Cell holder Sets the cell. Cell holder mount Sets the cell holder. Sample stage base Remove this when an optional accessory is mounted.

  • Page 36: Model J-1500

    3.2 Model J-1500 3.2.1 Overview Light source unit Amplifier unit Sample chamber Name plate Detector unit Water ports Monochromator unit Leaked water outlet port “POWER” switch Figure 3.4(a) Model J-1500 overview (150W light source) Component Function Light source unit Houses the light source. Sample chamber Set sample.
  • Page 37 Light source unit Amplifier unit Sample chamber Name plate Detector unit Water ports Monochromator unit Leaked water outlet port Light source cooling water outlet port “POWER” switch Light source cooling water inlet port Figure 3.4(b) Model J-1500 overview (450 W light source) Component Function Light source unit...

  • Page 38: Rear Panel

    3.2.2 Rear panel "Detector2" "Detector1" "I/O 2" "Acc. Info." I/O terminals "×1/×100" "EX port" "Offset" "ORDM" "USB" "I/O 1" "AUX" Nitrogen gas inlet port Fuse Nitrogen gas port “AC INPUT” Figure 3.5 Model J-1500 rear panel Component Function Nitrogen gas inlet port Connects the tube from a nitrogen gas cylinder (flow meter).
  • Page 39 'Ext2' terminal Input terminal for analog signal (-1 to 1 VDC). 'Ext1' terminal Input terminal for analog signal (-1 to 1 VDC). Changes over the “Ext2” terminal input voltage gain. Set it to "x1/x100" selector switch x100 to amplify the gain by a factor of 100. “Offset”...

  • Page 40: Sample Chamber

    3.2.3 Sample chamber Nitrogen purge case lid Accessory controlled connector Nitrogen purge case Nitrogen purge pipe and holder Water ports Nitrogen gas port Accessory recognition connector Cell holder Sample stage base (2) Cell holder mount Light shield plate Sample stage base (1) Figure 3.6 Model J-1500 sample chamber Component Function...

  • Page 41: Detector Unit

    3.2.4 Detector unit Lock screw Connector Figure 3.7 Model J-1500 detector unit Component Function Secures the detector unit to the main unit. Lock screw Connect to the “Detector1” connector located on the rear panel Connector of the amplifier unit.

  • Page 42: Maintenance

    4. Maintenance 4.1 Light Source Check and Replacement The service life of the xenon lamp is 300 to 500 hours, but it varies considerably from one lamp to another. It is therefore difficult to predict life expectancy from operating hours. It is generally predicted from the noise on the measured data.
  • Page 43 Light source cover Anode holder Light source Cathode adaptor Light source unit mirror mirror Figure 4.1 Light source replacement (150W light source) Anode holder Light source Light source unit mirror mirror Cathode cover Cathode fixing screw Figure 4.2 Light source replacement (450 W light source)
  • Page 44 In addition, for the Model J-1500, adjust the adjustment screws for the M mirror so as to minimize the value of HT voltage. Note: In case of Model J-1100, there is not the M mirror. Vertical adjustment screw Cover setscrew...

  • Page 45: Wavelength Accuracy Check And Adjustment

    4.2 Wavelength Accuracy Check and Adjustment Note1: Before checking wavelength accuracy, warm up the instrument for about one hour after turning the light source ON. Note2: Perform this check using the internal Hg lamp. <Procedure> Start up [Administrative Tools] program from [Spectra Manager] and turn on the Hg lamp.
  • Page 46 Using the [Spectra Analysis] program, verify that the peak wavelength of the DC spectrum is the following range.  546.1 0.8 nm (J-1100)  546.1 0.5 nm (J-1500) 546.1nm DC [V] Wavelength [nm] Figure 4.5 DC spectrum of the Hg emission line (546.1nm) If the peak wavelength does not fall within this range, adjust the adjustment screws on the wavelength lever.

  • Page 47: Cd Scale Check And Adjustment

    4.3 CD Scale Check and Adjustment Note1: Before checking the CD scale, warm up the instrument for about one hour after turning the light source ON. Note2: Use a 0.06% (w/v) aqueous solution of ammonium d-10-camphor sulfonate (10 mm cell) as the sample. <Procedure>...

  • Page 48: Ld Scale Check And Adjustment

    Figure 4.8 Adjustment of CD scale 4.4 LD Scale Check and Adjustment Note1: Before checking the LD scale, warm up the instrument for about one hour after turning the light source ON. Note2: Use a e as the sample. 45° quartz plat <Procedure>...
  • Page 49 Mount the 45° quartz plat in the sample chamber. Note: Set the light shield plate of sample chamber to 8mm diameter. (Plus placement) (Minus placement) Figure 4.9 45° quartz plat placement Measure sample spectra. Using the spectrum analysis program, confirm that the 500nm photometric value of LD spectrum.

  • Page 50: Replacement Of Fuse

    ① ② Figure 4.11 Adjustment of LD scale 4.5 Replacement of Fuse WARNING 1!: Only use fuses of the rated capacity to prevent injury to personnel and overheating of the instrument. WARNING 2!: To avoid electric shock, always turn off the power switch and unplug the AC power cable from the outlet before replacing a fuse.

  • Page 51: List Of Consumable Parts

    150 W Xenon lamp 5330-0014B 450 W mirror 1002-0268A For J-1500 mirror 1003-0285C For J-1100/1500 Standard sample 0730-0358 Ammonium d-10-camphor sulfonate, 1g Cooling water tube 0501-9002A For the 450 W light source Tube 0917-1015A ID3 x D5 x 1200 mm...

  • Page 52: Troubleshooting

    In this case, contact your local JASCO distributor with detailed information about your difficulty, including the model name, serial number, and date of manufacture of your instrument.
  • Page 53 Auto Is the HT voltage mode set correctly? Set (not Manual ). The noise level is high. Is the spectral bandwidth setting too Increase spectral small? (Model J-1500) bandwidth. Does the sample have high light Reduce sample absorption? concentration, or shorten the light path of the cell.
  • Page 54 Is air being blown on the instrument Install the instrument in a from an air conditioner or another location away from the direct source? path of air currents. Is the scanning speed too high? Slightly lower the scanning speed. Is the noise level too high? Increase D.I.T.
  • Page 56 JASCO Corporation 2967-5, Ishikawa-machi, Hachioji-shi TOKYO, JAPAN Printed in Japan...
