Paradox NV5 Installation Instructions

NV5 Installation Instructions
Please read all installation instructions before installing the unit.

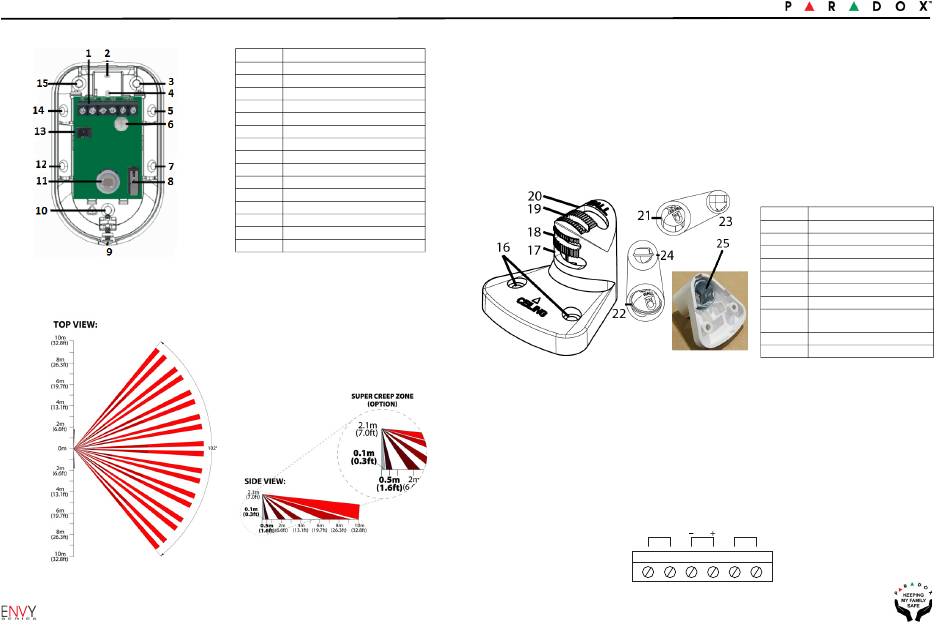

Figure 1: NV5 Back Plate
1. Select detector location using Figure 2 as a guide. The detector must be installed at
2.1m (7.0 ft) or higher.
Figure 2: Beam Pattern
Callout Description
1 Terminal board
2 Wire pass-through
3 Wall mount (knockout)
4 Bracket mount (knockout)
5 Corner mount (knockout)
6 Trimpot (sensitivity 1-5)
7 Corner mount (knockout)
8 Tamper switch
9 Locking screw
10 Wall mount (knockout)
11 Sensor
12 Corner mount (knockout)
13 Jumpers (profile/LED)
14 Corner mount (knockout)
15 Wall mount (knockout)
2. Loosen the locking screw (9), located at the bottom of the unit.
3. Separate the front cover from the back plate.
4. Separate the PCB board from the back plate
5. On the back plate drill holes for the wire pass-thru (2) and appropriate knockout holes.
For wall mount drill holes (3), (10) and (15).
For corner mount drill holes (5), (7), (12) and (14).
For bracket mount drill hole (4).
6. Secure back plate to surface.
For wall mount, pass wires through hole (2) of the back plate and secure with screws at
(3), (10) and (15).
For a corner mount, pass wires through hole (2) of the back plate and secure with
screws at (5), (7), (12) and (14).
Figure 3: SB100 Bracket Assembly Installation
For bracketed ceiling mount (with SB100), insert ceiling accessory (21) and orient as
per (23). Insert the Bracket Retainer (25).Pass wire from ceiling through(25),through
(17) and through hole (2) of the back plate. Secure bracket to ceiling with screws at
(16). Secure back plate with a screw at (4) onto bracket at (18).
For bracketed wall mount (with SB100), insert wall accessory (22) and orient as per
(24). Pass wire from wall through (25), through (20) and through hole (2) of the back
plate. Secure bracket to wall with screws at (16) Secure back plate with a screw at (4)
onto bracket at (19).
7. Snap the PCB board onto the back plate.
8. Connect wires to terminal board (1) as per Figure 4.
NV5-EI02 - 09/2019
Callout
16
17
18
19
20
21
22
23
24
25
ALARM OUTPUT
12 Vdc N.C.
N.C. COM BLK RED TAMPER
Figure 4: Terminal Board Wiring
Description
Bracket mounting holes
Wire pass-thru (ceiling)
Ceiling mount
Wall mount
Wire pass-thru (wall)
Ceiling Accessory
Wall Accessory
Ceiling Accessory
Orientation
Wall Accessory Orientation
Bracket Retainer
