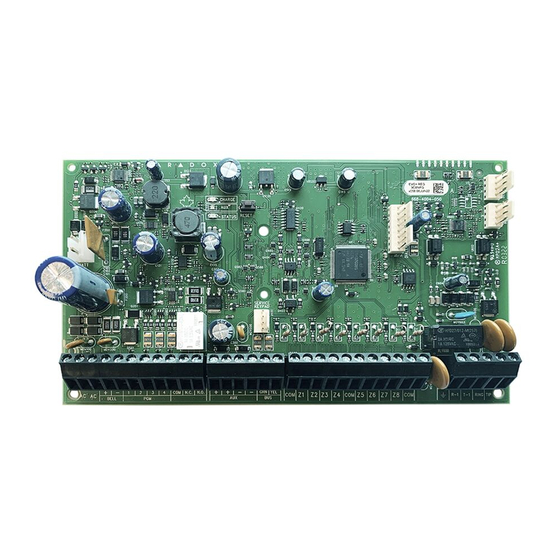

Paradox EVOHD+ User Manual

High security access system
Hide thumbs Also See for EVOHD+:
Table of Contents

Advertisement

Quick Links

Download this manual
EVOHD+
User Guide
V1.05 and higher
High Security Access System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVOHD+ and is the answer not in the manual?

Questions and answers

Related Manuals for Paradox EVOHD+

Summary of Contents for Paradox EVOHD+

  • Page 1 EVOHD+ User Guide V1.05 and higher High Security Access System...

  • Page 2: Warranty

    It must be understood that while your Paradox alarm system is highly advanced and secure, it does not offer any guaranteed protection against burglary, fire or other emergency (fire and emergency options are only available on certain Paradox models). This is due to a number of reasons, including by not limited to inadequate or improper installation/positioning, sensor limitations, battery performance, wireless signal interruption, inadequate maintenance or the potential for the system or telephone lines to be compromised or circumvented.

  • Page 3: Table Of Contents

    EVOHD+ User Guide Table of Contents Introduction .............................. 5 Legend .................................................5 Basic Operation Keypads K641+ Series ....................6 Confidential Mode ...........................................6 LED Assignments .............................................6 Auditory Feedback (Beep Tones) .......................................6 REM2 Feedback ............................7 Other Indicators ............................................7 Partitioned System ..........................8 Area Display ...............................................8 Arming ..............................
  • Page 4 EVOHD+ User Guide Calling the VDMP3 (outside line) ....................................27 Receiving a Call From the VDMP3 (alarm in system) ............................... 27 Burglar Alarm Testing .......................................... 27 Fire Alarm Testing ..........................................27 System Maintenance ........................................... 27 System Test ............................................. 27 Fire and Burglar Alarms ......................... 30 Standard Fire Zone ..........................................

  • Page 5: Introduction

    EVOHD+ User Guide Introduction Your EVOHD+ System is an advanced technology security system that will provide you with reliable security protection and powerful features that are easy to use. The elegant and user-friendly keypads will allow you easy access to your security system's functions and information at the touch of a button.

  • Page 6: Basic Operation Keypads K641+ Series

    EVOHD+ User Guide Basic Operation Keypads K641+ Series Confidential Mode Your installer can program keypads to hide the status of your system automatically by changing the keypad to Confidential Mode. In Confidential Mode: • The zones and status messages will NOT be displayed •...

  • Page 7: Rem2 Feedback

    EVOHD+ User Guide REM2 Feedback If your system includes the Wireless Zone Expansion module (RTX3), it will be able to support the Two-Way Remote Control (REM2). This remote allows you to change the status of the system, and it also provides visual and auditory feedback.

  • Page 8: Partitioned System

    EVOHD+ User Guide Partitioned System Your installer can set your keypad to recognize separate protected areas. A separated system is called a partitioned system, which can be useful in situations where shared security systems are more practical. For example, a company that has both an office and a warehouse area, can arm and disarm each area separately while controlling access to each area.

  • Page 9: Arming

    EVOHD+ User Guide Arming When your system is armed, it can respond to any breach in the protected zones by causing an alarm and sending a report to your monitoring station. Exit Delay Timer When you arm your system, it will trigger the Exit Delay Timer to provide you with enough time to exit the protected area before the system is armed.

  • Page 10: Force Arming

    EVOHD+ User Guide Force Arming Force arming allows you to quickly arm your system when zones are open. However, once the open zone is closed, your system will then arm that zone as well. To Force arm: 1. Enter your [ ACCESS CODE 2.

  • Page 11: One-Touch Buttons

    EVOHD+ User Guide 3. Press the [ ] button. Zones bypassed the last time your system was armed are bypassed. 4. Press the [ ] button to save and exit. ENTER One-Touch Buttons If enabled by your installer, you can access the following features without using your user access code by pressing and holding the desired One-Touch button.

  • Page 12: No Movement Auto-Arming

    EVOHD+ User Guide No Movement Auto-Arming Your system can be programmed to send a report to your monitoring station and/or arm the system if there is no activity in the area during a specified period of time. Your installer can set No Movement Auto-Arming to function in either Regular or Stay arming mode.

  • Page 13: Disarming

    EVOHD+ User Guide Disarming Entry Delay Timer Your installer will program designated entry points (e.g. the front door) with an Entry Delay Timer. This delay gives you time to enter the armed premises and enter your code to disarm your system before the alarm is triggered. Disarming an Armed System You can only disarm an area to which your user access code is assigned.

  • Page 14: Access Codes

    EVOHD+ User Guide Access Codes Access Codes allow access to the system. Your system supports up to 999 user access codes. Codes are given a User Number between 002 and 999 (User Number 001 is the System Master Code). Your installer will program user access codes to be four, six, or variables of one to six digits in length.

  • Page 15: User Labels

    EVOHD+ User Guide User Labels User labels personalize user access codes and can be assigned by pressing [ ] at any point after step 4 during the ENTER programming of user access codes (refer to Programming User Settings). For Example, LCD keypads can display John Smith Select Action.

  • Page 16: Special Function Keys

    EVOHD+ User Guide Special Function Keys ] = Insert Space STAY Pressing the [ ] key inserts a blank space in the current cursor position. STAY ] = Delete FORCE Pressing the [ ] key will delete the character or blank space found at the current cursor position. FORCE ] = Delete Until the End Pressing the [...

  • Page 17: Deleting User Access Codes

    EVOHD+ User Guide Table 6: Special Characters Catalogue A069 Polish Hungarian Turkish Deleting User Access Codes To delete user access codes, follow steps 1 to 4 in Programming User Settings, but press the [ ] button in Step 4. CLEAR Once the information is erased, press the [ ] button to save and exit.

  • Page 18: Programming User Settings

    EVOHD+ User Guide Programming User Settings Notes: - For a detailed description of the User Options, see User Options. - By default, all users can regular arm the system. Note: - For a detailed description of the Access Control, see Access Control User Options. User Labels on page 15.

  • Page 19: User Options

    EVOHD+ User Guide User Options Options [1] and [2]: Master Feature When option , the User cannot program other users into the system. When option and option , the user can program and modify user access codes (P.I.N. only) and User Labels.
  • Page 20 EVOHD+ User Guide Option [3]: Card with Extended Unlocked Period When option is ON, “Extended Unlocked Period” is enabled. “Extended Unlocked Period” refers to the time period programmed into each Access Control door by your installer that extends the unlocked time of the door. For example, if your installer sets the Unlocked period of the door to 30 seconds and the Extended Unlocked Period to 15 seconds, a user access code with “Extended Unlocked Period”...

  • Page 21: Using Access Control

    EVOHD+ User Guide Using Access Control Entering & Exiting Depending on how your system is installed and on the type of keypad, there are various ways to enter and exit Access Control doors: • Present your Access Control card to the reader or the K641R+ keypad. The system will verify that the card is allowed access according to its assigned Access Level and Schedule.
  • Page 22 EVOHD+ User Guide Bonnie’s Access Control card is programmed with Access Level 01 and Schedule 01. If she presents her card to the reader or the K641R+ keypad on Door 02 on Tuesday, August 3 at 3:00 p.m., she will gain access to the room. Figure 4 –...

  • Page 23: Trouble Display

    EVOHD+ User Guide Trouble Display Trouble Display If your system experiences any problems, Trouble(s) [TRBL] to View will appear on the screen, or the action light will illuminate. The Trouble Display will only display the troubles that occur in the area(s) to which the keypad has been assigned.

  • Page 24: Event Record Display

    EVOHD+ User Guide Event Record Display The Event Record Display will record the user-initiated actions that occurred in your system as well as any alarms or troubles (e.g. “Access Granted”). You will only be able to view the events that occurred in the area(s) assigned to your user access code.

  • Page 25: Additional Features

    EVOHD+ User Guide Additional Features Programmable Outputs (PGMs) Your system includes Programmable Outputs (PGMs) that can be programmed by your installer. A PGM triggers when a predetermined event or series of events occurs in your system. The PGMs can be programmed to reset smoke alarms, turn on light switches, open or close garage doors and much more.

  • Page 26: Programming Chime Zones

    EVOHD+ User Guide Programming Chime Zones You can program the keypad to emit a rapid, intermittent beep tone whenever designated zones are opened or only when opened between certain hours. These zones are referred to as Chime Zones. Your installer can also program your Chime zones to beep upon closure.

  • Page 27: Vdmp3 Plug-In Voice Dialer

    EVOHD+ User Guide VDMP3 Plug-In Voice Dialer The VDMP3 is a voice-assisted module that can be programmed to call up to 8 telephone numbers in the event of an alarm. You can also call the VDMP3 from an outside line, enabling you to arm or disarm the system as well as activate up to 8 PGMs.
  • Page 28 EVOHD+ User Guide To conduct the system test: 1. Call your monitoring station to advise them that you are testing your system. 2. Enter your [ ACCESS CODE 3. Press the [8] button. The system will test all its connections and can send a report to your monitoring station. If the system detects a problem, the Trouble Display will show on the keypad or touchpad screen.
  • Page 29 EVOHD+ User Guide...

  • Page 30: Fire And Burglar Alarms

    EVOHD+ User Guide Fire and Burglar Alarms Standard Fire Zone During a fire alarm, the bell/siren emits an intermittent sound ( ) until silenced or reset. If the zone is a BEEP BEEP BEEP Standard Fire Zone, your system can immediately send an alert to your monitoring station. The CMS will try to contact you.

  • Page 31: Minimizing Home Fire Hazards

    EVOHD+ User Guide Figure 7 – Delayed Fire Zone Minimizing Home Fire Hazards How can you avoid the three most common causes of fires at home? • Never leave cooking food unattended. It’s the leading cause of fire injuries. Cooking fires often result from unattended cooking and human error, rather than mechanical failure.

  • Page 32: Basic Operation Of The Touchpad Tm70/Tm50

    EVOHD+ User Guide Basic Operation of the TouchPad TM70/TM50 The touchpad is a versatile input device that lets you, the master user, along with other users, manage your system. This touchpad has a lot of the same capabilities as your BlueEye App. Management and configuration of the system through the touchpad can be restricted to users of your choice.

  • Page 33: Touchpad Security Functions

    EVOHD+ User Guide Touchpad Security Functions Home Screen Arm/ Enter Select Arming Security Menu Disarm code Method Functions Bypass Select Zones Zone View System View Status Areas View Select Zone Zones Zone(s) Chiming View Chime Troubles Trigger View Alarm Chime Memory Period View...

  • Page 34: Touchpad Personalize

    EVOHD+ User Guide Touchpad Personalize Home Screen Menu Area / Zone Personalize Labels Title Bar Info Title Bar Info Home Page Type Set slideshow Slide Show settings Set alarm Alarm Clock time/date Select Languages language Figure 12 – Personalize Touchpad User Codes Home Screen User Name...

  • Page 35: Touchpad Advanced Functions

    EVOHD+ User Guide Touchpad Advanced Functions Home Screen Setup Product Send Test Info Report Menu Special Stop Functions Communication Calibrate Call PC Advanced Screen Software Calibrate Answer PC Temp Software Upgrade Figure 14 – Advanced Functions Touchpad System Settings Home Screen Time &...

  • Page 36: Hebrew Special Characters

    EVOHD+ User Guide Appendix A Hebrew Special Characters Refer to the following tables when programming the user labels of a Hebrew LCD keypad, use Tables 9 and 10 below. Refer to User Labels on page 15 for information on programming user labels. Table 8: Hebrew Keypad Letter Assignment Table 9: Hebrew Special Characters Catalogue...

  • Page 37: Russian Special Characters

    EVOHD+ User Guide Russian Special Characters Refer to the following tables when programming the user labels of a Russian LCD keypad, use Tables 10 and 11 below. Refer to User Labels on page 15 for information on programming user labels. Table 10: Russian Keypad Letter Assignment Table 11: Russian Special Characters Catalogue A069...

  • Page 38: Greek Special Characters

    EVOHD+ User Guide Greek Special Characters Refer to the following tables when programming the user labels of a Greek LCD keypad, use Tables 12 and 13 below. Refer to User Labels on page 15 for information on programming user labels. Table 12: Keypad to Letter Insertion Press key three Press key once...

  • Page 39: Index

    EVOHD+ User Guide Index Brightness 35 Burglar Alarms 31 Fire 32 Buttons Delayed Fire Zone 30 Access Codes One-Touch 11 Minimizing Home Fire Hazards 31 Deleting 17 Quick Function 26 Safety Tips 30 Labeling 15 Bypass 32 Standard Fire Zone 30 Programming 17 Bypass Recall 10 Warning System 31...
  • Page 40 EVOHD+ User Guide Pictures 32 System Test 27 Viewing Police 32 Time, Set 25 Alarms In Memory 13 Power Failure, see Trouble Time, set 35 User Actions in Memory 24 Programmable Outputs (PGM) Timed Auto-Arming 11 Volume 35 Timer Programming Entry Delay 13 Zone Chiming 33 Chime Zones 26...
  • Page 41 The whole Paradox team wishes you a successful and easy installation. We hope this product performs to your complete satisfaction. Should you have any questions or comments, please contact us at support@paradox.com. Additional information can be found on our website www.paradox.com/support...
