Danfoss REPI Series Datasheet

Data sheet

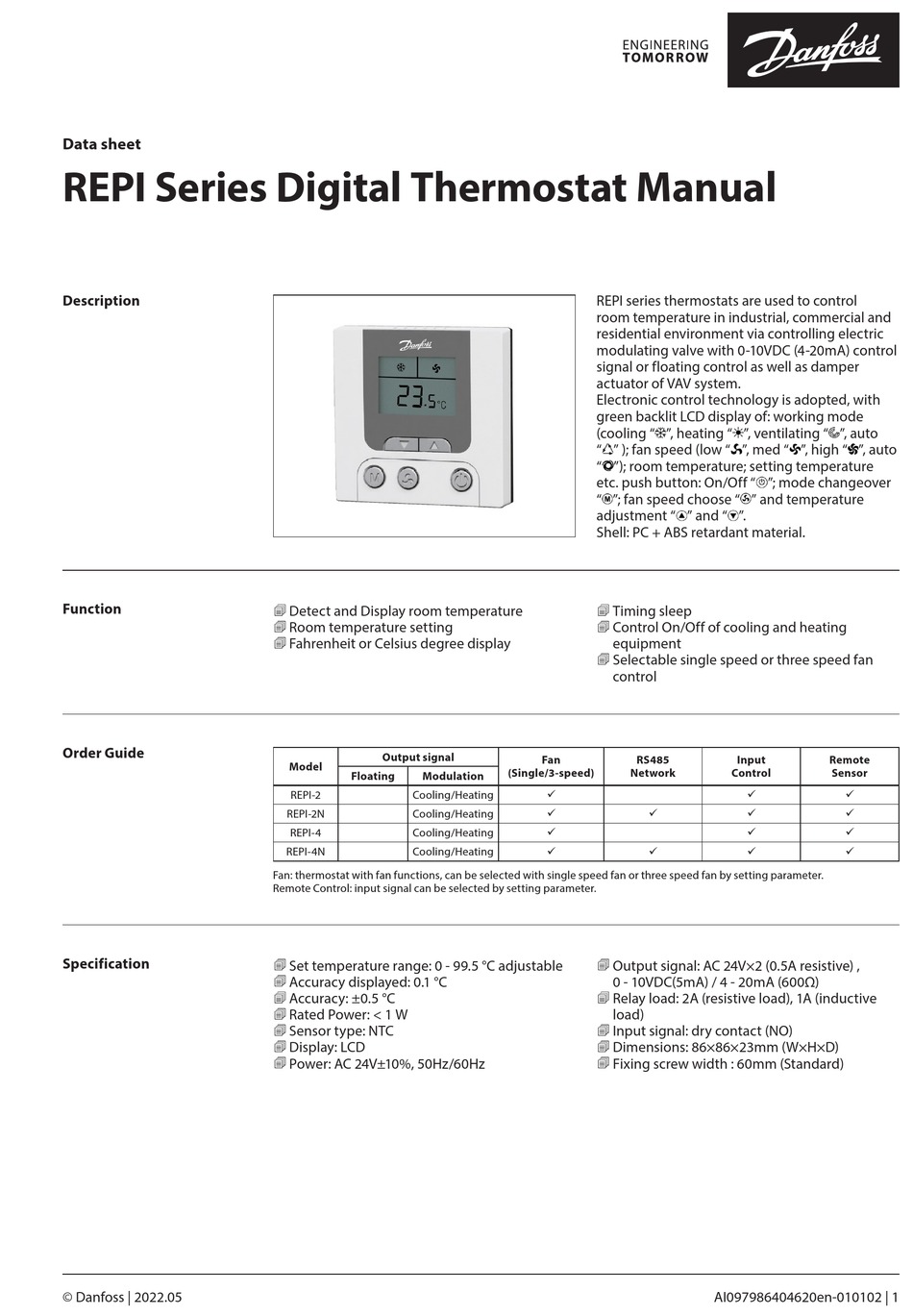

REPI Series Digital Thermostat Manual
Description
Function
Order Guide
Specification
© Danfoss | 2022.05
Detect and Display room temperature
Room temperature setting
Fahrenheit or Celsius degree display
Output signal
Model
Floating Modulation
REPI-2 Cooling/Heating
REPI-2N Cooling/Heating
REPI-4 Cooling/Heating
REPI-4N Cooling/Heating
Fan: thermostat with fan functions, can be selected with single speed fan or three speed fan by setting parameter.
Remote Control: input signal can be selected by setting parameter.
Set temperature range: 0 - 99.5 °C adjustable
Accuracy displayed: 0.1 °C
Accuracy: ±0.5 °C
Rated Power: < 1 W
Sensor type: NTC
Display: LCD
Power: AC 24V±10%, 50Hz/60Hz
REPI series thermostats are used to control
room temperature in industrial, commercial and
residential environment via controlling electric
modulating valve with 0-10VDC (4-20mA) control
signal or floating control as well as damper
actuator of VAV system.
Electronic control technology is adopted, with
green backlit LCD display of: working mode
(cooling " ", heating " ", ventilating " ", auto
" " ); fan speed (low " ", med " ", high " ", auto
" "); room temperature; setting temperature
etc. push button: On/Off " "; mode changeover
" "; fan speed choose " " and temperature
adjustment " " and " ".
Shell: PC + ABS retardant material.
Timing sleep
Control On/Off of cooling and heating
equipment
Selectable single speed or three speed fan
control
Fan RS485
(Single/3-speed) Network

 

 
Output signal: AC 24V×2 (0.5A resistive) ,
0 - 10VDC(5mA) / 4 - 20mA (600Ω)
Relay load: 2A (resistive load), 1A (inductive
load)
Input signal: dry contact (NO)
Dimensions: 86×86×23mm (W×H×D)
Fixing screw width : 60mm (Standard)
Input Remote
Control Sensor
 
 
 
 
AI097986404620en-010102 | 1
