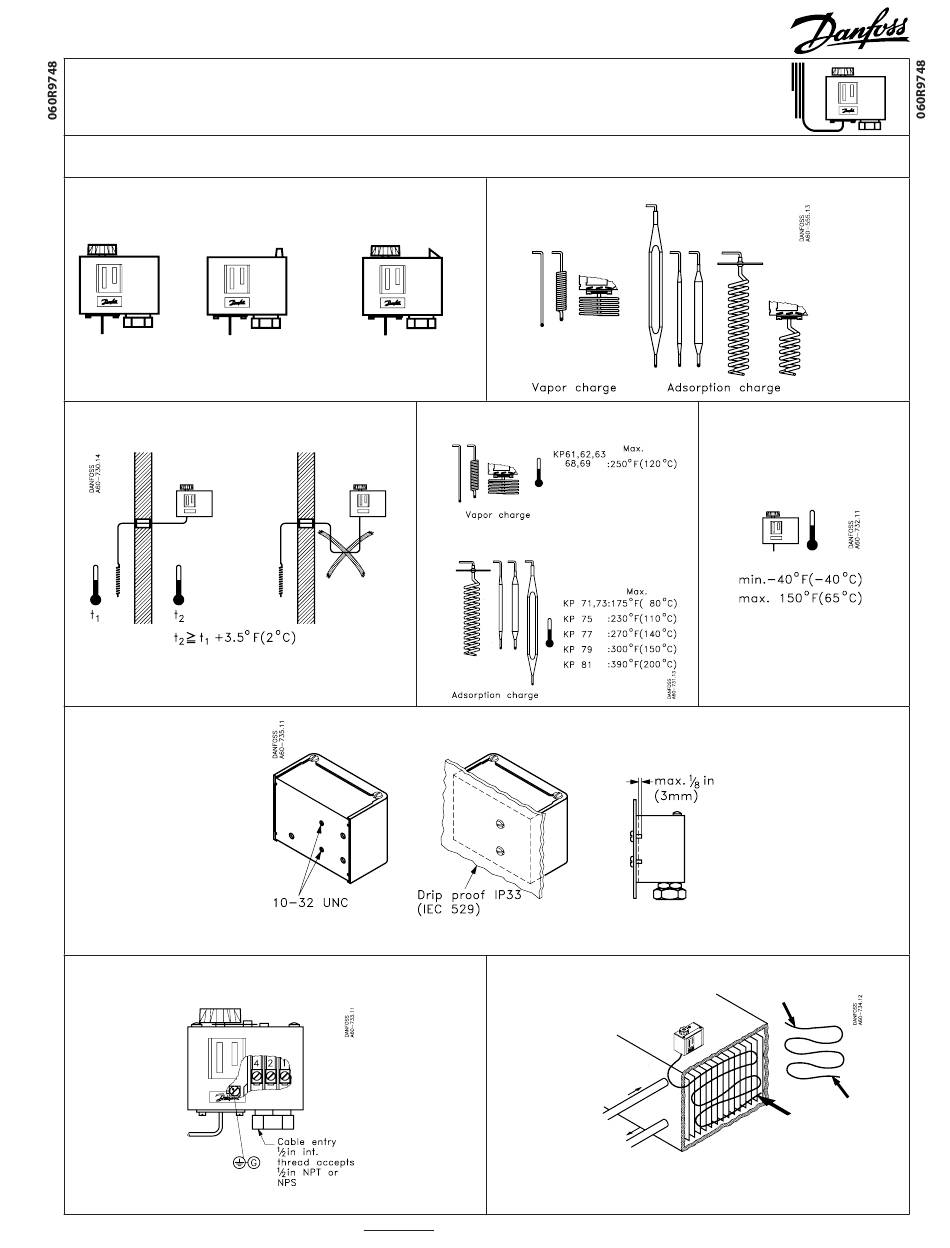

INSTRUCTIONS
KP 61, 62, 63, 68, 69 vapor charge
KP 71, 73, 75, 77, 79, 81 adsorption charge (cross ambient)
Types
Auto reset
Manual reset
(w/o hand knob)
Mounting requirement
Vapor charge
Enclosure
CAUTION: The mounting panel must be plane to avoid damage of control.
Cable entry
© Danfoss A/S
Pressure Controls
KP 61 → 81
Bulb types
Auto reset
w/ hand switch
Max. bulb temperature
Required cap. tube length on evaporator
80 in. cap. tube: min. 16 in.
196 in. cap. tube: min. 22 in.
RI.5D.A2.22 → DKRCC.PI.C0A.A1.22-520H2749
Ambient temperatures
1
Advertisement
Related Manuals for Danfoss KP Series
Summary of Contents for Danfoss KP Series
- Page 1 CAUTION: The mounting panel must be plane to avoid damage of control. Cable entry Required cap. tube length on evaporator 80 in. cap. tube: min. 16 in. 196 in. cap. tube: min. 22 in. RI.5D.A2.22 → DKRCC.PI.C0A.A1.22-520H2749 © Danfoss A/S...
- Page 2 Push manual reset knob during manual tripping. Manual reset To resume control operation after safety cut- out, push reset knob as indicated. Note: Man. reset is possible only after a temperature rise of fi xed diff erential (example 5.4°F) RI.5D.A2.22 → DKRCC.PI.C0A.A1.22-520H2749 © Danfoss A/S...
- Page 3 HSP – LSP = DIFF. 45°F – 35°F = 10°F (7°C) (5°C) (2°C) Note: (Load Option A) (Load Option B) CUT-IN = HSP or CUT-IN = LSP CUT-OUT = LSP CUT-OUT = HSP See “Wiring” RI.5D.A2.22 → DKRCC.PI.C0A.A1.22-520H2749 © Danfoss A/S...
- Page 4 • Cut out main switch before service on electrical parts Switch position Contacts position Aut. Automatic control operation μ Stop 1 and 2 are closed KP 61 060L2003 Vapor charge KP 73 060L2014 Adsorption charge RI.5D.A2.22 → DKRCC.PI.C0A.A1.22-520H2749 © Danfoss A/S...
