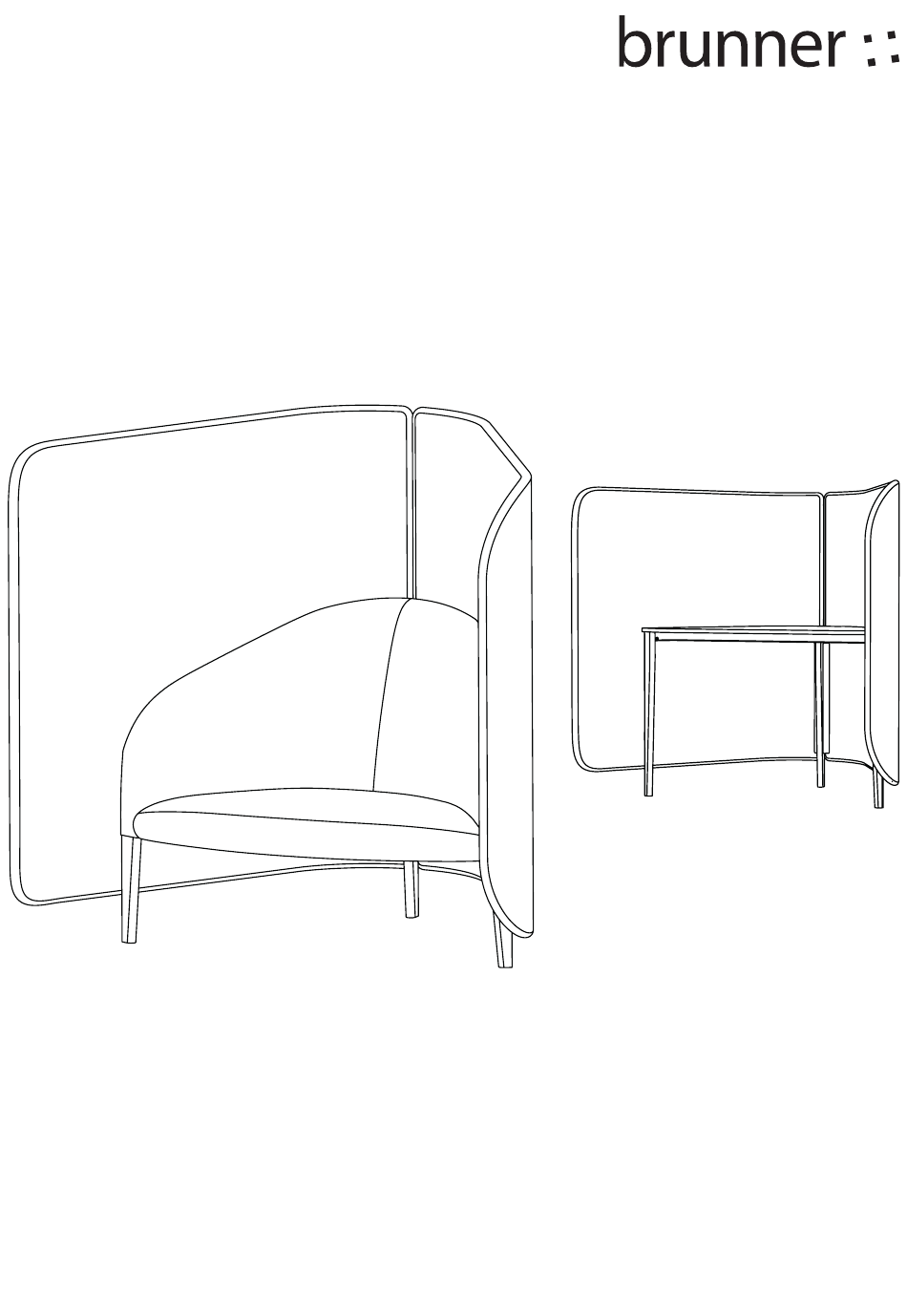

  • Page 1 Assembly instructions Design: Archirivolto...
  • Page 2 If upholstered easy chairs, work tables or standing tables are ordered with panel, the panel have to be mounted on site. These assembly instructions provide an explanation of all of the key components and will help you to assemble your cellular lounge furniture with ease.

  • Page 3: Table Of Contents

    CELLULAR ASSEMBLY INSTRUCTIONS Contents Lounge elements with panel Scope of delivery of upholstered furniture with panel Assembly instructions for upholstered easy chair and panel Scope of delivery of work table/standing table with panel Assembly instructions for work table/standing table with panel...

  • Page 4: Lounge Elements With Panel

    LOUNGE ELEMENTS WITH PANEL...
  • Page 5 SCOPE OF DELIVERY OF UPHOLSTERED EASY CHAIR WITH PANEL Included in scope of delivery: 12X 5X30 Spax screws 4X brackets 1X M5x35 screw 4X M5x16 screws 1X left-hand 1X right-hand panel panel 1X chair Lounge elements with panel | Scope of delivery of upholstered easy chair with panel 4 .
  • Page 6 ASSEMBLY INSTRUCTIONS FOR UPHOLSTERED EASY CHAIR WITH PANEL ASSEMBLY STEP 1 Hook the right-hand panel into the pre-assembled fixture on the right-hand side on the back of the upholstered easy chair, taking care not to press down. ASSEMBLY STEP 2 Then, hook the left-hand panel into the corresponding fixture on the left-hand side on the back of the upholstered easy chair, again taking care not to press down.
  • Page 7 ASSEMBLY INSTRUCTIONS FOR UPHOLSTERED EASY CHAIR WITH PANEL ASSEMBLY STEP 3 Gently push the top edges of the two panel apart and position the M5x35 screw in the corresponding thread in the left-hand panel. Tighten the screw accordingly. ASSEMBLY STEP 4 Lift the right-hand panel up slightly and hook the screw from the left-hand panel into the recess in the right-hand panel to attach them to one another.
  • Page 8 ASSEMBLY INSTRUCTIONS FOR UPHOLSTERED EASY CHAIR WITH PANEL ASSEMBLY STEP 5 Now push the two panel down so they are locked into position in the fixtures on the upholstered easy chair. ASSEMBLY STEP 6 Carefully tip the upholstered easy chair back together with the panel and place the furniture on a soft and clean surface, such as a blanket.
  • Page 9 ASSEMBLY INSTRUCTIONS FOR UPHOLSTERED EASY CHAIR WITH PANEL ASSEMBLY STEP 7 Push the panel to the side of the upholstered easy chair and align the bracket with the chair. Fasten the four brackets to the base of the upholstered easy chair using three 5x30 Spax screws for each. Make sure the first panel is fastened before moving on to the second panel.

  • Page 10: Scope Of Delivery Of Work Table/Standing Table With Panel

    SCOPE OF DELIVERY OF WORK TABLE AND STANDING TABLE WITH PANEL Included in scope of delivery: 4x m5x40 screw 6x m5x20 screws 1x m5x35 screw 2x cable channels for electrification 1x left-hand 1x right-hand panel panel or 1x table 1x standing table...

  • Page 11: Assembly Instructions For Work Table/Standing Table With Panel

    ASSEMBLY INSTRUCTIONS FOR WORK TABLE AND STANDING TABLE WITH PANEL ASSEMBLY STEP 1 Place the right-hand panel on a soft and clean surface, such as a blanket, and position the work table or standing table on top on its side. Align the frame with the top two screw-on points on the panel and fix in position on the panel using two M5x40 screws.
  • Page 12 ASSEMBLY INSTRUCTIONS FOR WORK TABLE AND STANDING TABLE WITH PANEL ASSEMBLY STEP 3 Position the M5x35 screw in the corresponding thread in the left-hand panel and tighten the screw accordingly. Now follow assembly steps 1 and 2 again to assemble the left-hand panel. With cable channel Without cable channel ASSEMBLY STEP 4...
  • Page 13 ASSEMBLY INSTRUCTIONS FOR WORK TABLE AND STANDING TABLE WITH PANEL ASSEMBLY STEP 5 To fasten the optional cable channel, simply hang the two strips along the rear table leg at the back on the right and left. Assembly instructions for work table and standing table with panel 12.

  • Page 14: Further Information

    GENERAL INFORMATION ABOUT ASSEMBLY The assembly instructions provide general guidelines for assembling your cellular furniture · The steps described are to be followed for all cellular chairs and tables · The assembly tools suggested are simply recommendations from Brunner GmbH ·...

  • Page 15: Imprint

    Some models are displayed as special versions that are subject to additional costs. Imprint Product design: Archirivolto Illustrations: Andreas Stapel . Brunner GmbH Text: Kerstin Lamprecht . Hanne Haaf . Brunner GmbH Design: Kerstin Lamprecht . Brunner GmbH...
